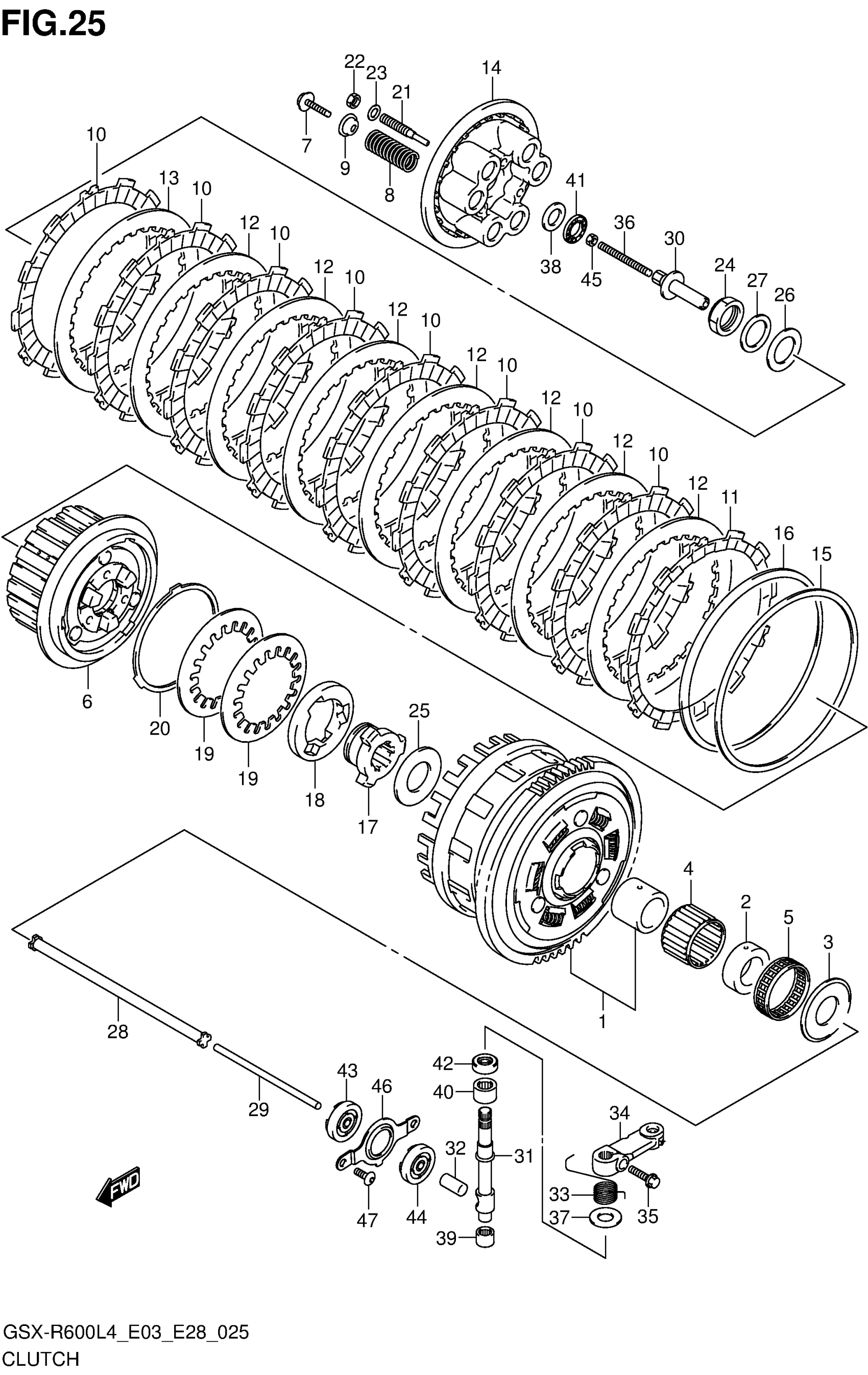

Suzuki GSX-R600L4 (2014) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-01830

$509.50

2

SPACER, OIL PUMP DRIVE

21253-01H10

$41.45

3

WASHER (25X54X2.4)

09160-25073

$14.50

4

BEARING (35X40X26.8)

09263-35015

$27.95

5

BEARING (35X40X12) (NT:77)

09263-35045

$22.75

6

HUB,CLUTCH SLEEVE

21410-41G30

$236.72

7

BOLT, CLUTCH SPRING

21412-06G00

$3.77

8

SPRING,CLUTCH

21413-01H10

$7.78

9

WASHER

21414-29F00

$6.25

10

.PLATE,CLUTCH DRIVE NO.1 (T:2

21441-36F50

$28.07

11

PLATE, CLUTCH DRIVE NO.3 (T:2.8)

21442-41G00

$28.07

12

PLATE, CLUTCH DRIVEN (T:2.0)

21451-41G10

$13.63

13

.PLATE,CLUTCH DRIVEN (T:1.6)

21451-41G30

$13.63

14

DISC,CLUTCH PRESSURE

21462-41G00

$78.55

15

.SEAT,WAVE WASHER

21471-41G00

$14.20

16

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$20.53

17

CAM,CLUTCH DRIVE

21611-41G30

$141.12

18

CAM,CLUTCH DRIVEN

21612-41G10

$119.18

19

WASHER,CAM REACTION WAVE

21621-41G00

$14.82

20

WASHER,CAM REACTION SEAT

21624-41G00

$15.53

21

LIFTER, CLUTCH PRESCURE DISC

21622-41G00

$10.50

22

NUT, CL PRESS DISC

21623-41G00

$2.61

23

SHIM (8.8X14X1)

09181-08139

$1.91

24

NUT

09159-24010

$13.22

25

.WASHER (25X50X2.5)

09160-25056

$11.61

26

WASHER

09164-24008

$4.60

27

WASHER (25X41X2.5)

09160-25077

$10.48

28

ROD, CLUTCH PUSH RH

23110-38B00

$23.19

29

ROD, CLUTCH PUSH LH

23111-35F00

$13.30

30

PIECE, CLUTCH PUSH

23121-41G00

$49.02

31

CAMSHAFT,CLUTCH RELEASE

23122-41G10

$59.07

32

CAP, CLUTCH PUSH ROD

23123-41G00

$10.93

33

SPRING, CLUTCH RELEASE

23125-41G00

$3.25

34

ARM, CLUTCH RELEASE

23271-41G21

$45.38

35

BOLT (6X20)

09103-06223

$2.47

36

SCREW (6X73)

09134-06015

$6.88

37

WASHER (10.5X24X1)

09160-10020

$2.05

38

WASHER (15.5X28X1)

09160-15045

$3.89

39

BEARING (10X14X10)

09263-10014

$13.52

40

BEARING (12X18X12)

09263-12027

$7.31

41

BEARING (15X28X2)

09263-15003

$8.29

42

OIL SEAL (10X20X6)

09282-10012

$7.98

43

OIL SEAL (6X34X10.5)

09283-06010

$16.80

44

OIL SEAL (10X17X5)

09285-10004

$3.37

45

NUT

08310-0006A

$1.84

46

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$7.32

47

SCREW (6X13)

09139-06153

$2.62
