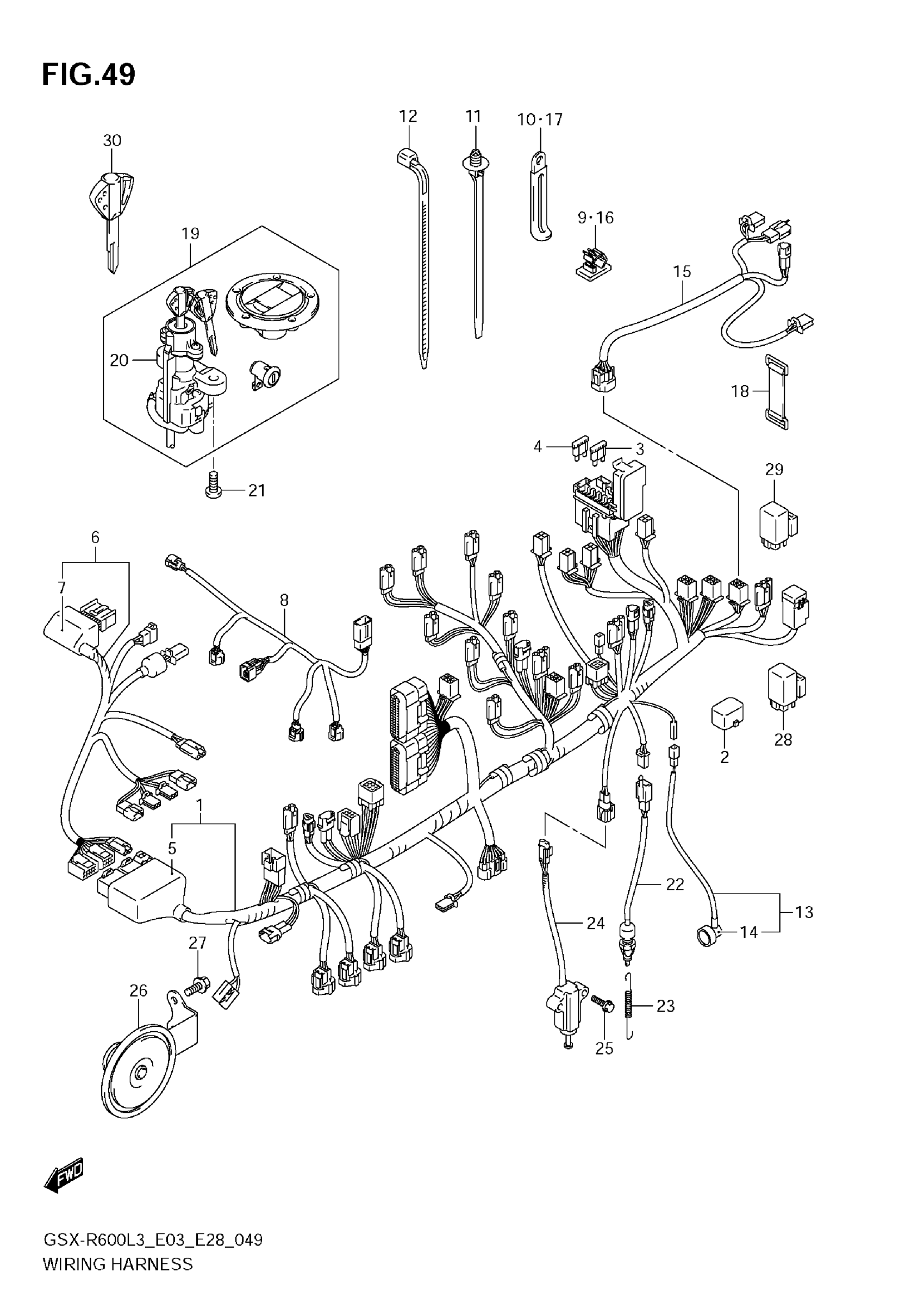

Suzuki GSX-R600L3 (2013) WIRING HARNESS (GSX-R600L3 E03) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-14JC0

$1,177.83

2

CAP,TS This part replaces 36654-06J00.

36654-06J01

$15.63

3

FUSE (10A)

09481-10501

$2.07

4

FUSE (15A)

09481-15501

$2.07

5

COVER, CONNECTOR

36618-18G00

Unavailable

6

HARNESS,WIRING NO.2 This part replaces 36620-14J10.

36620-14J11

$187.79

7

COVER, CONNECTOR

36618-47H00

$25.10

8

HARNESS,WIRING NO.3 This part replaces 36630-14J10.

36630-14J11

$233.15

9

CLAMP (L:95)

09407-11401

$2.87

10

CLAMP (L:145)

09407-14407

$2.80

11

CLAMP (L:154)

09407-17403

$4.63

12

CLAMP (L:125)

09407-14403

$2.24

13

WIRE,OIL PRESSURE SWITCH LEAD This part replaces 36851-14J00.

36851-14J01

$15.28

14

CAP, OIL PRESSURE SWITCH

36618-43410

$3.28

15

WIRE,RR COMB LEAD This part replaces 36859-14J00.

36859-14J01

$62.07

16

CLAMP This part replaces 09403-07315.

09403-04310

$5.82

17

CLAMP (L:45)

09404-06429

$1.82

18

BAND

09462-00033

$2.93

19

LOCK SET This part replaces 37101-40821.

37101-40824

$247.44

20

.LOCK ASSY,STEERING This part replaces 37100-41G11.

37100-41G12

$208.75

21

BOLT (8X20)

09139-08016

$3.04

22

SWITCH ASSY,STOP LAMP

37740-14J00

$30.43

23

SPRING

09443-06087

$4.45

24

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

$49.83

25

BOLT

01550-0620A

$1.97

26

HORN ASSY

38500-14J00

$98.98

27

BOLT

01550-0616B

$2.53

28

RELAY ASSY, FAN MOTOR

38740-24X50

$41.38

29

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

30

KEY,BLANK (IMMOBI) | OPT

37146-41G00

$39.40
