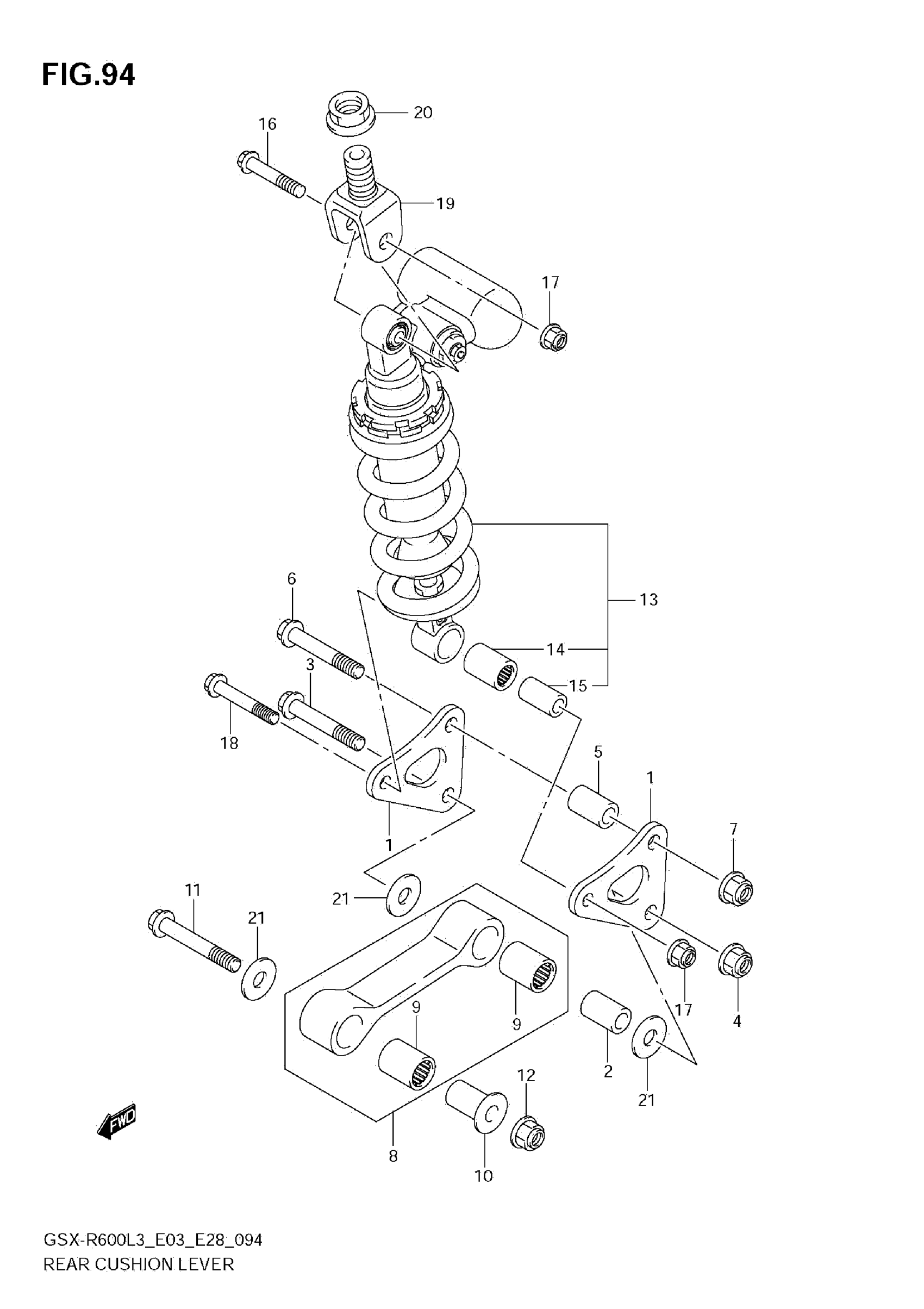

Suzuki GSX-R600L3 (2013) REAR CUSHION LEVER (GSX-R600L3 E33) Diagram

#

Description
Price

1

LEVER,RR CUSHION

62611-14J00

$26.62

2

SPACER, LOWER

62317-27C10

$16.76

3

BOLT, REAR CUSHION LEVER

62658-47H00

$10.75

4

NUT

09159-12056

$7.37

5

SPACER, UPPER

62317-44B00

$21.03

6

BOLT, REAR CUSHION LEVER

62658-47H00

$10.75

7

NUT

09159-12056

$7.37

8

ROD,RR CUSHION This part replaces 62602-14860.

62602-14861

$127.40

9

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

10

SPACER, ROD

62647-47H00

$35.28

11

BOLT,RR CUSHION ROD

62621-47H00

$14.27

12

NUT

09159-12056

$7.37

13

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-14820-019

Unavailable

14

BEARING (17X24X32)

09263-17046

$41.45

15

SPACER, RR SHOCK ABS LOWER

62317-47H00

$20.45

16

BOLT (10X55) | UPPER

09103-10143

$4.52

17

NUT

09159-10115

$3.55

18

BOLT, LOWER (10X55)

62313-47H00

$11.95

19

BRACKET,RR SHOCK ABSORBER UPR

62993-47H00

$135.35

20

NUT

62994-47H00

$42.02

21

WASHER (12X34X1)

09160-12037

$3.83
