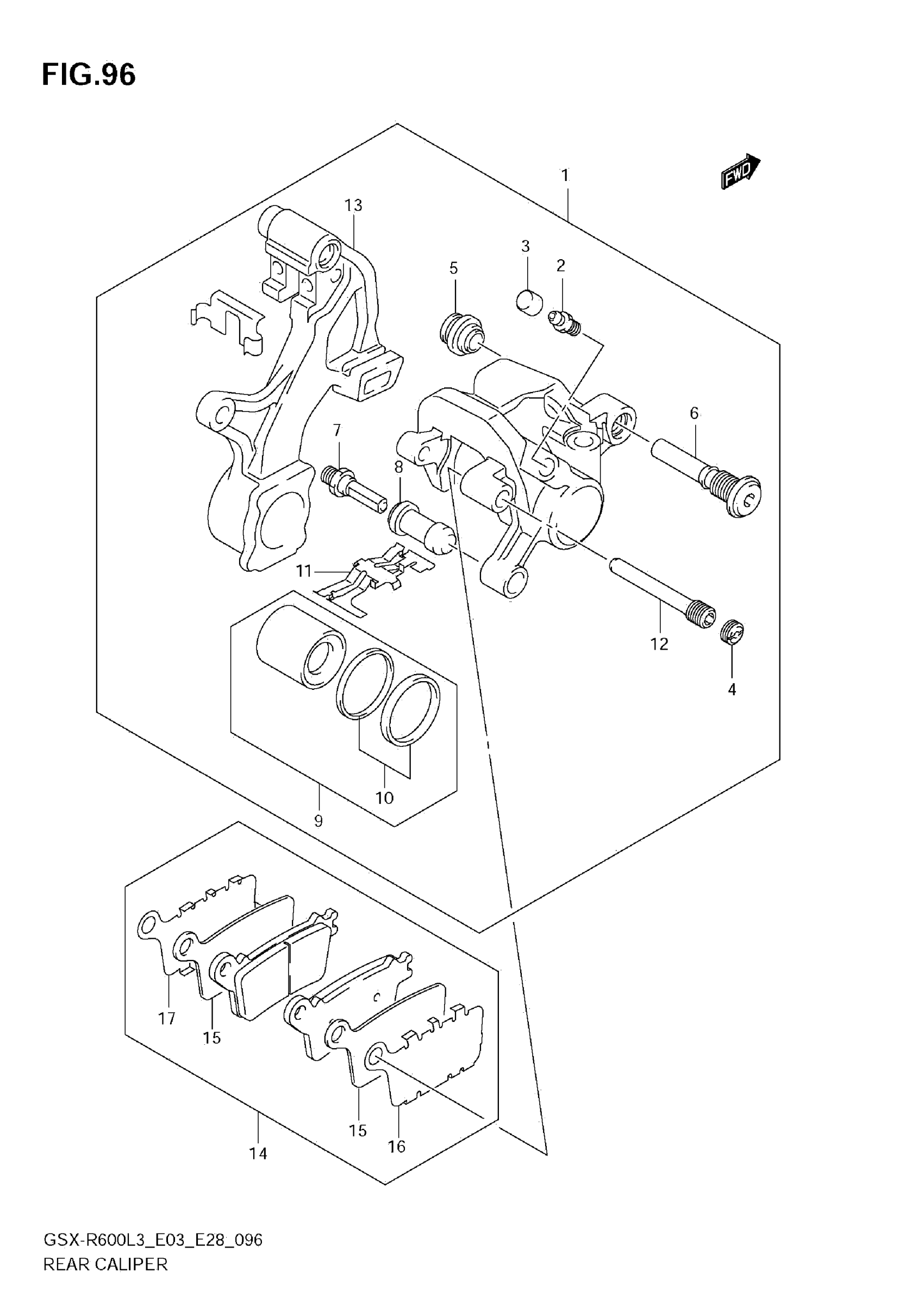

Suzuki GSX-R600L3 (2013) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,RR

69100-47H10-999

$500.10

2

BLEEDER

59121-01A00

$7.99

3

CAP, BLEEDER

59122-46H00

$4.17

4

PLUG, PIN

59146-21E10

$5.62

5

BOOT

59303-14500

$5.06

6

PIN, BOLT

59305-36E00

$17.14

7

PIN

59382-14500

$8.43

8

BOOT

59386-13A00

$7.28

9

PISTON SET

69100-47810

$144.31

10

SEAL SET, PISTON

69100-13810

$9.04

11

SPRING, PAD

69115-47H00

$13.57

12

PIN, PAD

69141-40F00

$27.76

13

.BRACKET,RR

69150-47H10

$119.43

14

PAD&SHIM SET

69100-47820

$45.54

15

INSULATOR

69132-47H00

$17.40

16

RETAINER, PAD

69133-47H00

$15.63

17

RETAINER, PAD

69134-47H00

$15.63
