Description

Price

1

TANK ASSY,FUEL (BLUE) | FOR AGQ

44100-14J32-YSF

$1,609.65

1

TANK ASSY, FUEL (RED) | FOR AGS

44100-14J32-YVZ

$1,637.35

1

TANK ASSY, FUEL (WHITE) | FOR AGT

44100-14J32-YWW

$1,291.92

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$108.21

3

BOLT (5X20)

09106-05017

$2.80

4

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

5

SCREW

44543-14J00

$7.95

6

FASTENER, COVER

44572-13G00

$10.13

7

CUSHION

09320-08071

$3.05

8

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

9

CUSHION,FUEL TANK RR

44542-41G00

$7.04

10

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

11

RUBBER,FUEL TANK FR

44546-44H00

$15.07

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

13

SPACER, TANK FRONT

44512-16G00

$6.80

14

SCREW (6X25)

09139-06192

$2.92

15

WASHER This part replaces 09160-06012.

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.21

17

SPACER, TANK REAR

44561-18G00

$15.52

18

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$23.47

19

HOSE,FUEL TANK BRTHR NO.1 This part replaces 44424-14J00.

44424-14J01

$10.87

20

HOSE,FUEL TANK BRTHR NO.2 This part replaces 44424-14J10.

44424-14J11

$10.02

21

HOSE,VACUUM This part replaces 44425-09E00.

44425-09E01

$12.73

22

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

23

3 WAY

09367-06007

$3.17

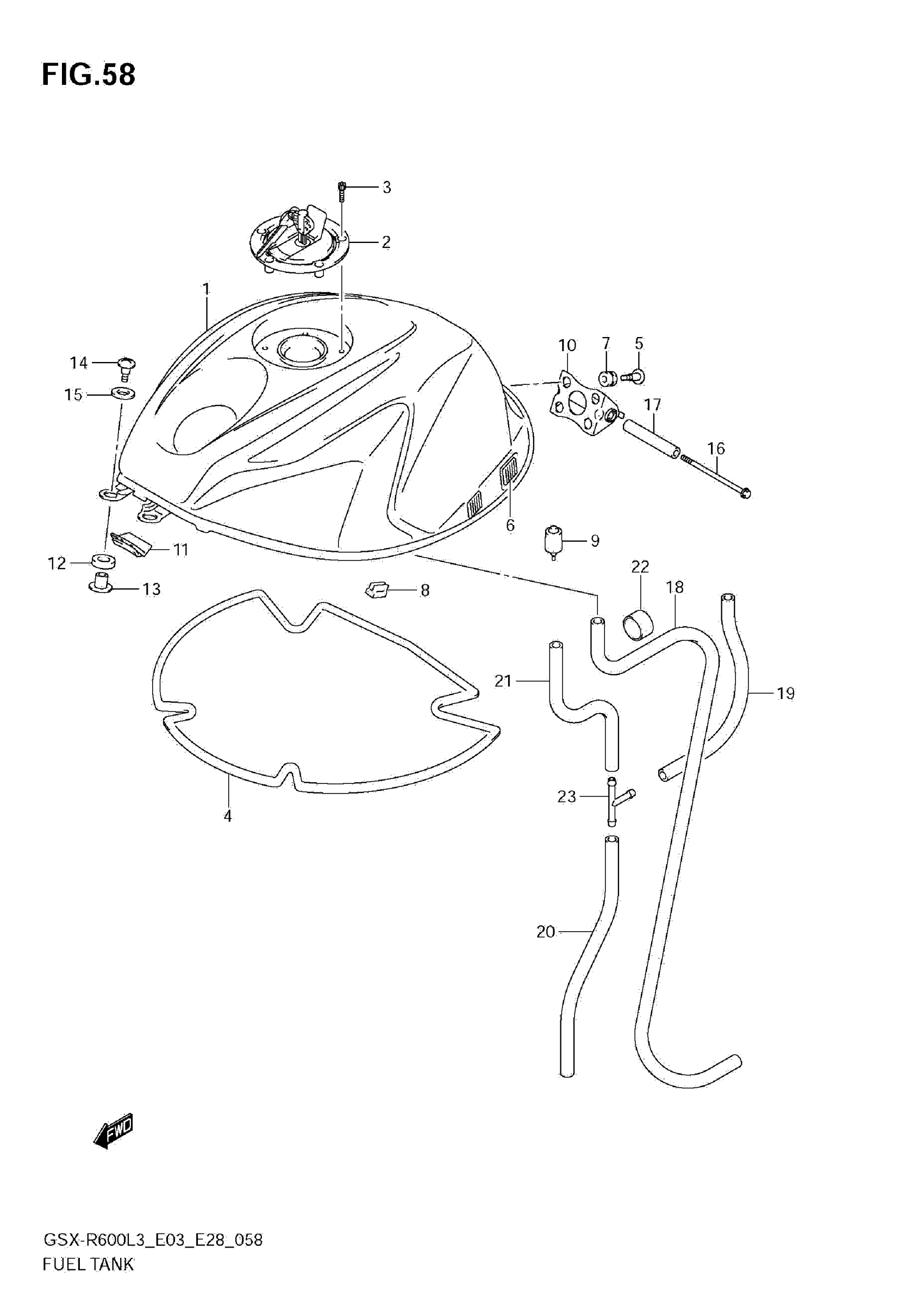

Suzuki GSX-R600L3 (2013) FUEL TANK (GSX-R600L3 E03) Diagram
