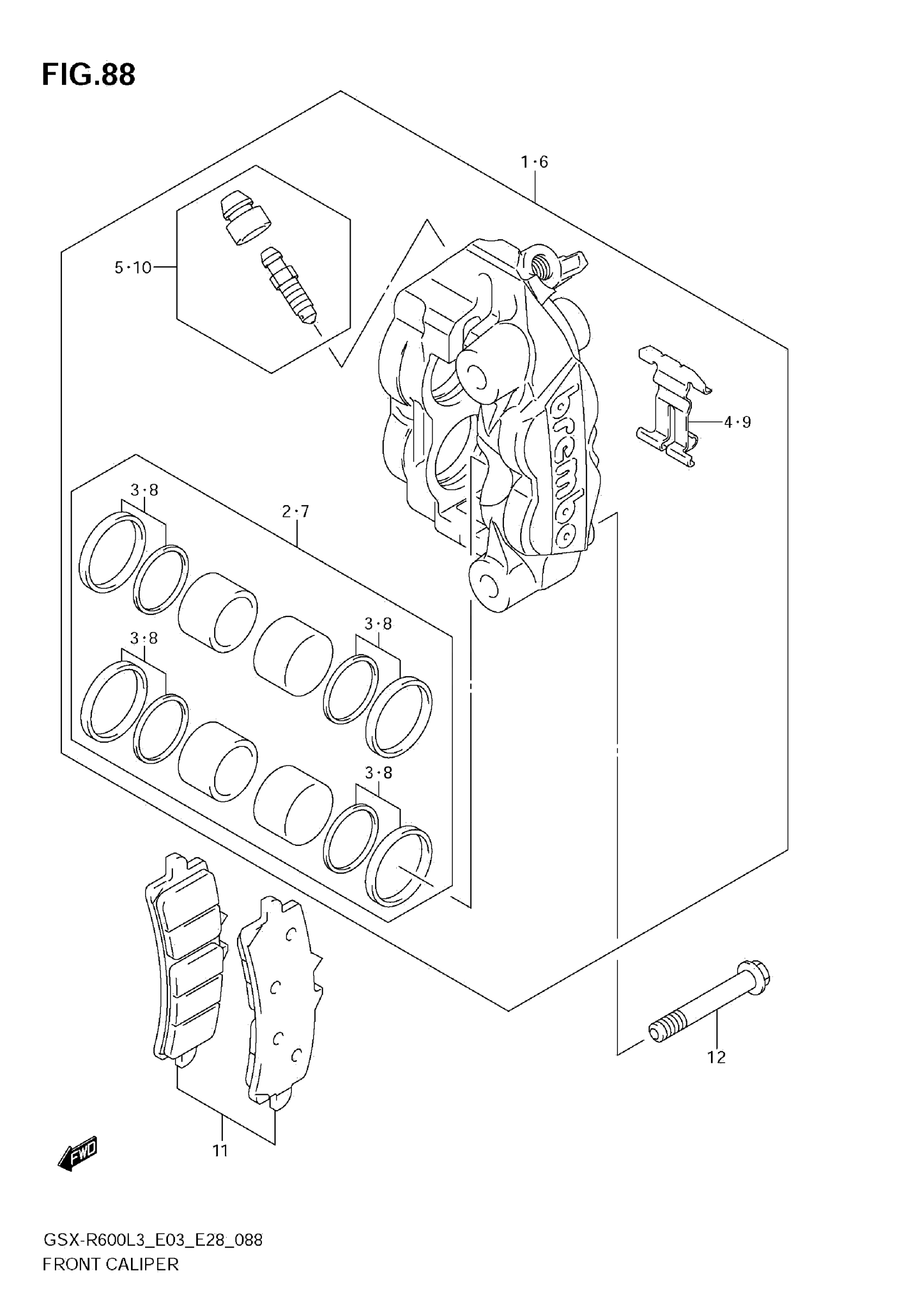

Suzuki GSX-R600L3 (2013) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,R This part replaces 59100-14J00-999.

59100-17K20-999

$443.07

2

PISTON SET

59100-14810

$93.32

3

SEAL SET, PISTON

59100-14820

$57.99

4

SPRING, PAD

59151-14J00

$22.06

5

BLEEDER SET

59100-14840

$23.74

6

CALIPER ASSY,FRONT,L This part replaces 59300-14J00-999.

59300-17K20-999

$443.07

7

PISTON SET

59100-14810

$93.32

8

SEAL SET, PISTON

59100-14820

$57.99

9

SPRING, PAD

59151-14J00

$22.06

10

BLEEDER SET

59100-14840

$23.74

11

PAD SET (T:3.5)

59100-14830

$52.78

12

BOLT (10X70)

09103-10429

$13.88
