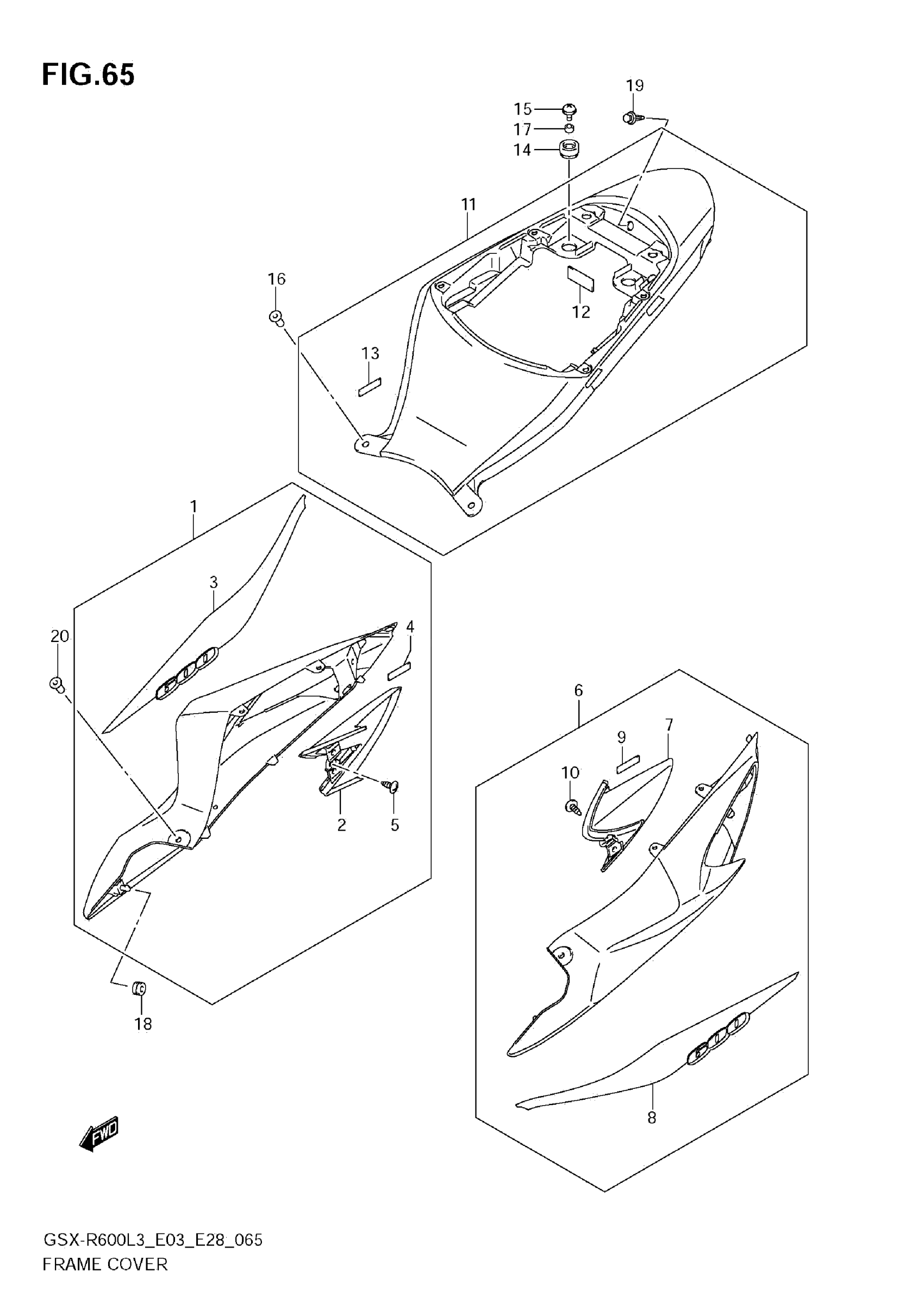

Suzuki GSX-R600L3 (2013) FRAME COVER (AGQ) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47100-14J30-YWW

$185.32

2

COVER,FRAME RR,R

47611-14J00

$18.97

3

TAPE, FRAME COVER RH

68135-14J20-AHA

Unavailable

4

TAPE

94443-06G00

$3.25

5

SCREW

03541-0512A

$1.49

6

COVER, FRAME LH (WHITE)

47200-14J30-YWW

$185.32

7

COVER,FRAME RR,L

47621-14J00

$19.07

8

TAPE, FRAME COVER LH

68145-14J20-AHA

Unavailable

9

TAPE

94443-06G00

$3.25

10

SCREW

03541-0512A

$1.49

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$97.78

12

CUSHION

48128-14FA0

$6.47

13

TAPE

94443-06G00

$3.25

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

15

SCREW (6X16)

09136-06056

$2.19

16

NUT

09159-05019

$7.14

17

SPACER (6.5X10X7)

09180-06283

$1.91

18

CUSHION

09320-06504

$4.96

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

SCREW

02142-1520B

$2.28
