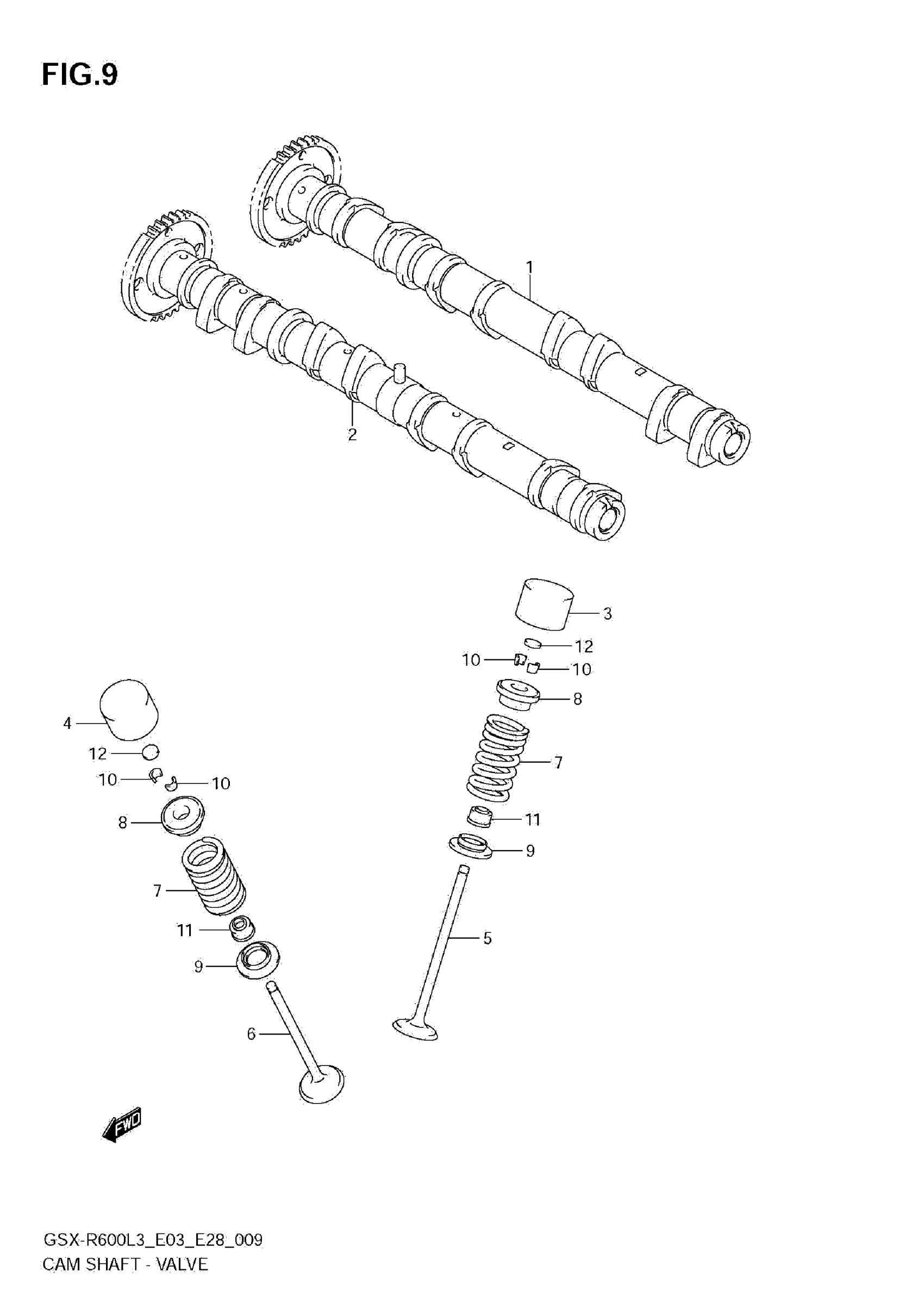

Suzuki GSX-R600L3 (2013) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE

12710-14J00

$507.98

2

CAMSHAFT,EXHAUST

12720-14J00

Unavailable

3

TAPPET, INTAKE

12891-44G00

$87.95

4

TAPPET, EXHAUST

12891-47H00

$62.64

5

VALVE,INTAKE

12911-37H00

$129.27

6

VALVE,EXHAUST

12912-14J00

$159.03

7

SPRING,VALVE

12921-37H00

$12.48

8

RETAINER, VALVE SPRING

12931-29G00

$13.89

9

SEAT, VALVE SPRING

12933-29G00

$6.66

10

COTTER, VALVE

12932-32C00

$2.14

11

OIL SEAL (4.5X10X8)

09289-04002

$5.85

12

SHIM, TAPPET (T:1.20)

12892-05C00-120

$13.10

12

SHIM, TAPPET (T:1.25)

12892-05C00-125

$13.35

12

SHIM, TAPPET (T:1.30)

12892-05C00-130

$7.35

12

SHIM, TAPPET (T:1.35)

12892-05C00-135

$9.48

12

SHIM, TAPPET (T:1.40)

12892-05C00-140

$9.48

12

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.29

12

SHIM, TAPPET (T:1.50)

12892-05C00-150

$13.35

12

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.12

12

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.12

12

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.12

12

SHIM, TAPPET (T:1.70)

12892-05C00-170

$13.10

12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.29

12

SHIM, TAPPET (T:1.80)

12892-05C00-180

$12.85

12

SHIM, TAPPET (T:1.85)

12892-05C00-185

$13.35

12

SHIM, TAPPET (T:1.90)

12892-05C00-190

$13.35

12

SHIM, TAPPET (T:1.95)

12892-05C00-195

$13.35

12

SHIM, TAPPET (T:2.00)

12892-05C00-200

$13.10

12

SHIM, TAPPET (T:2.05)

12892-05C00-205

$13.35

12

SHIM, TAPPET (T:2.10)

12892-05C00-210

$13.35

12

SHIM, TAPPET (T:2.15)

12892-05C00-215

$13.35

12

SHIM, TAPPET (T:2.20)

12892-05C00-220

$13.35

13

SHIM SET, TAPPET T:1.20, 1.25...2.95, 3.00 (5PCS.EACH) & NO.14 | OPT NOT ILLUSTRATED

12800-05830

$1,322.82

14

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69491

Unavailable
