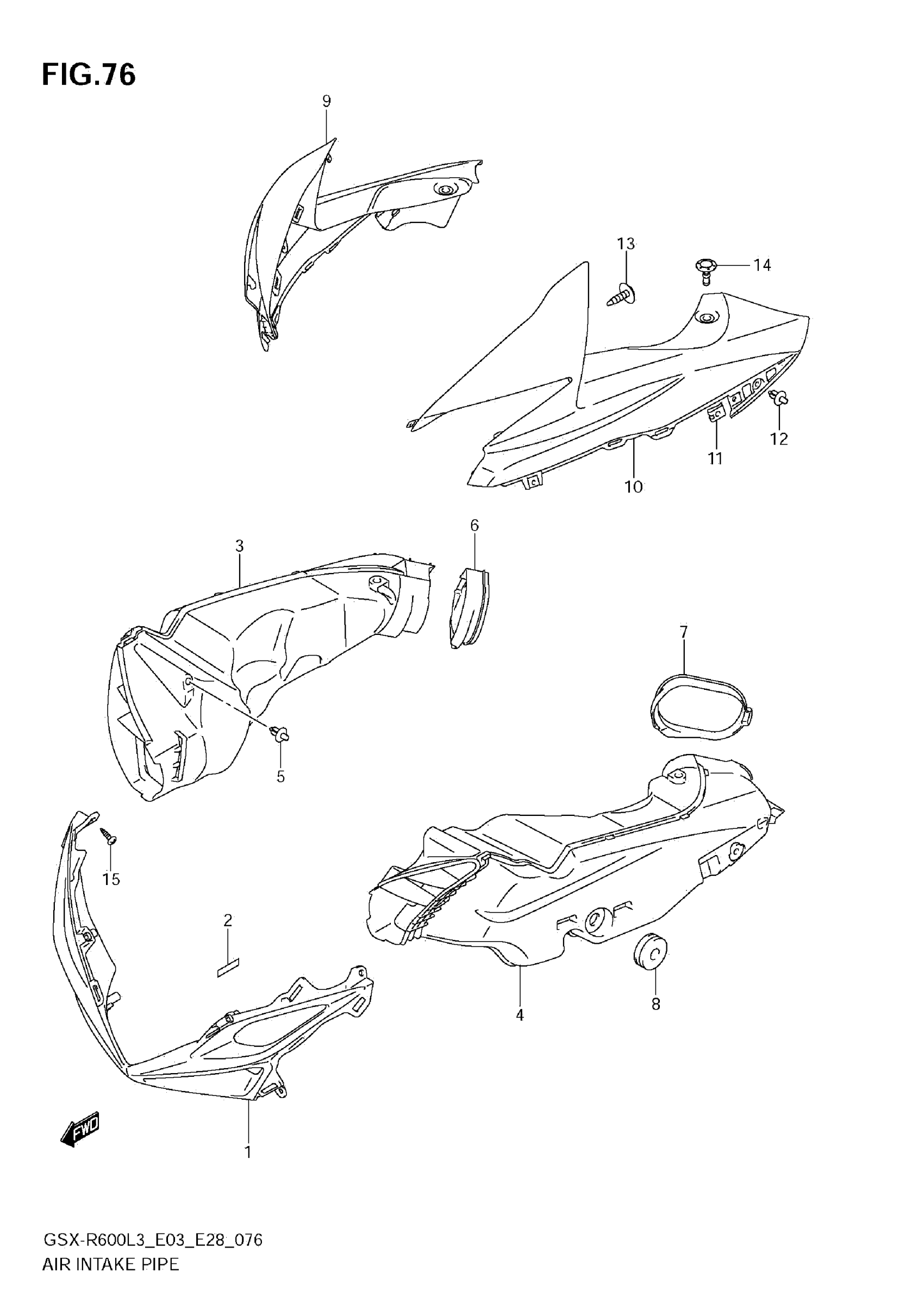

Suzuki GSX-R600L3 (2013) AIR INTAKE PIPE Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLUE) | FOR AGQ

94671-14J10-YSF

$257.26

1

COVER, INTAKE FRONT (GRAY) | FOR AGS

94671-14J10-Y4P

$273.55

1

COVER, INTAKE FRONT (BLACK) | FOR AGT

94671-14J10-YKV

$251.25

2

TAPE

94443-06G00

$2.97

3

PIPE,AIR INTAKE RH

94420-14J00

$107.97

4

PIPE,AIR INTAKE LH

94430-14J00

$108.98

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

8

CUSHION

09320-08028

$2.80

9

COVER,INTAKE,R | FOR AGQ,AGT This part replaces 94672-14J00-YWW.

94672-14J01-YWW

$142.77

9

COVER,INTAKE,R | FOR AGS This part replaces 94672-14J00-YVZ.

94672-14J01-YVZ

$156.78

10

COVER,INTAKE,L | FOR AGQ,AGT This part replaces 94682-14J00-YWW.

94682-14J01-YWW

$144.83

10

COVER,INTAKE,L | FOR AGS This part replaces 94682-14J00-YVZ.

94682-14J01-YVZ

$169.32

11

NUT

09148-05052

$3.04

12

CLIP (BLACK)

09409-06314-5PK

$2.80

13

SCREW (5X12)

09132-05050

$1.89

14

CLIP, REAR

94479-35F00

$5.14

15

SCREW

03541-0512A

$1.37
