2011 Suzuki GSX-R600L1 Wiring Harness Diagram

← All diagrams

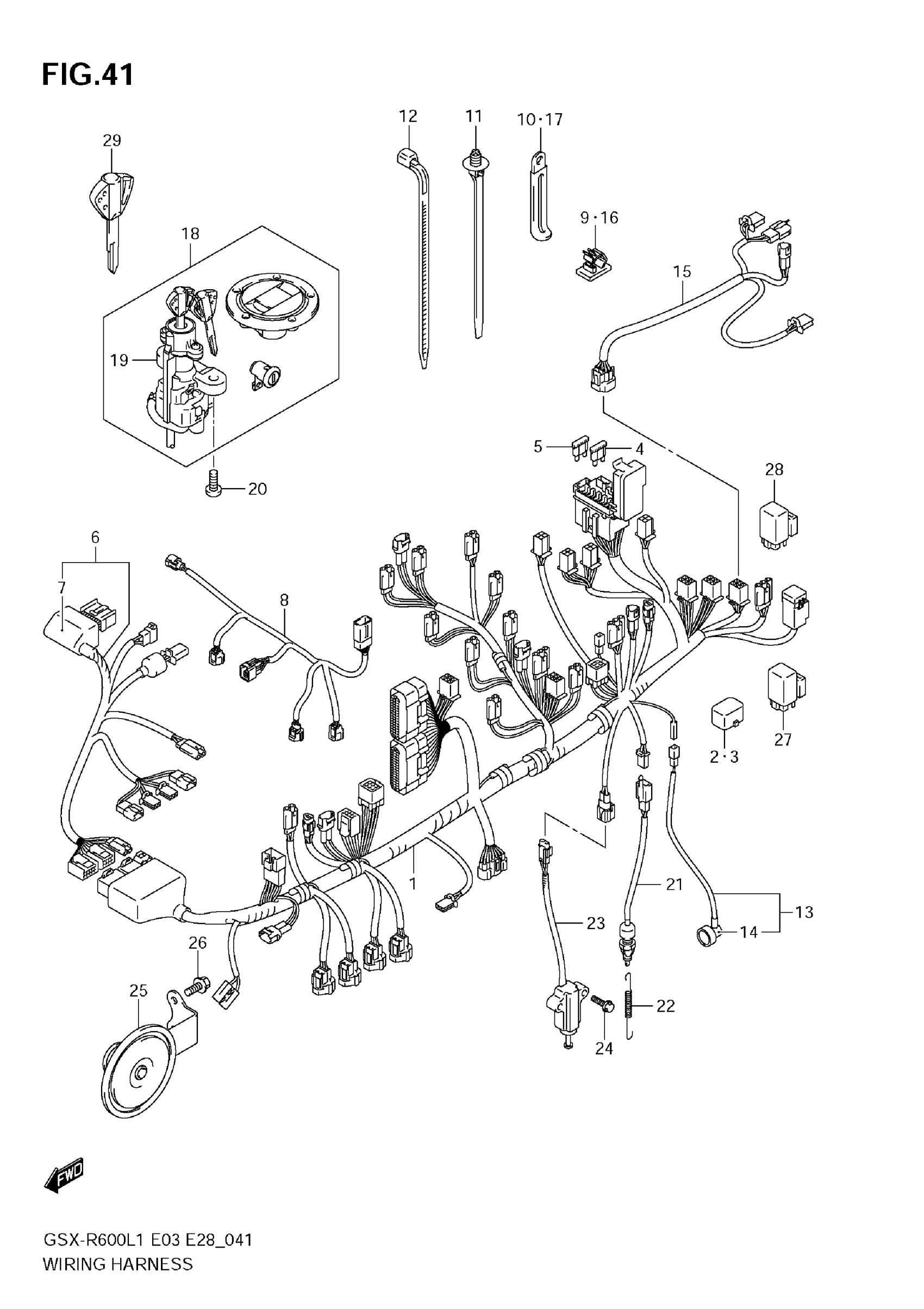

Find the part on the Wiring Harness diagram for your 2011 Suzuki GSX-R600L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX-R600L1 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1

36610-14J40

1
Out of stock

2

CAP,TS This part replaces 36654-06J00.

36654-06J01

1
Out of stock

3

CAP, CO ADJ

36654-06J10

1
Out of stock

4

FUSE (10A)

09481-10501

5
Out of stock

5

FUSE (15A)

09481-15501

1
Out of stock

6

HARNESS, WIRING NO.2

36620-14J00

1

$281.82

In stock

7

COVER, CONNECTOR

36618-47H00

1
Out of stock

8

HARNESS, WIRING NO.3

36630-14J00

1
Out of stock

9

CLAMP (L:95)

09407-11401

1
Out of stock

10

CLAMP (L:145)

09407-14407

2
Out of stock

11

CLAMP (L:154)

09407-17403

1
Out of stock

12

CLAMP (L:125)

09407-14403

2
Out of stock

13

WIRE,OIL PRESSURE SWITCH LEAD This part replaces 36851-14J00.

36851-14J01

1
Out of stock

14

1

$3.28

In stock

15

WIRE,RR COMB LEAD This part replaces 36859-14J00.

36859-14J01

1
Out of stock

16

CLAMP This part replaces 09403-07315.

09403-04310

2
Out of stock

17

CLAMP (L:45)

09404-06429

1
Out of stock

18

1

$324.95

In stock

19

.LOCK ASSY,STEERING This part replaces 37100-41G11.

37100-41G12

1
Out of stock

20

BOLT (8X20)

09139-08016

2
Out of stock

21

SWITCH ASSY,STOP LAMP

37740-14J00

1
Out of stock

22

SPRING

09443-06087

1
Out of stock

23

1

$88.88

In stock

24

BOLT

01550-0616A

2
Out of stock

25

HORN ASSY

38500-14J00

1
Out of stock

26

BOLT

01550-0616B

2
Out of stock

27

RELAY ASSY, FAN MOTOR

38740-24X50

1
Out of stock

28

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

29

KEY,BLANK (IMMOBI) | OPT

37146-41G00

1
Out of stock
