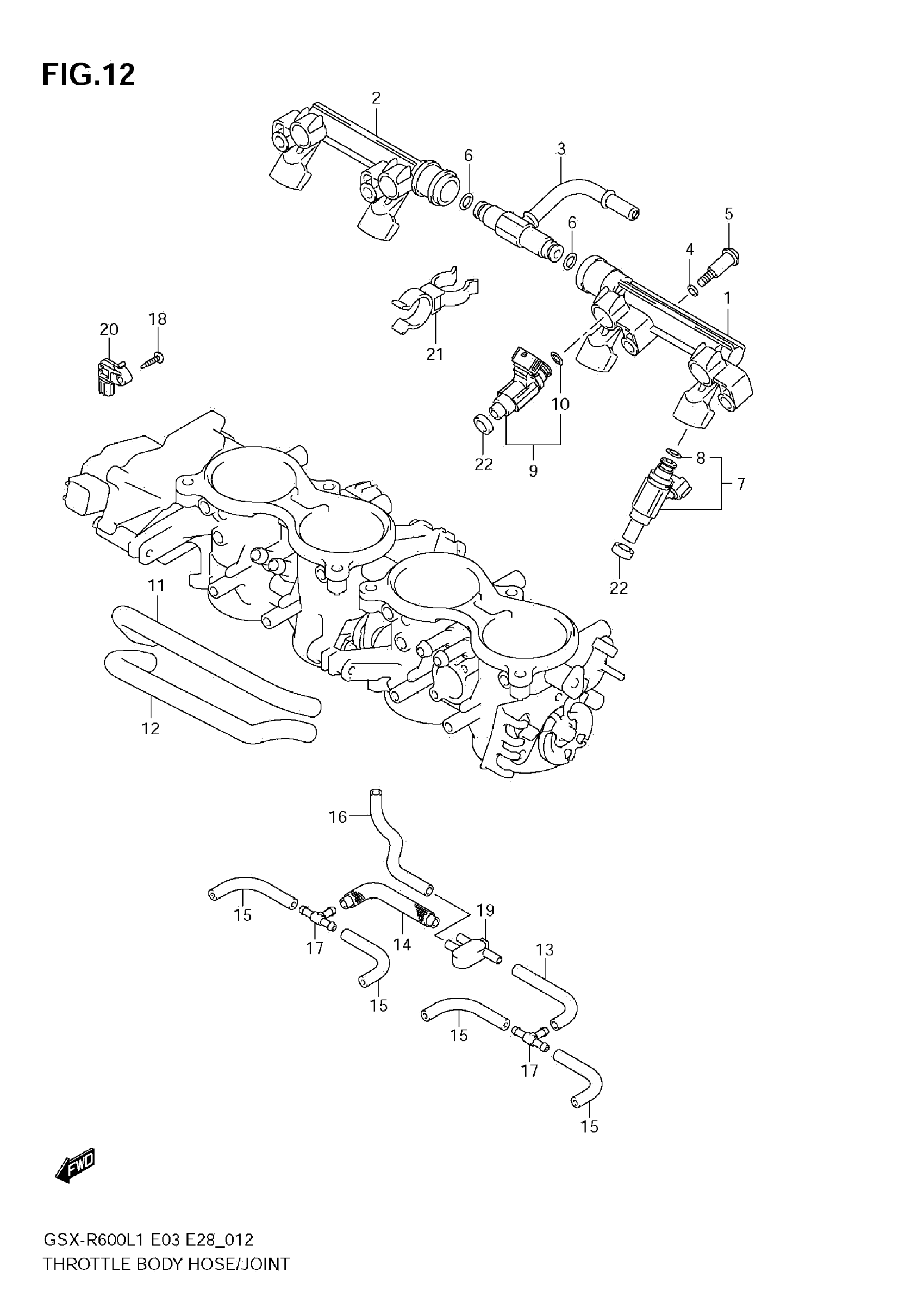

Suzuki GSX-R600L1 (2011) THROTTLE BODY HOSE/JOINT (E3) Diagram

#

Description
Price

1

DELIVERY PIPE

13473-14J00

Unavailable

2

DELIVERY PIPE

13473-14J10

Unavailable

3

NIPPLE ASSY

13473-29G00

$96.22

4

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

5

SCREW

13601-29G00

$3.43

6

O-RING This part replaces 15721-29G00.

15721-08J00

$10.52

7

INJECTOR ASSY

15710-14J00

$333.68

8

.O-RING

15717-58B00

$9.95

9

INJECTOR ASSY

15710-14J10

Unavailable

10

.O-RING

15717-58B00

$9.95

11

.HOSE This part replaces 13698-14J00.

13698-14J01

$42.70

12

.HOSE This part replaces 13698-14J10.

13698-14J11

$39.53

13

HOSE This part replaces 13683-14J00.

13683-14J01

$7.72

14

HOSE This part replaces 13683-14J10.

13683-14J11

$9.23

15

HOSE (L:425) This part replaces 13683-10F60.

13683-10F61

$17.10

16

HOSE This part replaces 13683-29G00.

13683-29G01

$8.10

17

3WAY,VACUUM HOSE

13685-02FA0

$7.05

18

SCREW

13437-14J00

Unavailable

19

JOINT

13471-18H00

$10.48

20

SENSOR,BOOST

15620-29G00

$273.45

21

CLAMP

09408-00262

Unavailable

22

SEAL

15722-29G00

$10.93
