Description

Price

1

WHEEL, REAR (17M/CXMT5.50) (SILVER) | FOR YVB,JDT

64111-14J00-20H

Unavailable

1

WHEEL, REAR (17M/CXMT5.50) (WHITE) | FOR GLR

64111-14J00-28W

$1,306.10

2

SPACER,RR WHEEL BEARING

64731-14J00

$40.10

3

BEARING (25X52X15) | RH

09262-25061

$33.12

4

BEARING | LH

08123-60057

$29.00

5

.SEAL,OIL (32X52X7) | RH

09285-32004

$7.98

6

DISC,RR BRAKE

69211-18G00

$319.08

7

BOLT (8X21)

09106-08160

$3.57

8

AXLE,RR

64711-14J00

$97.50

9

NUT

09159-22007

$19.20

10

WASHER (22X35X2)

09160-22081

$3.04

11

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

$19.66

12

SPACER,RR AXLE,L

64751-44G00

$35.17

13

DRUM,RR SPROCKET

64610-47H00

$313.78

14

RETAINER, SPROCKET DRUM

64733-44G00

$29.15

15

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

16

OIL SEAL (39X65X7)

09285-39001

$10.62

17

ABSORBER, HUB SHOCK

64651-47H10

$25.52

18

SPROCKET, REAR | NT:43

64511-14J00

$137.02

19

NUT

08319-3110A

$2.73

20

TIRE, REAR, 180/55 ZR17M/C (73W)

65110-14J00

$711.80

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

22

BALANCER, WHEEL NO.1

55411-22H00

$8.60

22

BALANCER, WHEEL NO.2

55412-22H00

$10.07

22

BALANCER, WHEEL NO.3

55413-22H00

$11.47

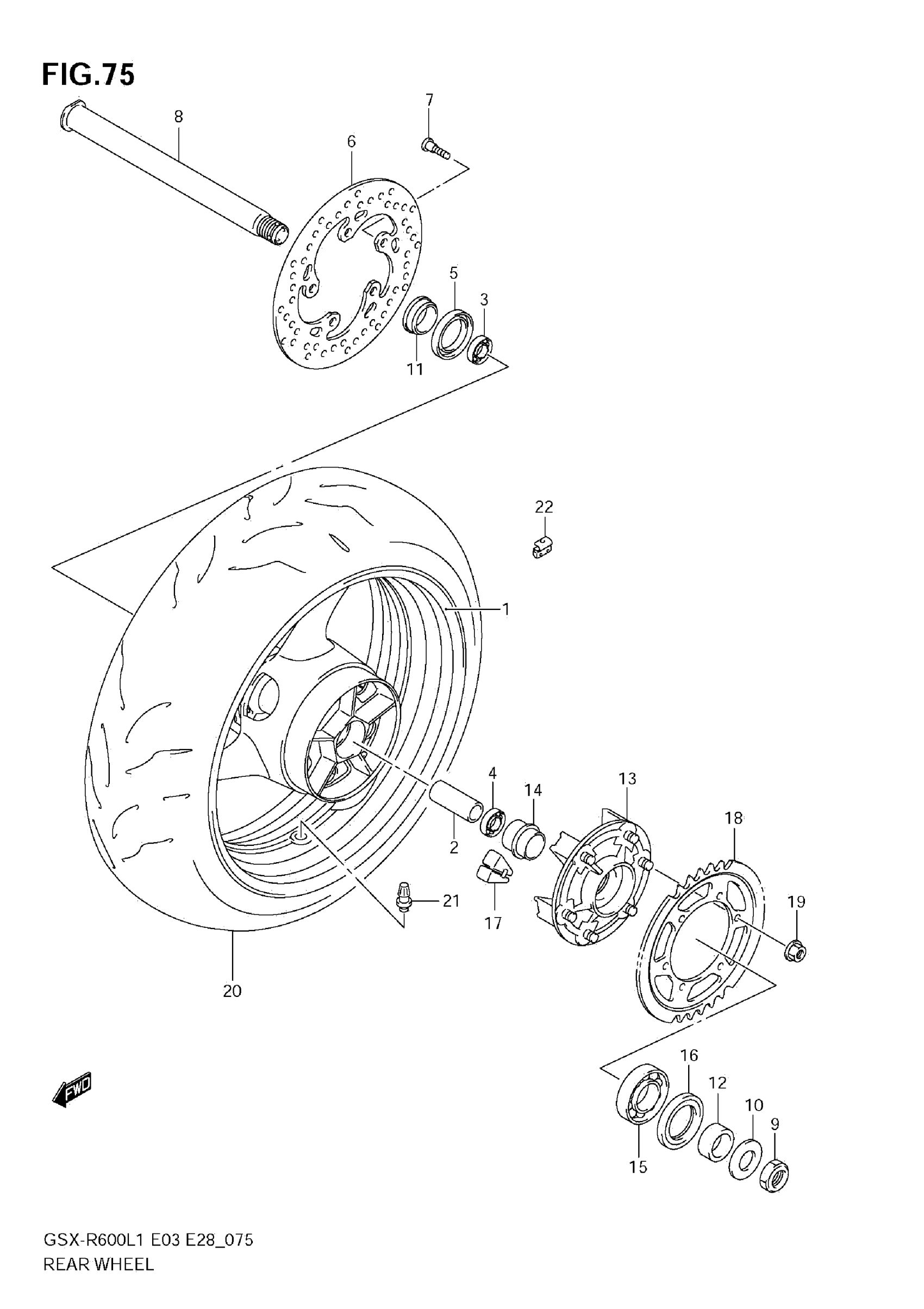

Suzuki GSX-R600L1 (2011) REAR WHEEL Diagram
