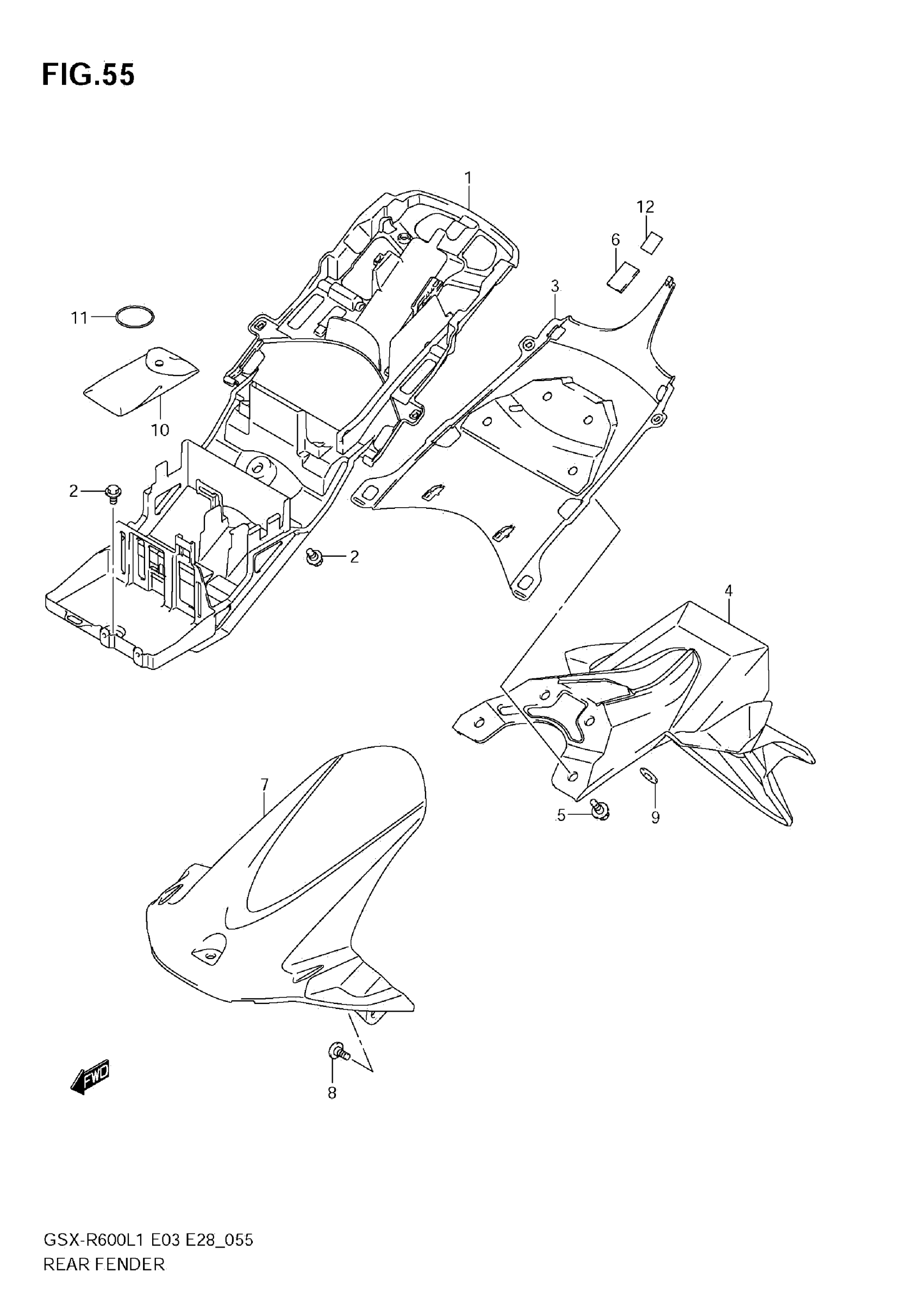

Suzuki GSX-R600L1 (2011) REAR FENDER Diagram

FENDER,RR FR

63111-14J00

$136.15

BOLT (6X12)

09111-06107

$2.60

COVER,RR FENDER FR This part replaces 63112-14J00.

63112-14J10

$40.70

FENDER,RR RR This part replaces 63113-14J00.

63113-14J01

$113.78

BOLT (6X17.8)

09111-06072

$2.03

CUSHION

44556-33H00

$7.66

FENDER,RR LWR

63114-14J01

$54.18

SCREW (6X16)

09139-06158

$4.90

WASHER (6.5X20X1.2)

09160-06077

$1.91

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

BAND

09280-57003

Unavailable

FASTENER,REAR FENDER

44572-37H00

$9.83
