Description

Price

1

TANK ASSY,FUEL( | FOR JDT This part replaces 44100-14J00-YPA.

44100-14J32-YPA

$1,082.92

1

TANK ASSY,FUEL (BLUE) | FOR GLR This part replaces 44100-14J00-YSF.

44100-14J32-YSF

$1,474.32

1

TANK ASSY, FUEL (BLACK) | FOR YVB This part replaces 44100-14J00-YVB.

44100-14J32-YVB

$1,444.63

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

3

BOLT (5X20)

09106-05017

$2.83

4

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

5

SCREW

44543-14J00

$7.05

6

FASTENER, COVER

44572-13G00

$11.07

7

CUSHION

09320-08071

$3.25

8

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

9

CUSHION,FUEL TANK RR

44542-41G00

$7.69

10

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

11

RUBBER,FUEL TANK FR

44546-44H00

$13.35

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

13

SPACER, TANK FRONT

44512-16G00

$7.44

14

SCREW (6X25)

09139-06192

$3.23

15

WASHER (6.5X22X1.6)

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.76

17

SPACER, TANK REAR

44561-18G00

$16.96

18

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$20.78

19

HOSE,FUEL TANK BRTHR NO.1 This part replaces 44424-14J00.

44424-14J01

$9.62

20

HOSE,FUEL TANK BRTHR NO.2 This part replaces 44424-14J10.

44424-14J11

$8.88

21

HOSE,VACUUM This part replaces 44425-09E00.

44425-09E01

$11.28

22

HOSE (12X16X600) | L:600>10

09352-12163-600

Unavailable

23

3 WAY

09367-06007

$3.46

24

STAY, FUEL TANK

44574-35F00

$15.16

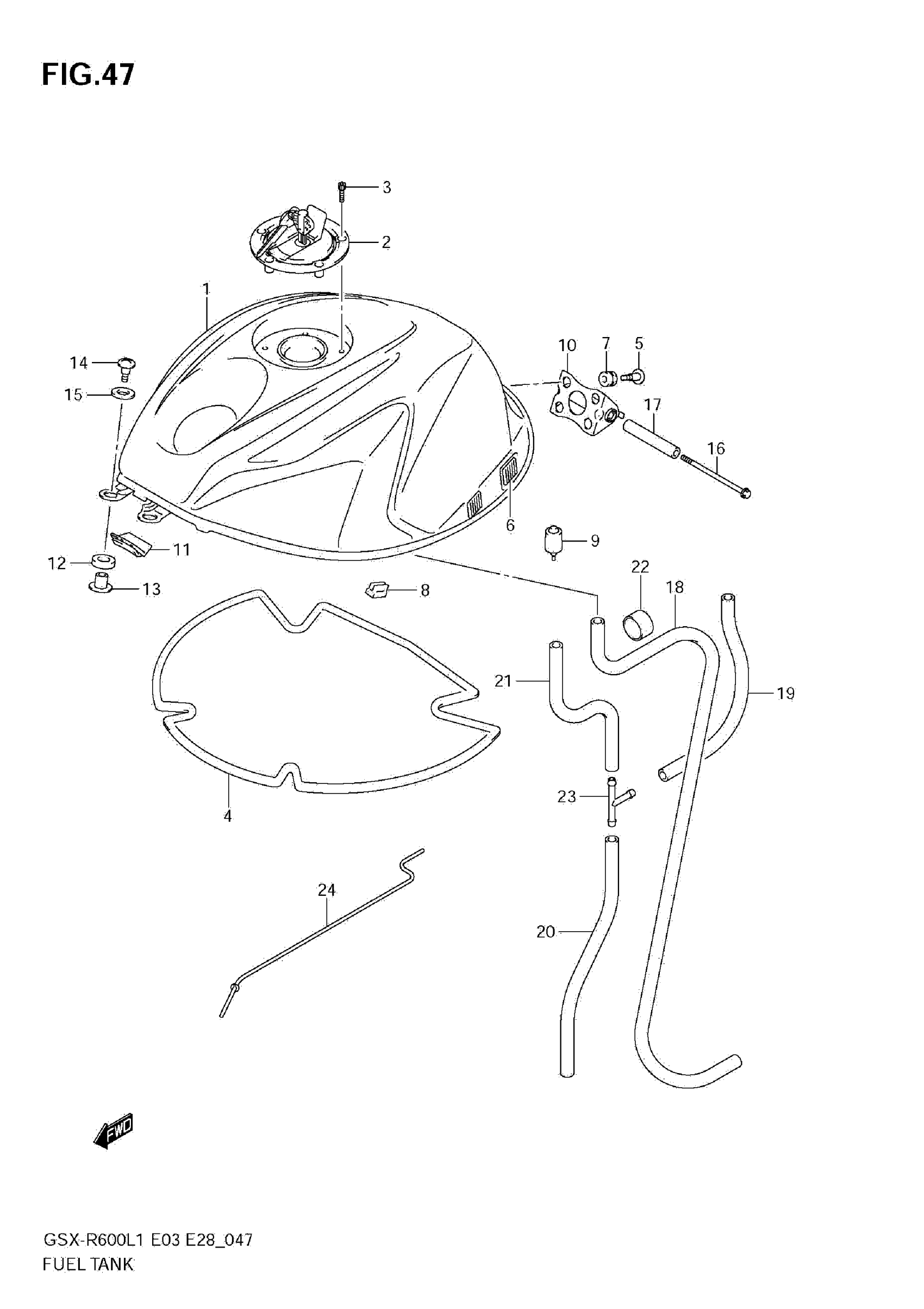

Suzuki GSX-R600L1 (2011) FUEL TANK (E28) Diagram
