2011 Suzuki GSX-R600L1 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2011 Suzuki GSX-R600L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

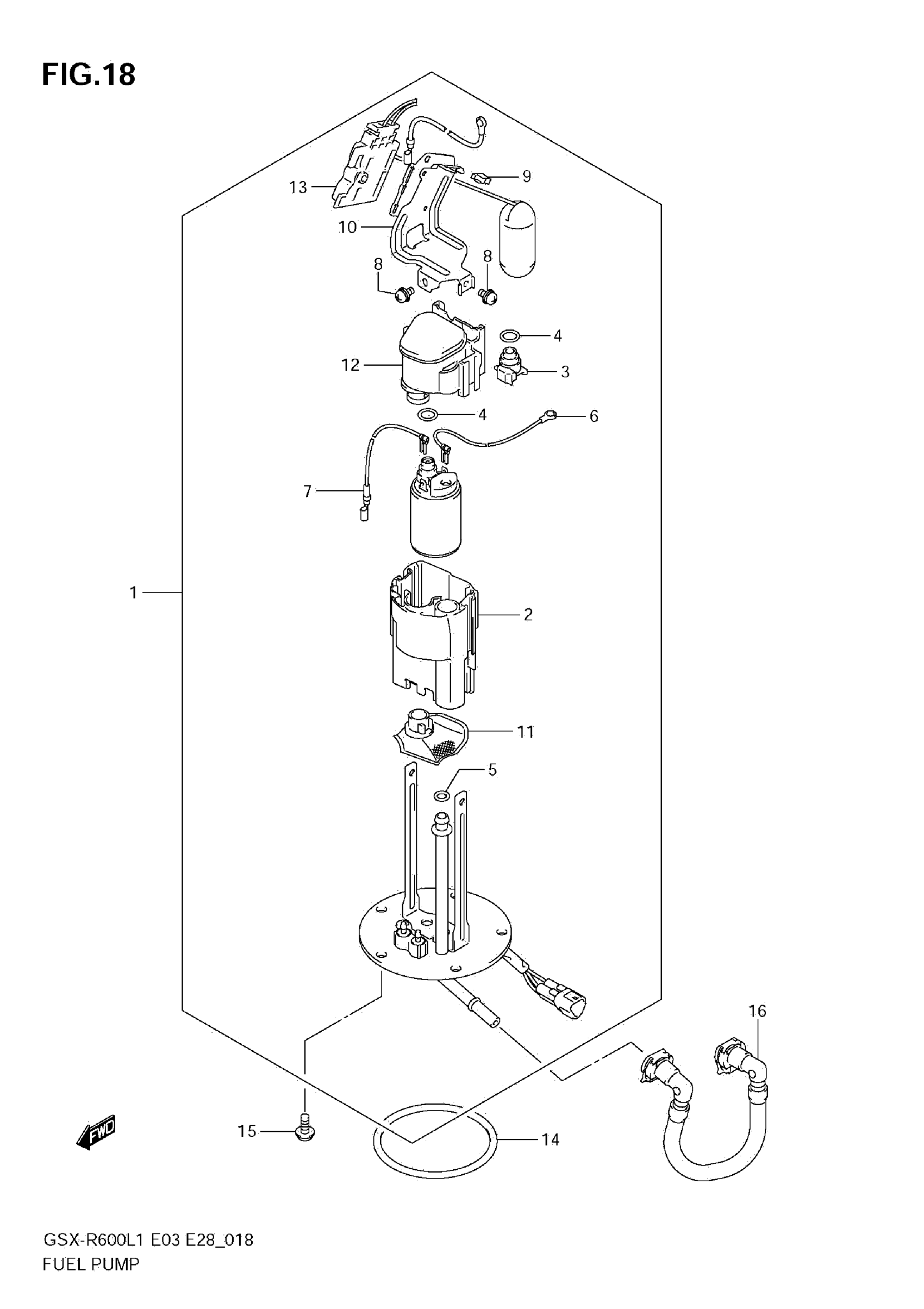

2011 Suzuki GSX-R600L1 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$528.84

In stock

2

CUP, RESERVOIR

15111-27G00

1

$47.88

In stock

3

JOINT

15112-05H00

1

$31.73

In stock

4

O RING

15113-05H00

2

$20.48

In stock

5

O RING

15113-35F00

1

$8.88

In stock

6

WIRE, EARTH

15114-14J00

1
Out of stock

7

WIRE, LEAD

15115-14J00

1
Out of stock

8

SCREW

15116-10F00

3

$6.30

In stock

9

SADDLE, EDGE

15119-23H00

1
Out of stock

10

.BRACKET,FUEL GAUGE

15181-14J00

1
Out of stock

11

STRAINER

15420-05H00

1

$41.04

In stock

12

REGULATOR

15610-14J00

1

$173.17

In stock

13

GAUGE ASSY, FUEL LEVEL

34810-14J00

1
Out of stock

14

O-RING

15201-35F00

1

$27.52

In stock

15

BOLT

07120-0612A

5
Out of stock

16

1

$69.02

In stock
