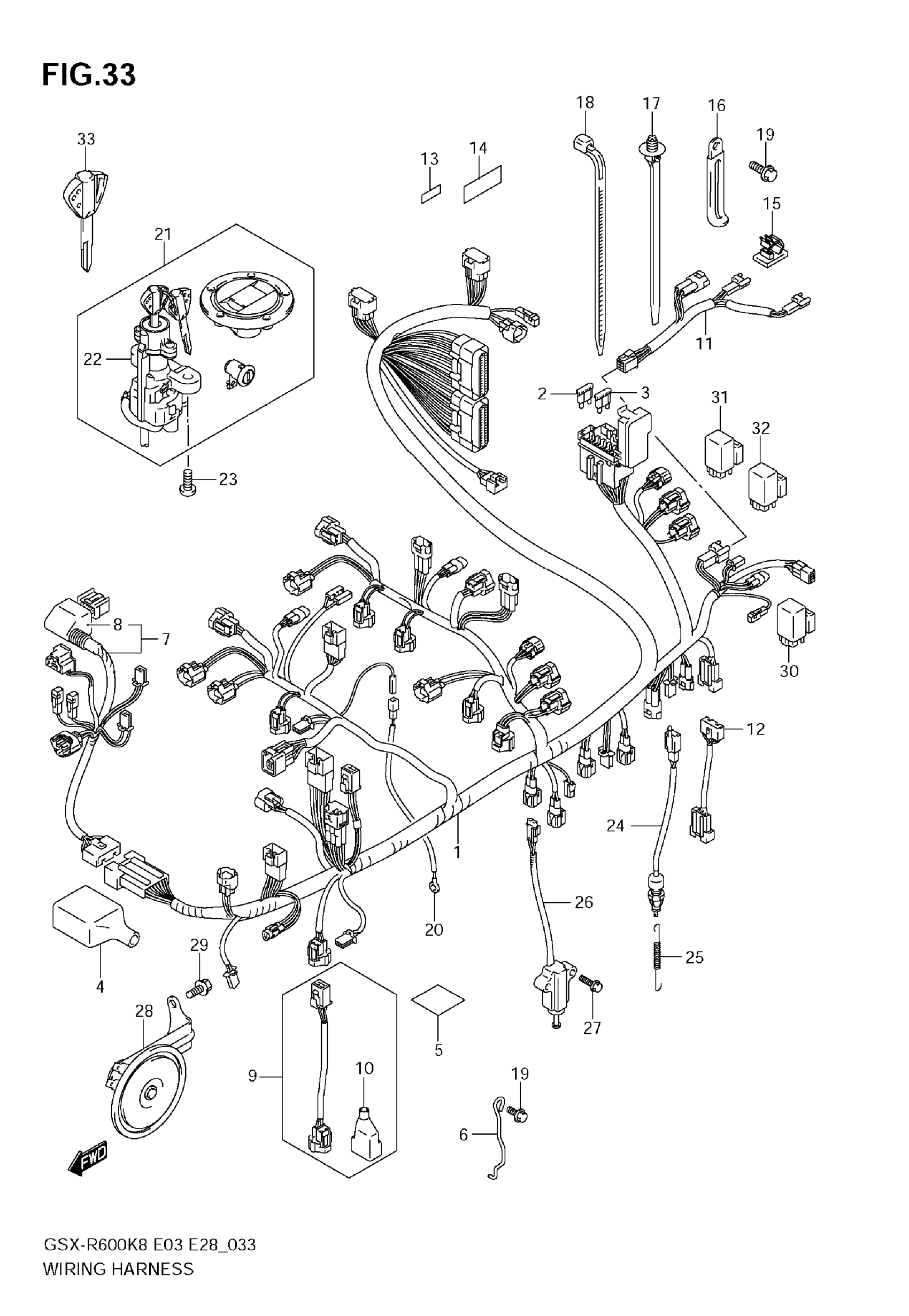

Suzuki GSX-R600 (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 - 4 This part replaces 36610-37H30.

36610-37H31

$844.63

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

BOOT

36618-18G00

Unavailable

5

PROTECTOR, HARNESS (30X80X1) | CUT AS REQUIRED (30X30)

33652-29F00

$3.03

6

GUIDE, WIRING HARNESS

36619-37H00

Unavailable

7

HARNESS,WIRING | Includes Item(s) 8 This part replaces 36620-37H00.

36620-37H01

$195.78

8

COVER, SPEEDOMETER

36618-41G00

Unavailable

9

WIRE, ACTUATOR LEAD | Includes Item(s) 10

36854-37H00

Unavailable

10

BOOT

13311-01H10

Unavailable

11

WIRE,GRIP HEATE This part replaces 36855-37H00.

36855-37H01

$49.30

12

WIRE,RELAY LEAD This part replaces 36857-37H00.

36857-37H01

$60.37

13

PROTECTOR,WIRING HARNESS (10X

36920-37H00

Unavailable

14

PROTECTOR (20X50X2.0)

36920-45G00

$3.03

15

CLAMP

09403-06310

Unavailable

16

CLAMP (L:45)

09404-06429

$1.83

17

CLAMP (L:170)

09407-17403

$4.91

18

CLAMP (L:125)

09407-14403

$2.26

19

BOLT

01550-0612A

$1.97

20

WIRE,OIL PRESSU This part replaces 36851-01H00.

36851-01H01

$12.25

21

LOCK SET This part replaces 37101-40820.

37101-40824

$277.69

21

LOCK SET | E33; Includes Item(s) 22 This part replaces 37101-40840.

37101-40843

$301.83

22

.LOCK ASSY,STEERING This part replaces 37100-41G10.

37100-41G12

$228.06

23

SCREW (8X20)

09139-08016

$3.37

24

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

25

SPRING

09443-06087

$4.10

26

SWITCH ASSY,SID This part replaces 37840-35F10.

37840-35F12

$75.52

27

BOLT

01550-0616A

$1.97

28

HORN ASSY

38500-37H00

$87.70

29

BOLT

01550-0616A

$1.97

30

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

31

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

32

RELAY ASSY,HEAD This part replaces 38740-39G00.

38740-39G10

$38.40

33

KEY,BLANK (IMMOBI) | OPT

37146-41G00

$43.04
