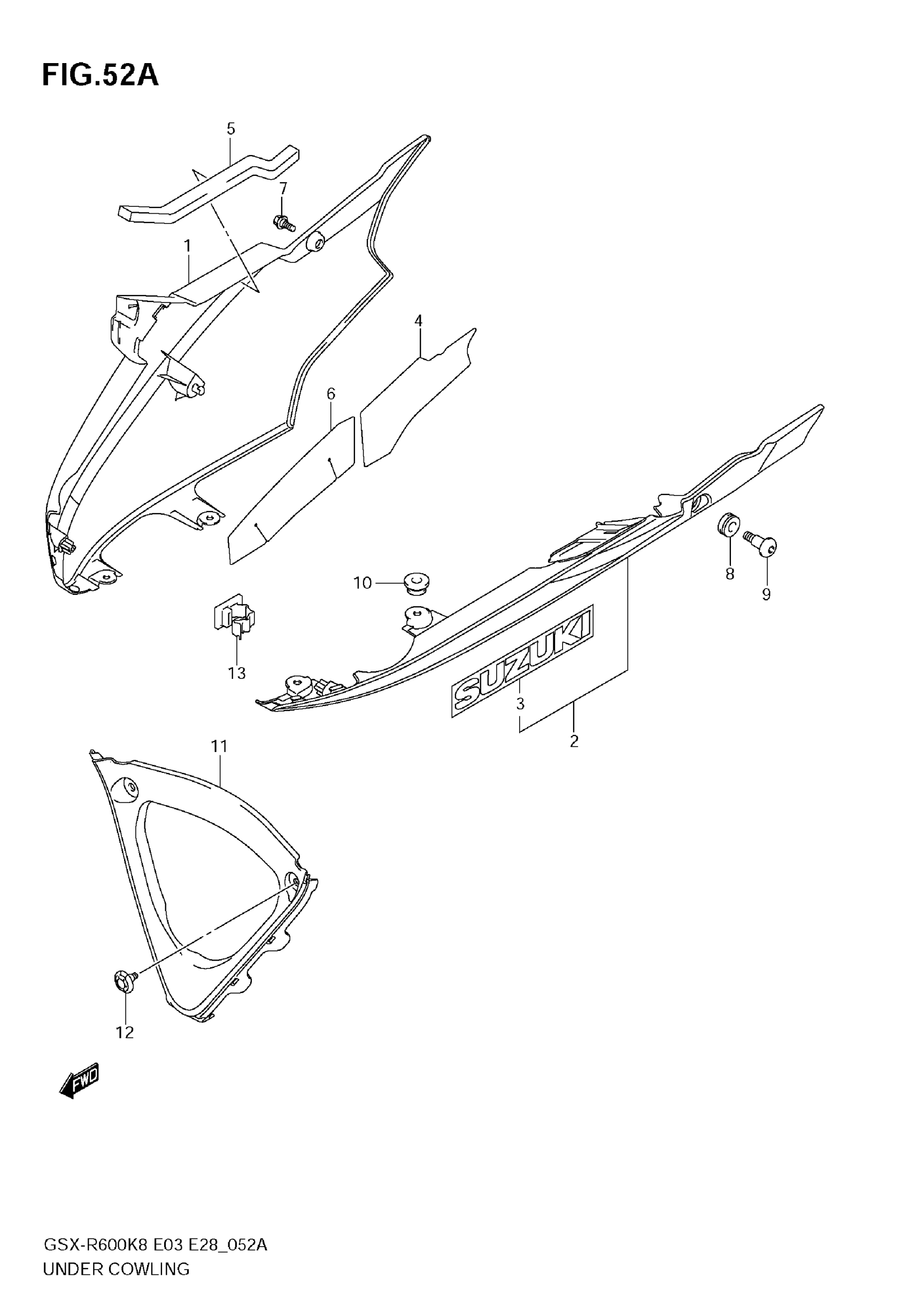

Suzuki GSX-R600 (2009) UNDER COWLING (MODEL K9) Diagram

#

Description
Price

1

COWLING, UNDER RH (BLACK) | FOR 019

94470-37H00-02X

Unavailable

1

COWLING, UNDER RH (WHITE) | FOR YPA

94470-37H00-YPA

Unavailable

1

COWLING,UNDER,R | FOR ECE This part replaces 94470-37H00-14X.

94471-37H00

Unavailable

1

COWLING, UNDER RH (BLUE) | FOR EAK

94470-37H00-YSF

Unavailable

2

COWLING, UNDER LH (BLACK) | FOR 019

94480-37H00-02X

$340.68

2

COWLING, UNDER LH (WHITE) | FOR YPA

94480-37H00-YPA

Unavailable

2

COWLING, UNDER LH (BLACK) | FOR ECE

94480-37H00-14X

Unavailable

2

COWLING, UNDER LH (BLUE) | FOR GLR; Includes Item(s) 3 - 3

94480-37H00-YSF

$367.93

3

EMBLEM (GRAY) | FOR 02X

68181-33C20-17U

$32.67

3

EMBLEM (GOLD) | FOR YPA

68181-33C20-YLC

Unavailable

3

.EMBLEM,SUZUKI (SILVER) | FOR 14X

68181-33C20-YD8

$32.05

3

EMBLEM (WHITE) | FOR YSF

68181-33C20-YBD

$32.67

4

SHIELD, HEAT REAR UPPER RH

94472-37H00

$20.77

5

CUSHION

94477-37H00

$37.58

6

SHIELD, HEAT RH

94472-37H10

Unavailable

7

SCREW, RH

09139-05064

$2.57

8

CUSHION, LH

09320-09016

$1.97

9

SCREW, LH

09139-06126

$4.04

10

CUSHION

09321-10018

$5.45

11

COWLING, UNDER CENTER

94498-37H00

$52.28

12

CLIP

94479-35F00

$5.62

13

CLAMP, DRAIN HOSE

09403-14311

$5.33
