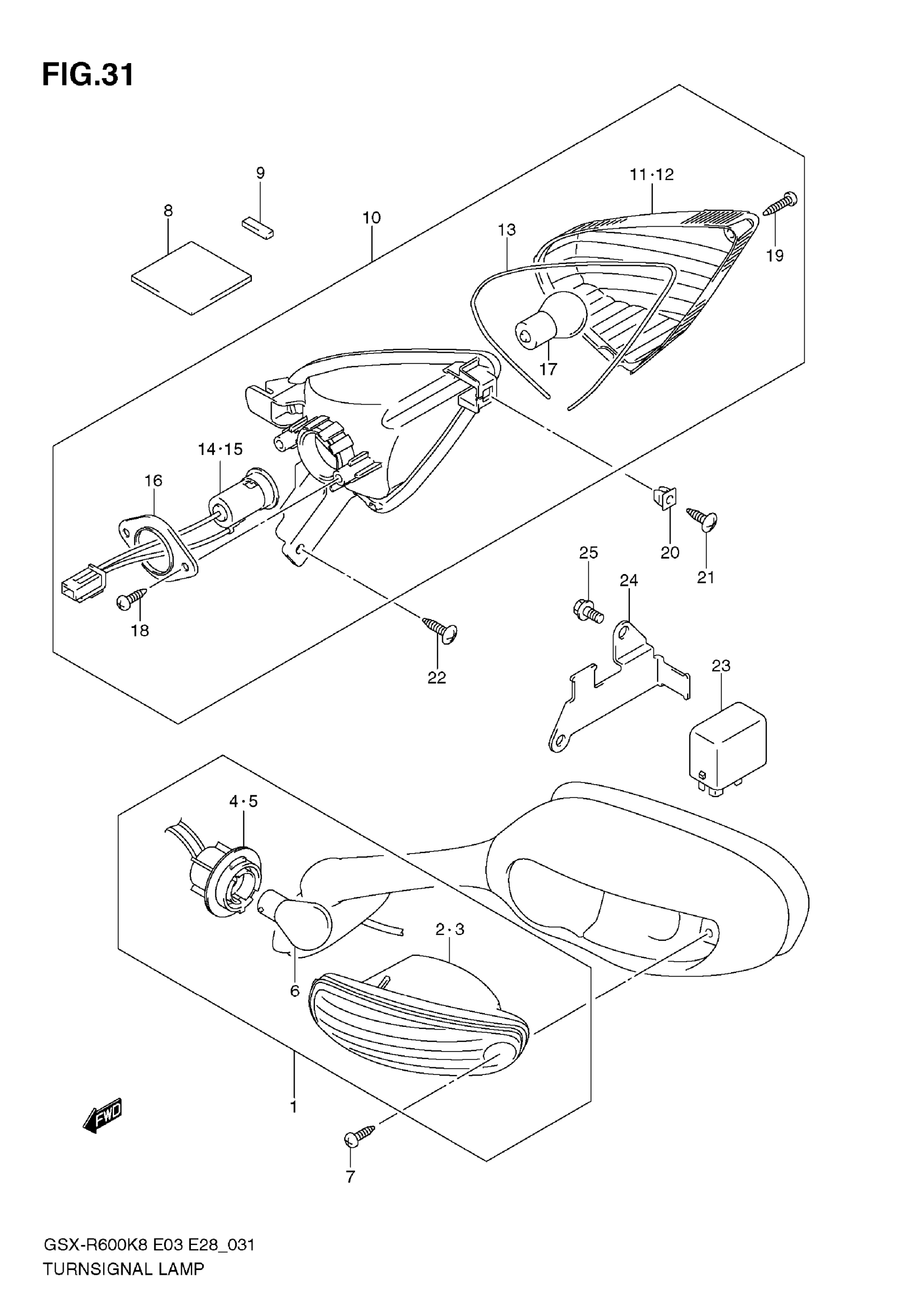

Suzuki GSX-R600 (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$57.43

1

LAMP ASSY,FR TURN SIGNAL,L | Includes Item(s) 2 - 6

35602-41G00

$57.43

2

.LAMP UNIT,R

35610-41G00

$46.37

3

.LAMP UNIT,L

35630-41G00

$38.13

4

.SOCKET,R

35618-10G50

$30.22

5

.SOCKET,L

35638-10G50

$29.10

6

BULB (12V21W)

09471-12186

$12.66

7

SCREW (4X20)

09132-04032

$1.99

8

TAPE, FRONT (50X50X5) | CUT AS REQUIRED (20X10X5)

33652-20C00

$2.99

9

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$3.95

10

LAMP ASSY, REAR, R

35603-21H00

$88.50

10

LAMP ASSY, REAR, L | Includes Item(s) 11 - 19

35604-21H00

$96.13

11

LENS, R

35652-21H00

$26.45

12

LENS, L

35672-21H00

$32.42

13

GASKET

35653-21H00

$12.15

14

.SOCKET & CORD,R

35658-41G00

$32.17

15

.SOCKET & CORD,L

35678-41G00

$32.17

16

PLATE, REAR

35716-07A30

$9.90

17

BULB (12V21W)

09471-12186

$12.66

18

SCREW

03211-0412A

$2.23

19

SCREW

03212-04169

$1.49

20

NUT, REAR TURNSIGNAL

09148-04021

$1.49

21

SCREW, REAR

03541-0412A

$1.49

22

SCREW, REAR

03541-0512A

$1.49

23

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08

24

BRACKET, RELAY

38621-37H00

Unavailable

25

NUT, BRKT

01550-0612A

$1.97
