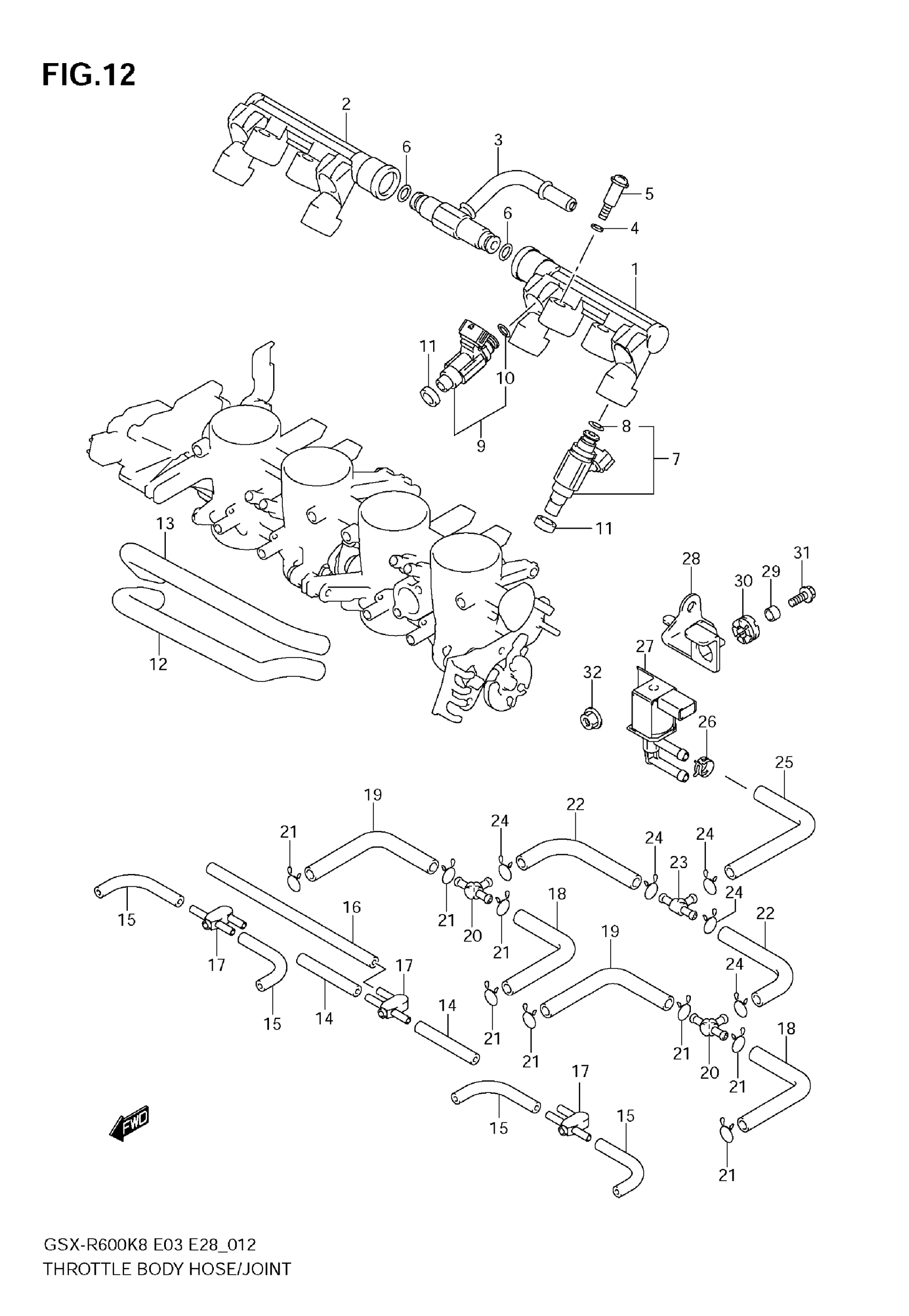

Suzuki GSX-R600 (2009) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DELIVERY PIPE ASSY

13473-37H00

Unavailable

2

DELIVERY PIPE ASSY

13473-37H10

Unavailable

3

NIPPLE ASSY

13473-29G00

$96.22

4

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

5

SCREW

13601-29G00

$3.43

6

O-RING This part replaces 15721-29G00.

15721-08J00

$10.52

7

INJECTOR ASSY | Includes Item(s) 8

15710-37H00

$333.68

8

O RING

15717-16G00

$11.70

9

INJECTOR ASSY | Includes Item(s) 10

15710-37H10

$314.23

10

O RING

15717-16G00

$11.70

11

SEAL

15722-29G00

$10.93

12

HOSE

13698-37H00

Unavailable

13

HOSE

13698-37H10

Unavailable

14

HOSE This part replaces 13683-37H00.

13683-37H01

$9.73

15

HOSE

13683-37H10

Unavailable

16

HOSE (L:425) This part replaces 13683-04F50.

13683-10F61

$17.10

17

NIPPLE

13471-18H00

$10.48

18

HOSE | E33

13683-37H20

Unavailable

19

HOSE | E33

13683-37H30

Unavailable

20

NIPPLE | E33

13685-29G00

Unavailable

21

CLIP | E33

13671-29G00

Unavailable

22

HOSE | E33

13680-37H00

Unavailable

23

.NIPPLE | E33

13685-48B00

$12.15

24

CLIP | E33

13671-06A10

Unavailable

25

HOSE | E33

13680-37H10

Unavailable

26

CLIP | E33

09401-10411

$2.80

27

VALVE, CANISTER PURGE | E33

18117-82K00

Unavailable

28

BRACKET | E33

13165-37H00

Unavailable

29

SPACER | E33

09180-06310

$1.91

30

CUSHION | E33

09320-10055

$4.50

31

BOLT | E33

09116-06212

$2.35

32

NUT | E33

08316-1006A

$2.19
