2009 Suzuki GSX-R600 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2009 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

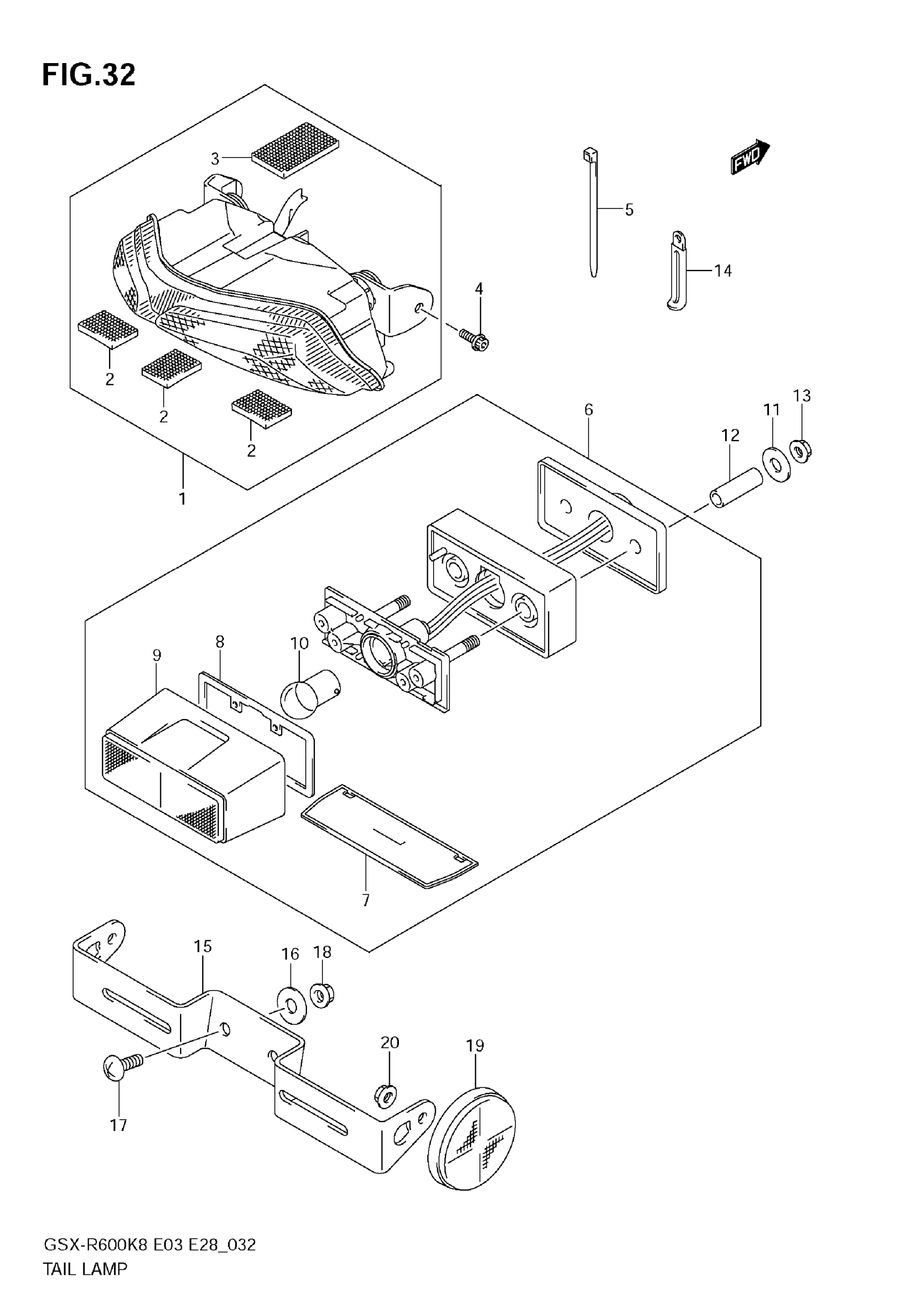

2009 Suzuki GSX-R600 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 3

35710-37H30

1
Out of stock

2

FASTENER,FRAME COVER (15X25) | 15X25X0.2

47912-37H00

3
Out of stock

3

.FASTENER (33X25) | 33X25X2.0

44572-13G10

1
Out of stock

4

SCREW (5X12)

09106-05031

2
Out of stock

5

CLAMP (L:145)

09407-14407

2
Out of stock

6

LAMP ASSY,LICENSE | Includes Item(s) 7 - 10 This part replaces 35910-41G30.

35910-41G32

1
Out of stock

7

1

$14.98

In stock

8

GASKET

35913-41G00

1

$16.07

In stock

9

COVER

35917-41G00

1

$39.85

In stock

10

1

$2.55

In stock

11

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

12

SPACER (6.5X9.0X33.3)

09180-06278

2
Out of stock

13

NUT

08316-1006A

2
Out of stock

14

CLAMP (L:45)

09404-06429

1
Out of stock

15

BRACKET, LICENSE PLATE

35927-41G30

1
Out of stock

16

WASHER, LICENSE (6.5X20X1.2)

09160-06077

1
Out of stock

17

SCREW, LICENSE

02142-0616A

2
Out of stock

18

NUT, LICENSE

08316-1006A

2
Out of stock

19

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

20

NUT, RR SIDE RR

08316-1005A

2
Out of stock
