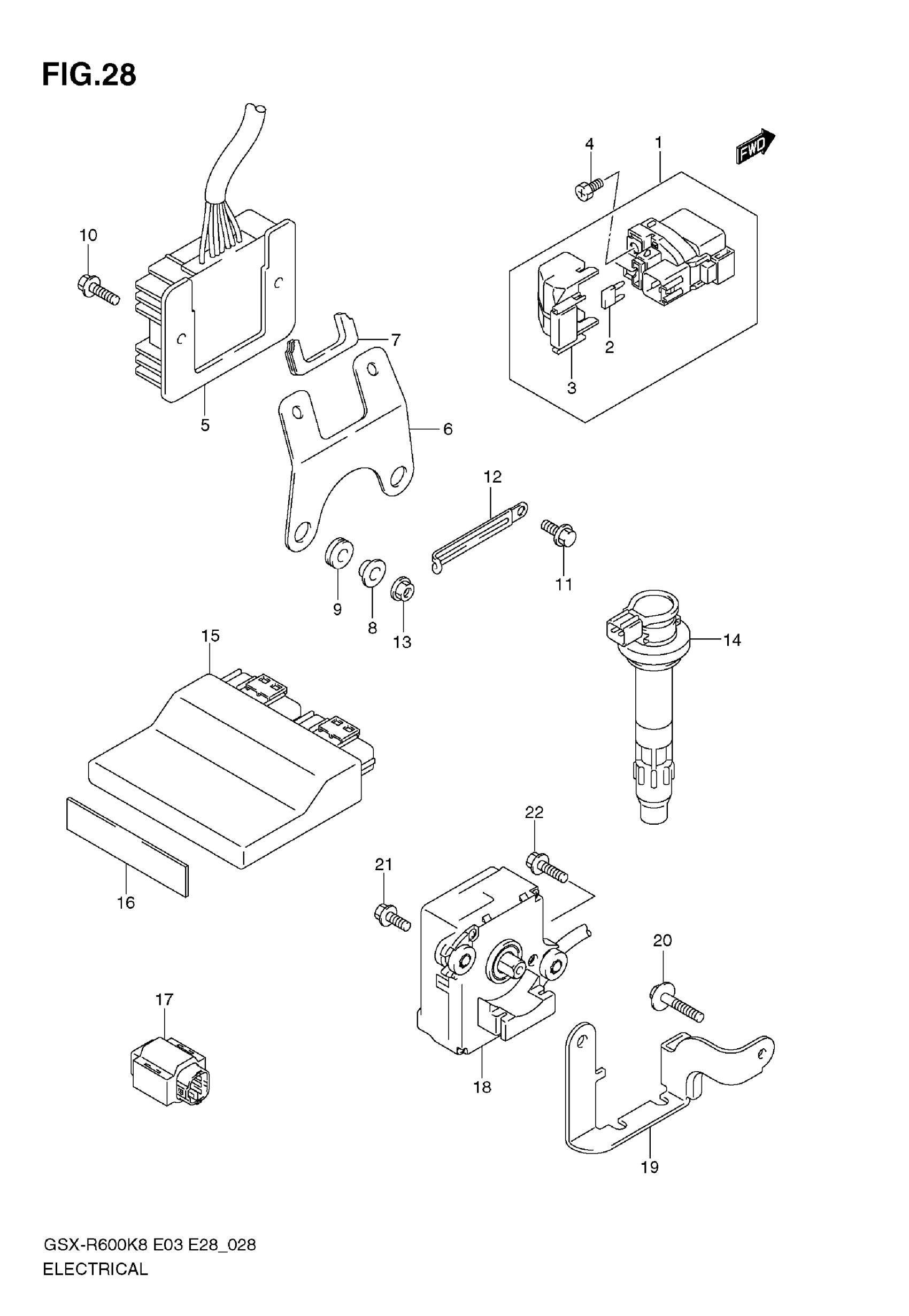

Suzuki GSX-R600 (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-41G00.

31800-41G10

$84.76

2

FUSE (30A)

09481-30501

$2.34

3

COVER, STARTER

31861-38G00

$5.52

4

BOLT (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY This part replaces 32800-18H00.

32800-47H00

$240.89

6

BRACKET, RECT FTG

32831-37H00

$14.00

7

MOLD, RECT BRKT

32835-37H00

$8.32

8

SPACER

09180-06325

$3.47

9

CUSHION (8.4X18X6)

09320-08066

$7.44

10

BOLT, RECTIFIER

01550-0625A

$1.97

11

BOLT, BRKT

01550-0616A

$1.97

12

CLAMP,PTT SW LE This part replaces 09403-11315.

09403-11328

$4.65

13

NUT, RECTIFIER

08316-1006A

$2.19

14

COIL ASSY,IGNITION

33410-37H00

$195.83

15

CONTROL UNIT, FI

32920-37H10

Unavailable

15

CONTROL UNIT, FI | E33

32920-37H20

Unavailable

16

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

17

SENSOR ASSY,FUEL CUT

33960-27G00

$124.02

18

ACTUATOR ASSY This part replaces 33970-41G00.

33970-41G02

$638.60

19

HOLDER, ACTR

33971-37H00

Unavailable

20

BOLT, ACTR (6X30)

09116-06103

$3.42

21

BOLT, ACTR HOLDER

01550-0616A

$1.97

22

BOLT, ACTR (6X25)

09116-06202

$3.19
