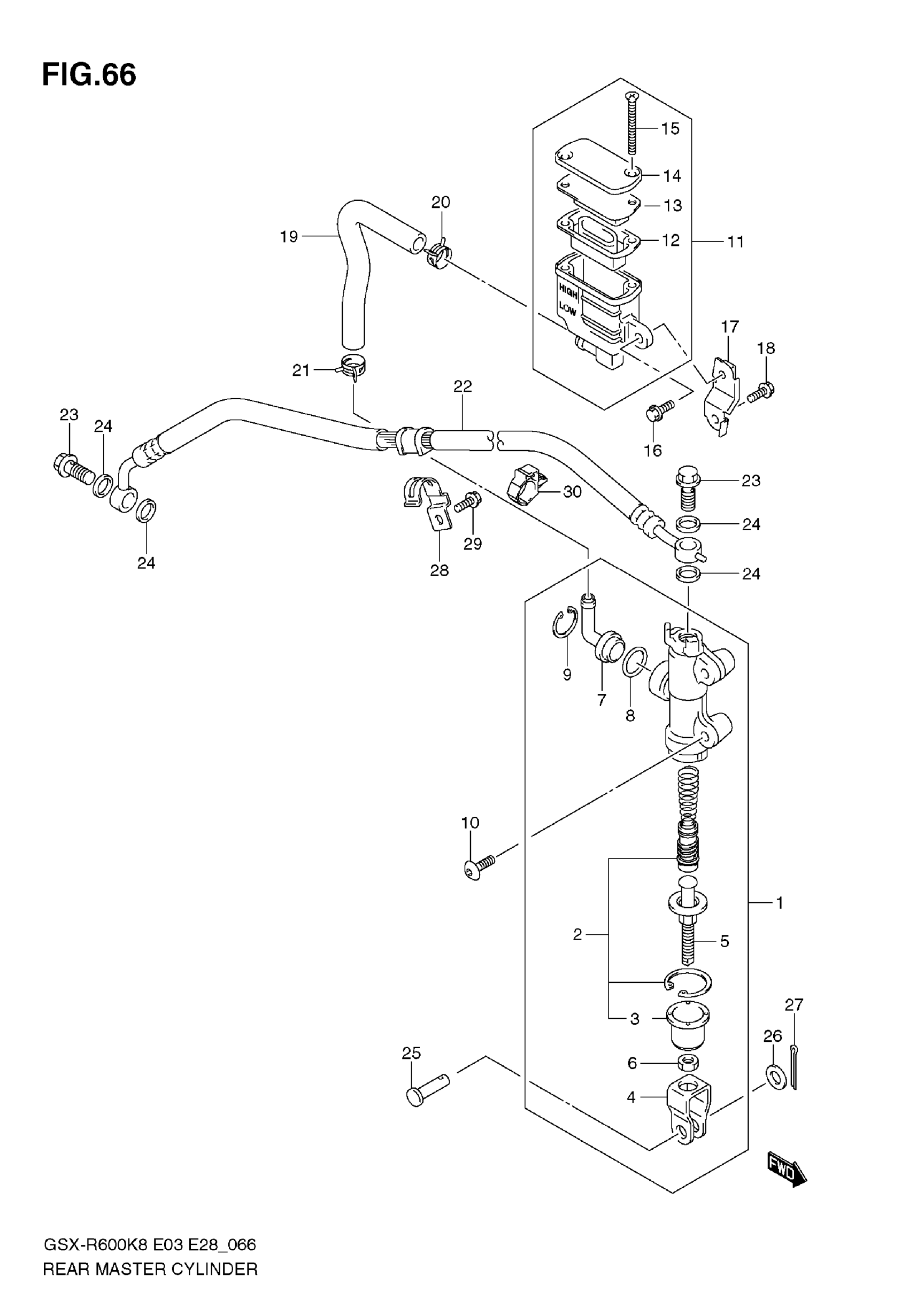

Suzuki GSX-R600 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-01H20

$266.03

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-22H00

Unavailable

5

ROD, PUSH

69670-01H00

Unavailable

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

BOLT

09139-06125

$2.93

11

TANK ASSY,RESERVOIR | Includes Item(s) 12 - 15 This part replaces 69740-01H10.

69740-18K00

$28.10

12

DIAPHRAGM

69667-01H00

$6.30

13

PLATE, DIAPHRAGM

69668-01H00

$5.98

14

CAP

69669-01H00

Unavailable

15

SCREW

69689-01H00

$4.45

16

BOLT, RESERVOIR TANK

01547-0612A

$2.03

17

BRACKET, RR RESERVOIR TANK

69750-01H00

$10.02

18

BOLT, BRACKET

01547-0612A

$2.03

19

HOSE, RESERVOIR TANK

69730-01H10

$26.60

20

CLAMP

09401-12404

$2.34

21

CLIP, LOWER

09401-14410

Unavailable

22

HOSE This part replaces 69480-01H00.

69480-01H01

$84.41

23

BOLT, BRAKE FLUID

09360-10062

$6.43

24

WASHER (10X15X1.5)

09161-10009

$1.84

25

PIN

09200-06068

$4.11

26

WASHER

08322-0106A

$1.84

27

PIN, COTTER

04111-2015A

$1.49

28

CLAMP, RR BRAKE HOSE

69268-01H00

$9.66

29

BOLT

01547-0612A

$2.03

30

GUIDE, RR BRAKE HOSE

09403-17306

$2.62
