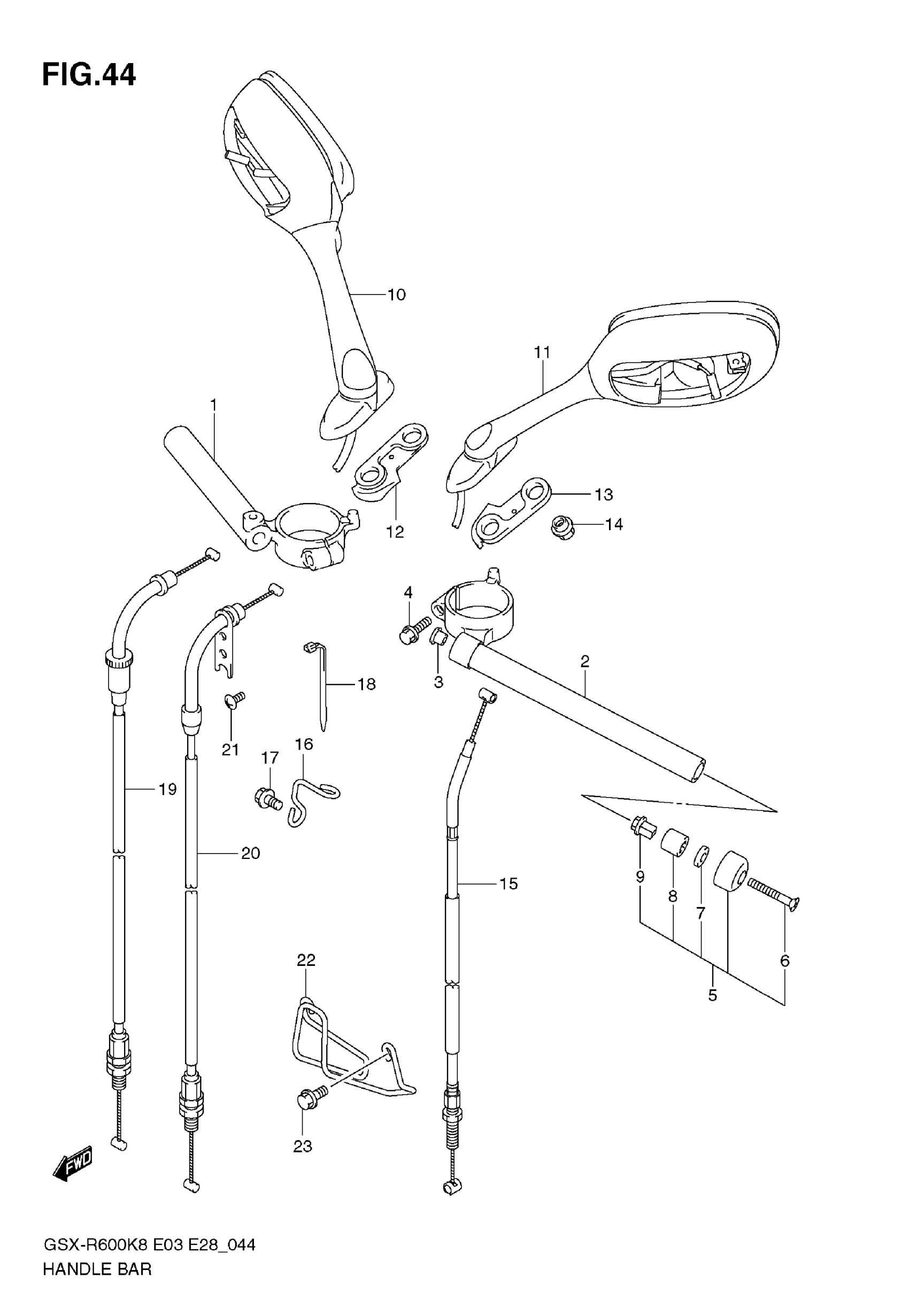

Suzuki GSX-R600 (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-01H10

$290.05

2

HANDLEBAR, LH

56151-01H10

$290.05

3

CAP,HANDLEBAR

56131-29G00

$4.09

4

BOLT

09106-08185

$2.73

5

BALANCER SET,HANDLEBAR | Includes Item(s) 6 - 9 This part replaces 56200-41822.

56200-41823

$31.13

6

SCREW

02122-0640B

$3.08

7

WASHER

09160-06131

$2.50

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

9

NUT

56273-10G10

$8.65

10

MIRROR ASSY, REAR VIEW RH

56500-41G21

$239.81

11

MIRROR ASSY, REAR VIEW LH

56600-41G21

$233.96

12

CUSHION, RH

94575-37H00

$10.67

13

CUSHION, LH

94576-37H00

$10.67

14

NUT,RR VIEW MIRROR

56619-41G01

$9.31

15

CABLE ASSY,CLUT This part replaces 58200-37H00.

58200-37H01

$28.40

16

GUIDE, CLUTCH CABLE

58621-37H00

Unavailable

17

BOLT, CLUTCH GUIDE

01547-0612A

$2.03

18

CLAMP

09407-17403

$4.91

19

CABLE ASSY,THRO This part replaces 58300-37H00.

58300-37H01

$52.32

20

CABLE ASSY,THRO This part replaces 58300-37H10.

58300-37H11

$58.13

21

SCREW, CASE

09125-05042

$1.96

22

GUIDE, THROTTLE

58622-37H00

$18.58

23

BOLT

01550-0520A

$2.26
