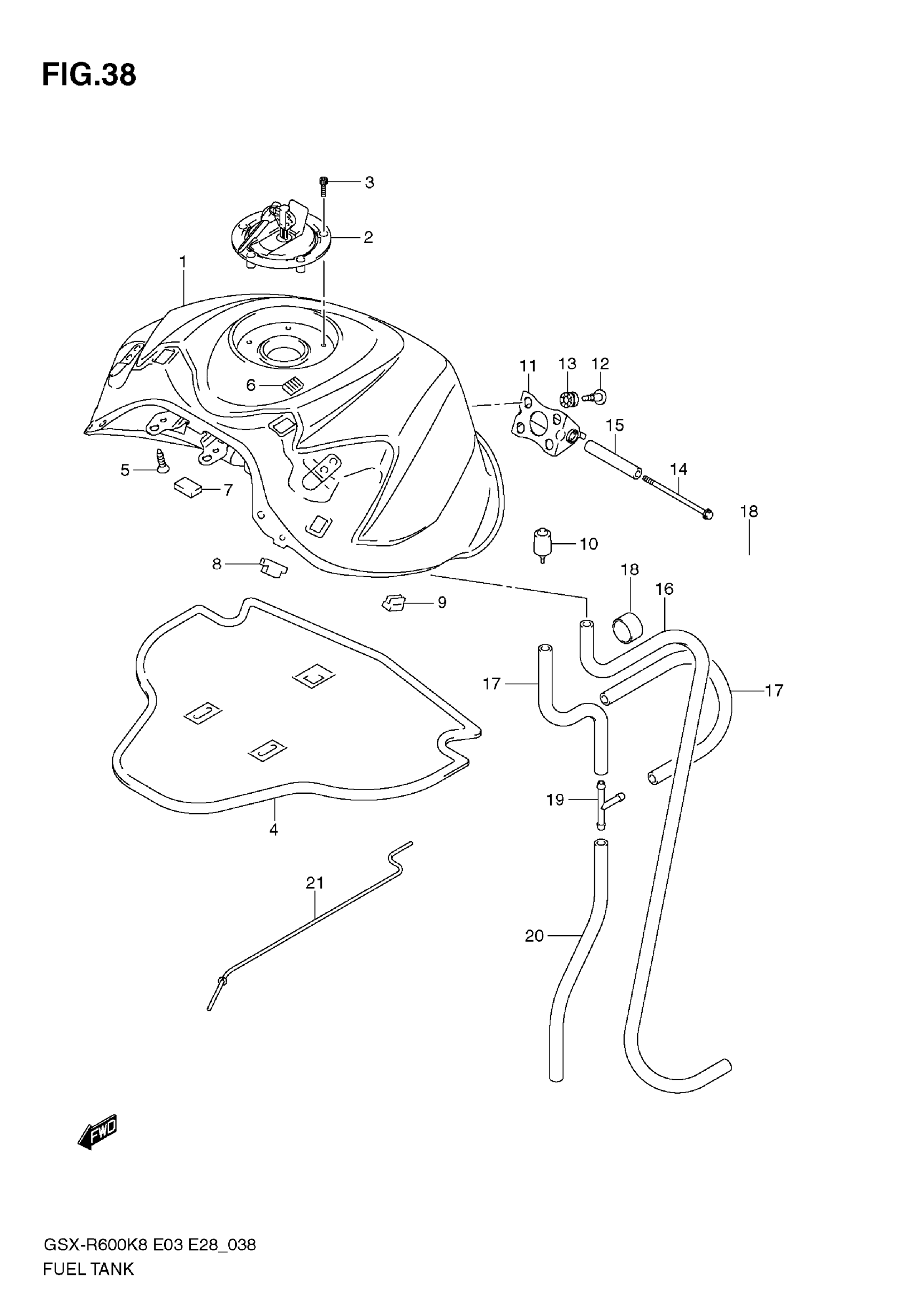

Suzuki GSX-R600 (2009) FUEL TANK (MODEL K8) Diagram

TANK ASSY,FUEL( | E3,E28 FOR CRU This part replaces 44100-37H00-019.

44100-37H01-019

$1,404.12

TANK ASSY,FUEL( | E3,E28 FOR CWH This part replaces 44100-37H00-YKY.

44100-37H01-YKY

$1,064.63

TANK ASSY,FUEL | E3,E28 FOR EDS This part replaces 44100-37H00-YMF.

44110-37H02-13L

$1,328.28

TANK ASSY,FUEL | E3,E28 FOR FGH This part replaces 44100-37H00-YME.

44110-37H02-13L

$1,328.28

TANK ASSY,FUEL | E3,E28 FOR FGF This part replaces 44100-37H00-YBD.

44100-37H01-YBD

$1,428.25

TANK ASSY,FUEL( | E33 FOR CRU This part replaces 44100-37H20-019.

44100-37H21-019

Unavailable

TANK ASSY,FUEL( | E33 FOR CWH This part replaces 44100-37H20-YKY.

44100-37H21-YKY

Unavailable

TANK ASSY, FUEL (YELLOW) | E33 FOR EDS

44100-37H20-YMF

Unavailable

TANK ASSY,FUEL( | E33 FOR FGH This part replaces 44100-37H20-YME.

44100-37H21-YME

Unavailable

TANK ASSY, FUEL (WHITE) | E33 FOR FGF

44100-37H20-YBD

Unavailable

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$242.83

SCREW

09106-05017

$2.83

SHIELD, FUEL TANK HEAT

44191-37H00

Unavailable

SCREW, BRACKET

09139-06172

$3.04

FASTENER, COVER

44572-44G00

$10.18

CUSHION, BRACKET

09329-18001

$1.91

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

CUSHION,FUEL TANK RR

44542-41G00

$7.69

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

SCREW, BRACKET

44543-37H00

$7.05

CUSHION

09320-08071

$3.25

BOLT, JOINT

09106-06119

$5.76

SPACER, JOINT

44561-18G00

$16.96

HOSE,TANK WATER This part replaces 44423-41G00.

44423-41G01

$16.82

HOSE,VACUUM This part replaces 44424-38G00.

44425-09E01

$11.28

HOSE, JOINT | L=600!10

09352-12163-600

Unavailable

.JOINT,3 WAY

09367-06002

$2.50

HOSE | L=2000!690 This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

STAY, FUEL TANK

44574-35F00

$15.16
