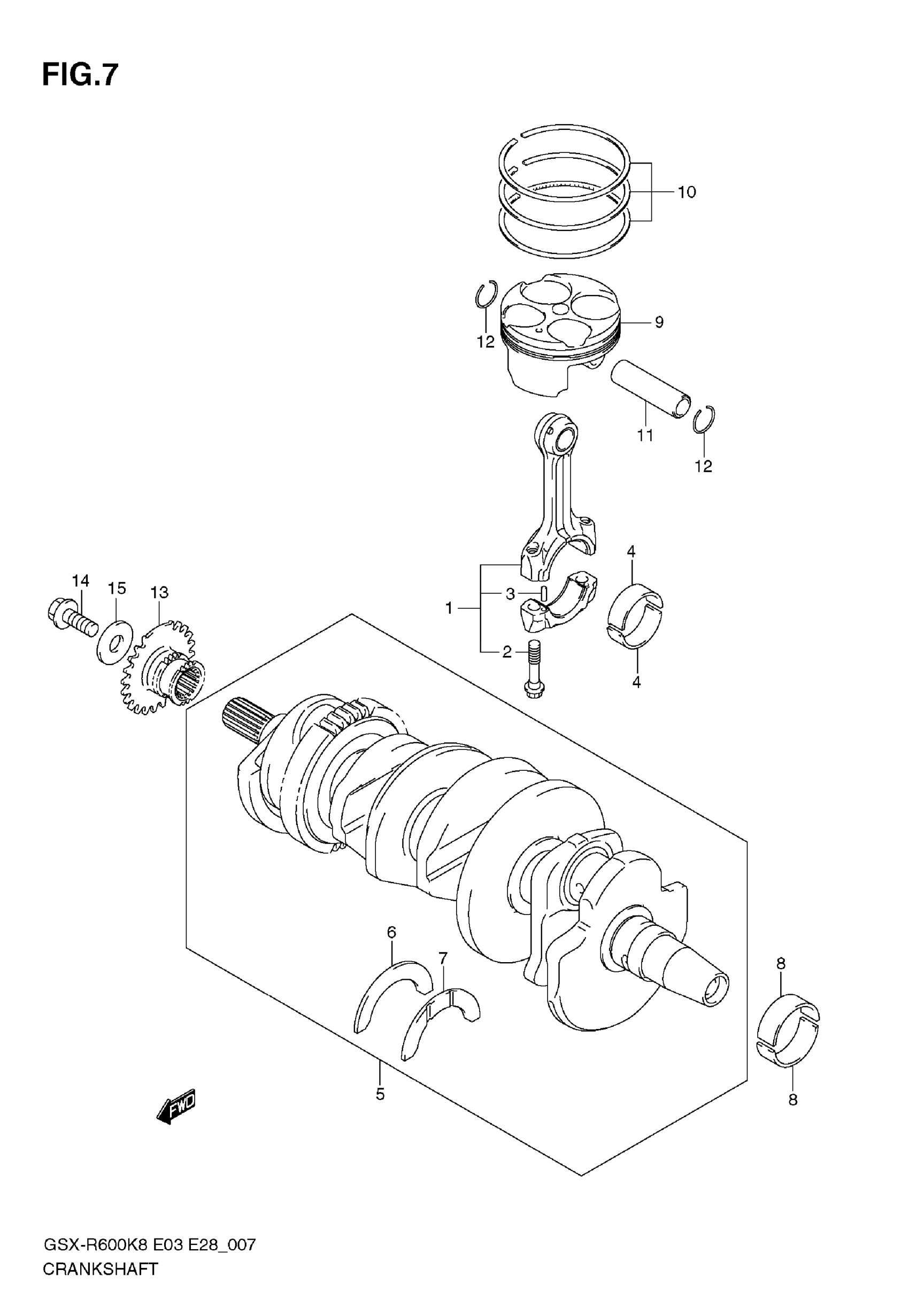

Suzuki GSX-R600 (2009) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-01H10

$224.88

2

BOLT

12163-35F00

$10.23

3

PIN (4X13.8)

04221-04089

$1.49

4

BEARING, CRANK PIN (GREEN)

12164-29G00-0A0

$13.95

4

BEARING, CRANK PIN (BLACK)

12164-29G00-0B0

$13.95

4

BEARING, CRANK PIN (BROWN)

12164-29G00-0C0

$13.95

4

BEARING, CRANK PIN (YELLOW)

12164-29G00-0D0

$14.49

5

CRANKSHAFT SET | Includes Item(s) 6 - 7 This part replaces 12000-01810.

12000-01820

$1,746.07

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING,CRANKSHAFT

12229-01H00-0A0

$18.20

8

BEARING,CRANKSHAFT

12229-01H00-0B0

$18.20

8

BEARING,CRANKSHAFT

12229-01H00-0C0

$18.20

8

BEARING,CRANKSHAFT

12229-01H00-0D0

$18.28

8

BEARING,CRANKSHAFT

12229-01H00-0E0

$22.22

9

PISTON

12111-37H00-0F0

$203.93

10

RING SET,PISTON

12140-29G20

$87.30

11

PIN, PISTON

12151-39F00

$14.90

12

RING

09381-14001

$1.49

13

SPROCKET, CAM CHAIN

12731-01H00

$130.35

14

BOLT

09103-10189

$4.04

15

WASHER

08211-10285

$3.49
