Description

Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 11 This part replaces 17400-01H00-E00.

17400-01H01

$278.90

2

IMPELLER

17491-17E01

$26.78

3

GASKET

09168-06025

$2.92

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5)

09283-10004

$4.96

6

WASHER

09181-10167

$1.97

7

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

8

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

9

.O-RING

17435-33400

$15.29

10

BOLT (6X13)

09100-06099

$2.00

11

LOCK WASHER

09164-06006

$2.61

12

BOLT

01547-0635A

$2.30

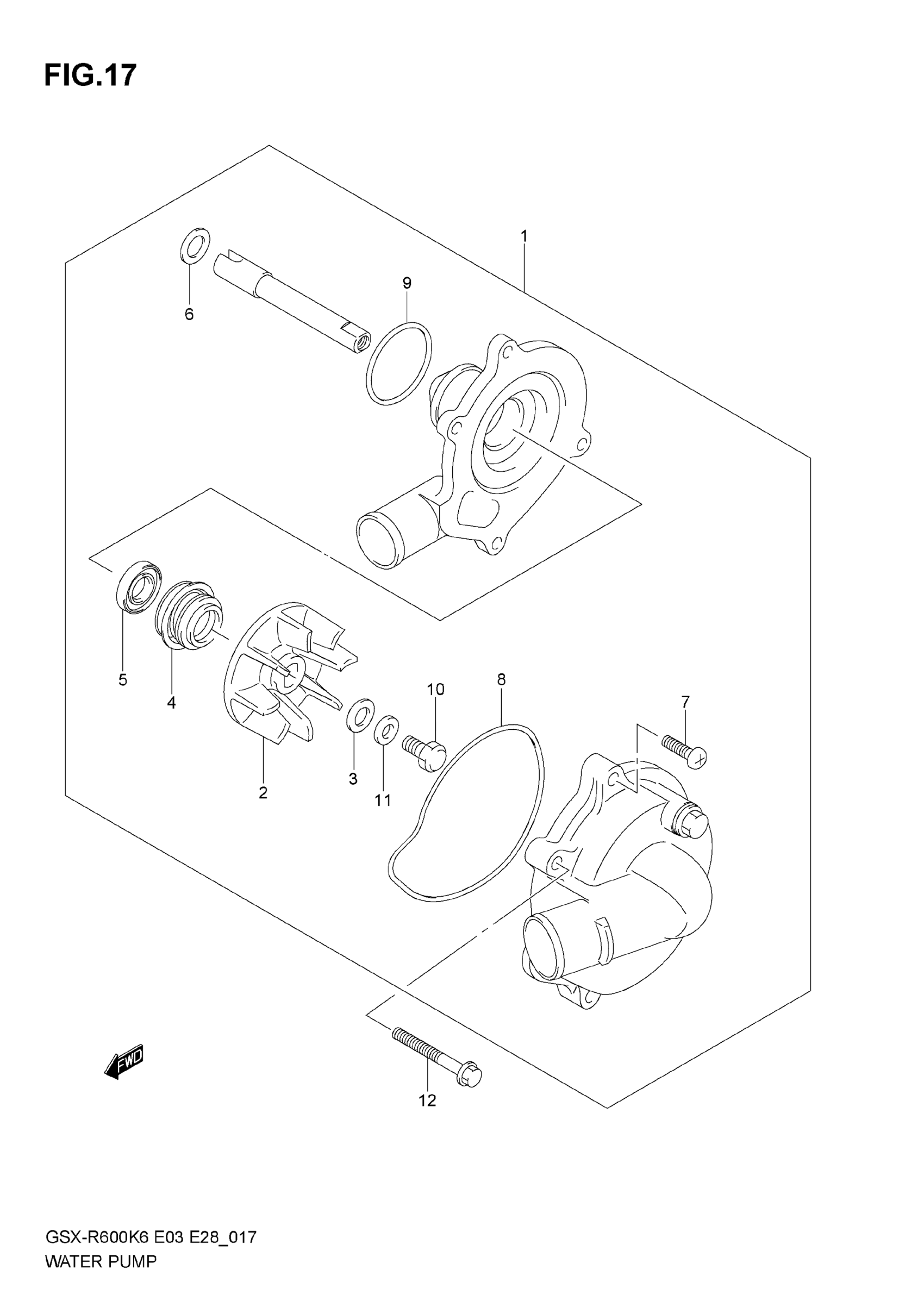

Suzuki GSX-R600 (2007) WATER PUMP Diagram
