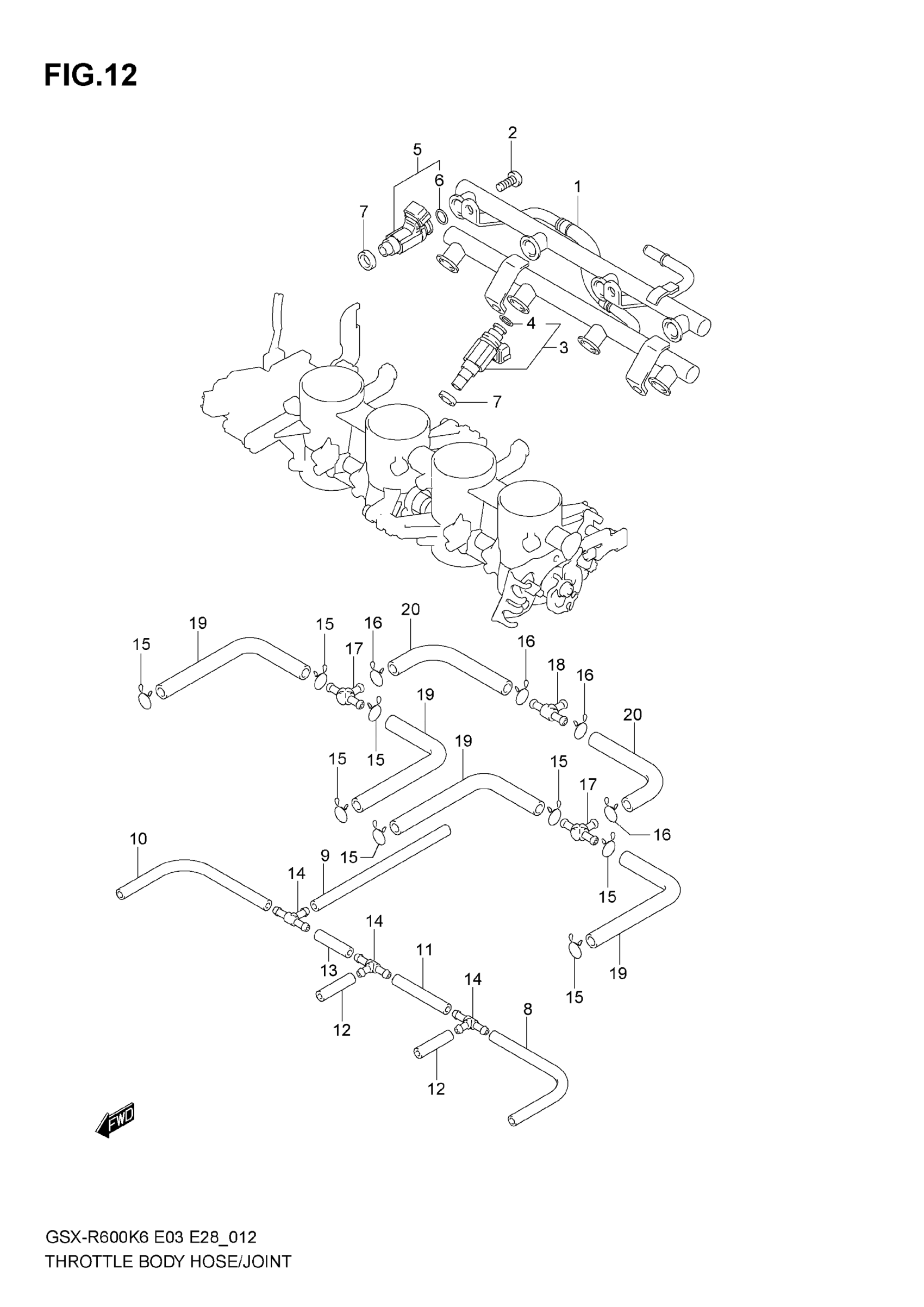

Suzuki GSX-R600 (2007) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DELIVERY PIPE ASSY

15730-01H00

Unavailable

2

SCREW

13602-06128

$2.96

3

INJECTOR ASSY | Includes Item(s) 4

15710-01H00

$333.68

4

O RING

15717-16G00

$11.70

5

INJECTOR ASSY | Includes Item(s) 6

15710-48G00

$269.36

6

O RING

15717-16G00

$11.70

7

SEAL

15722-29G00

$10.93

8

HOSE This part replaces 13683-29G00.

13683-29G01

$8.10

9

HOSE This part replaces 13683-01H00.

13683-01H01

$10.37

10

HOSE (L:425) | L:425!80 This part replaces 13683-10F60.

13683-10F61

$17.10

11

HOSE(3.2X7.4X22 | L:225!40 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

12

HOSE (L:425) | L:425!25 This part replaces 13683-10F60.

13683-10F61

$17.10

13

HOSE (L:425) | L:425!30 This part replaces 13683-10F60.

13683-10F61

$17.10

14

3WAY,VACUUM HOSE

13685-02FA0

$7.05

15

CLIP | E33

13671-29G00

Unavailable

16

CLIP | E33

13671-06A10

Unavailable

17

NIPPLE | E33

13685-29G00

Unavailable

18

.NIPPLE | E33

13685-48B00

$12.15

19

HOSE | E33

13683-01H10

Unavailable

20

HOSE | E33

13683-29G30

Unavailable
