Description

Price

1

SPEED & TACHOMETER ASSY

34120-01H20

Unavailable

1

SPEED & TACHOMETER ASSY | E28

34120-01H30

Unavailable

2

CASE, UPPER | Includes Item(s) 3

34150-01H20

$163.80

3

SWITCH, RUBBER

34124-39G00

$8.42

4

CASE, LOWER

34111-01H00

$86.92

5

SCREW (3X16)

09132-03008

$1.53

6

CUSHION

34955-33E00

$3.56

7

CLAMP (L:45)

09404-06429

$1.83

8

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

9

SCREW

34149-18G00

$2.53

10

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

11

SENSOR, SPEED

34990-35F00

$127.72

12

BOLT

07120-0512A

$2.28

13

BOLT, SPEED ROTOR

07130-0825A

$3.04

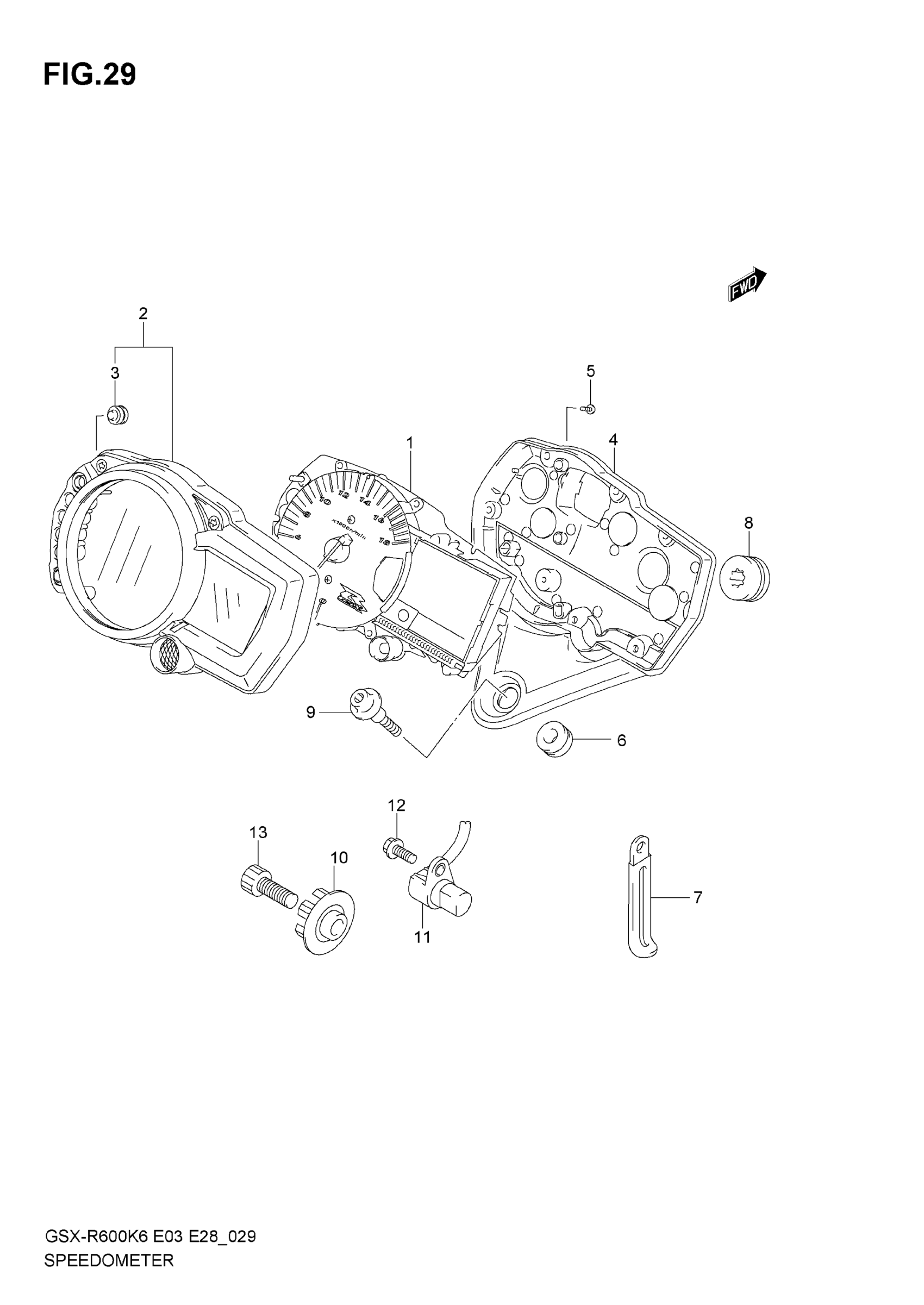

Suzuki GSX-R600 (2007) SPEEDOMETER Diagram
