Description

Price

1

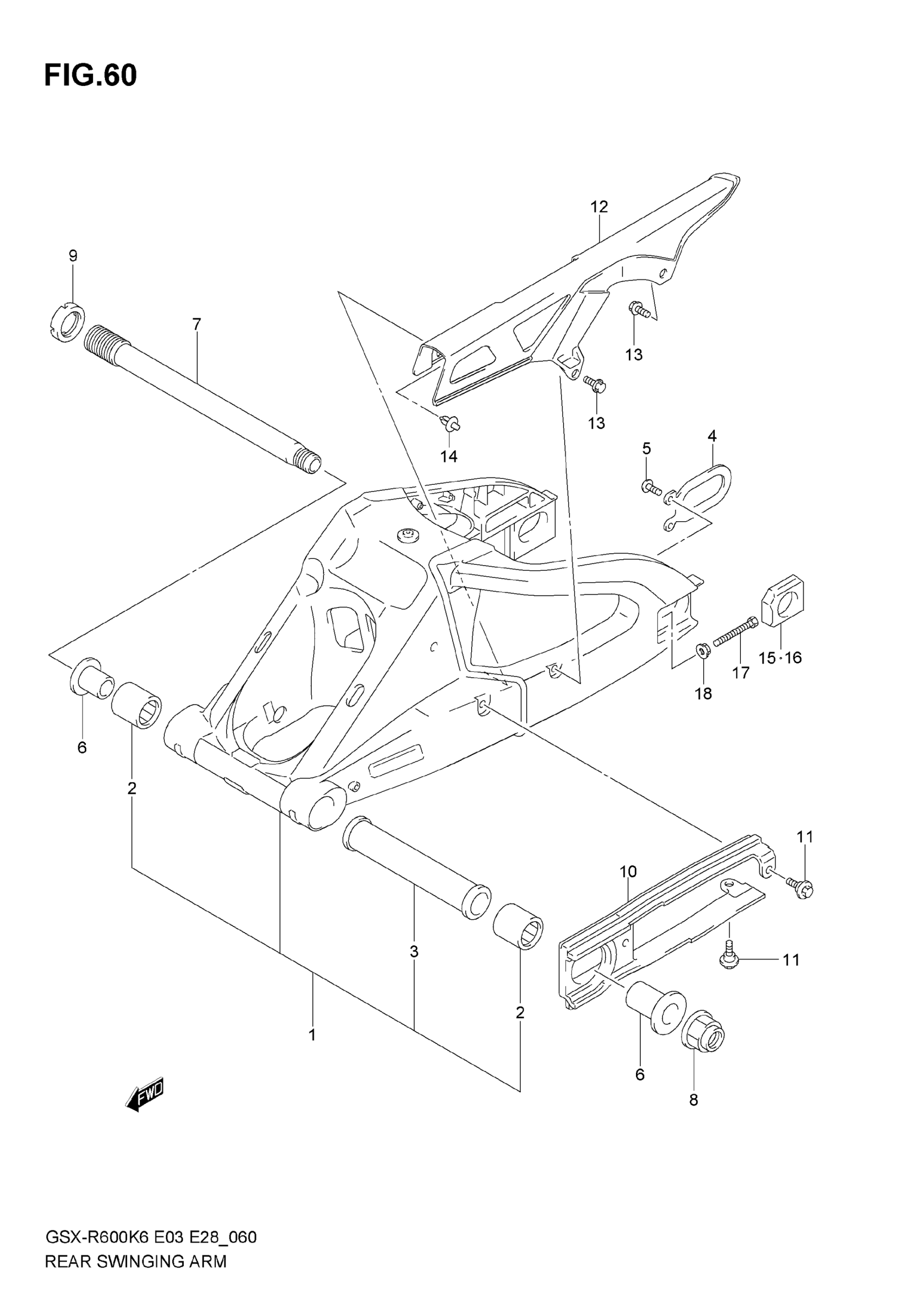

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 3

61000-01H00-YAP

Unavailable

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

3

SPACER, CENTER

61281-41G00

$55.68

4

PLATE,RR SWGARM BRKT This part replaces 61124-41G00-A05.

61124-41G00

$8.73

5

SCREW This part replaces 09125-06073-A05.

09125-06073

$1.84

6

SPACER, BEARING This part replaces 61251-41G00-A05.

61251-41G00

$38.37

7

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$171.00

8

NUT This part replaces 09159-20006-A05.

09159-20006

$27.12

9

NUT, PIVOT This part replaces 61214-42E00-A05.

61214-42E10

$42.53

10

BUFFER,CHAIN TO This part replaces 61273-01H00.

61273-01H01

$38.97

11

BOLT (6X17.8) This part replaces 09111-06072-A05.

09111-06072

$2.03

12

CASE, CHAIN | MODEL K6 This part replaces 61311-01H00.

61311-01H10

$36.60

12

CASE, CHAIN | MODEL K7 This part replaces 61311-01H01.

61311-01H10

$36.60

13

BOLT

09103-06289

$2.26

14

CLIP

09409-08308-5ES

$1.97

15

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$47.20

16

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00
