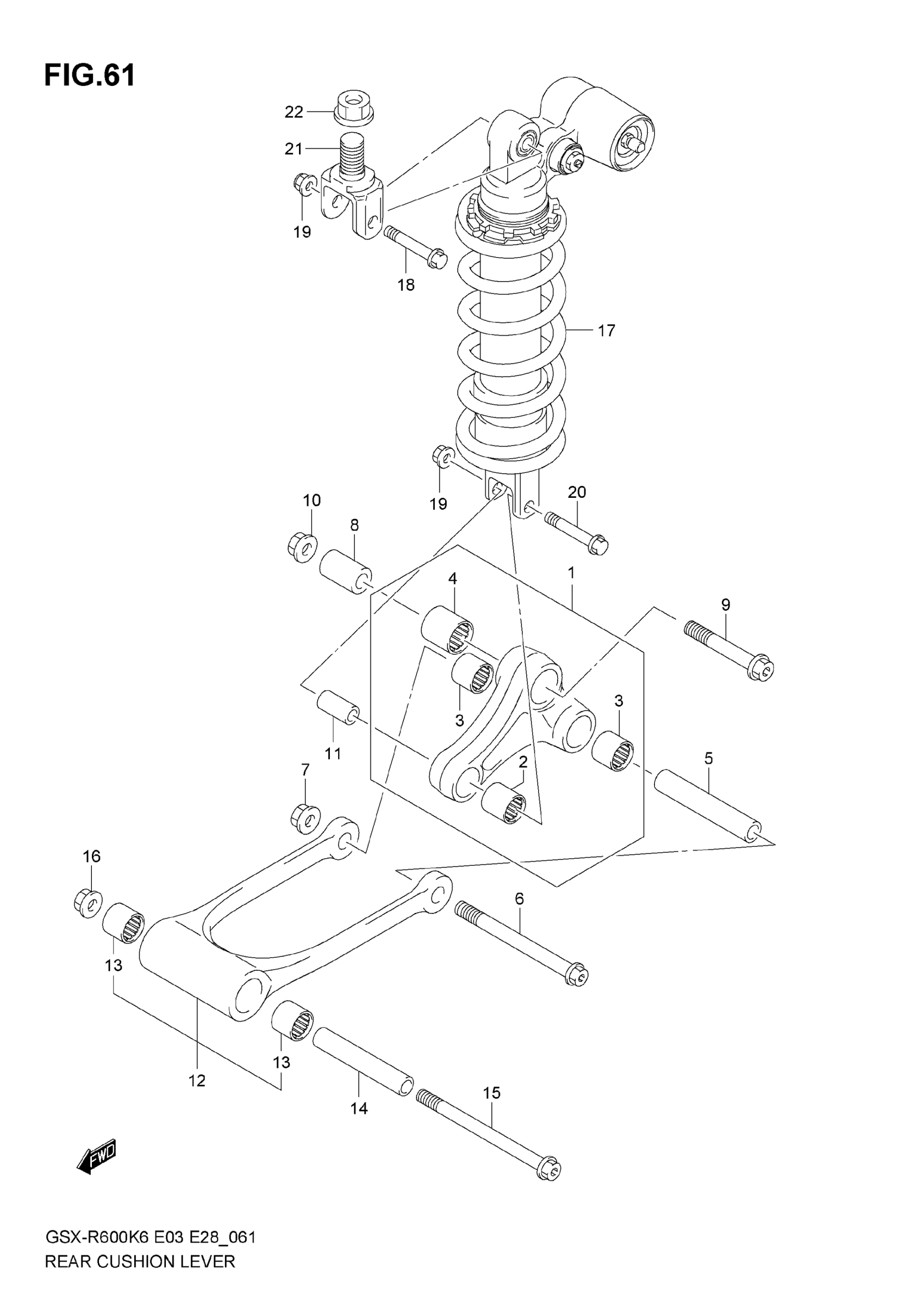

Suzuki GSX-R600 (2007) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CU | Includes Item(s) 2 - 4 This part replaces 62601-01850.

62601-01853

$401.20

2

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

5

SPACER, LOWER

62646-08G00

$36.78

6

BOLT, LOWER

62621-42E10

$26.68

7

NUT This part replaces 09159-12056-A05.

09159-12056

$7.37

8

SPACER, UPPER

62317-27C10

$16.76

9

BOLT, FRONT This part replaces 62658-35F00-A05.

62658-35F00

$40.48

10

NUT This part replaces 09159-12056-A05.

09159-12056

$7.37

11

SPACER, FRONT

62684-40A10

$12.15

12

ROD SET,RR CUSH | Includes Item(s) 13 This part replaces 62601-01860.

62601-01861

Unavailable

13

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

14

SPACER, ROD

62626-33D00

$21.19

15

BOLT, ROD

62621-01H00

Unavailable

16

NUT This part replaces 09159-12056-A05.

09159-12056

$7.37

17

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-01H10-163

Unavailable

17

ABSORBER ASSY, REAR SHOCK | E28

62100-01H00-163

Unavailable

18

BOLT (10X55) This part replaces 09103-10143-A05.

09103-10143

$4.52

19

NUT, REAR SWGARM BRACKET This part replaces 09159-10058-A05.

09159-10115

$3.55

20

BOLT (10X55) This part replaces 09103-10143-A05.

09103-10143

$4.52

21

BRACKET, ABSORBER

62993-35F00

Unavailable

22

NUT This part replaces 09159-20006-A05.

09159-20006

$27.12
