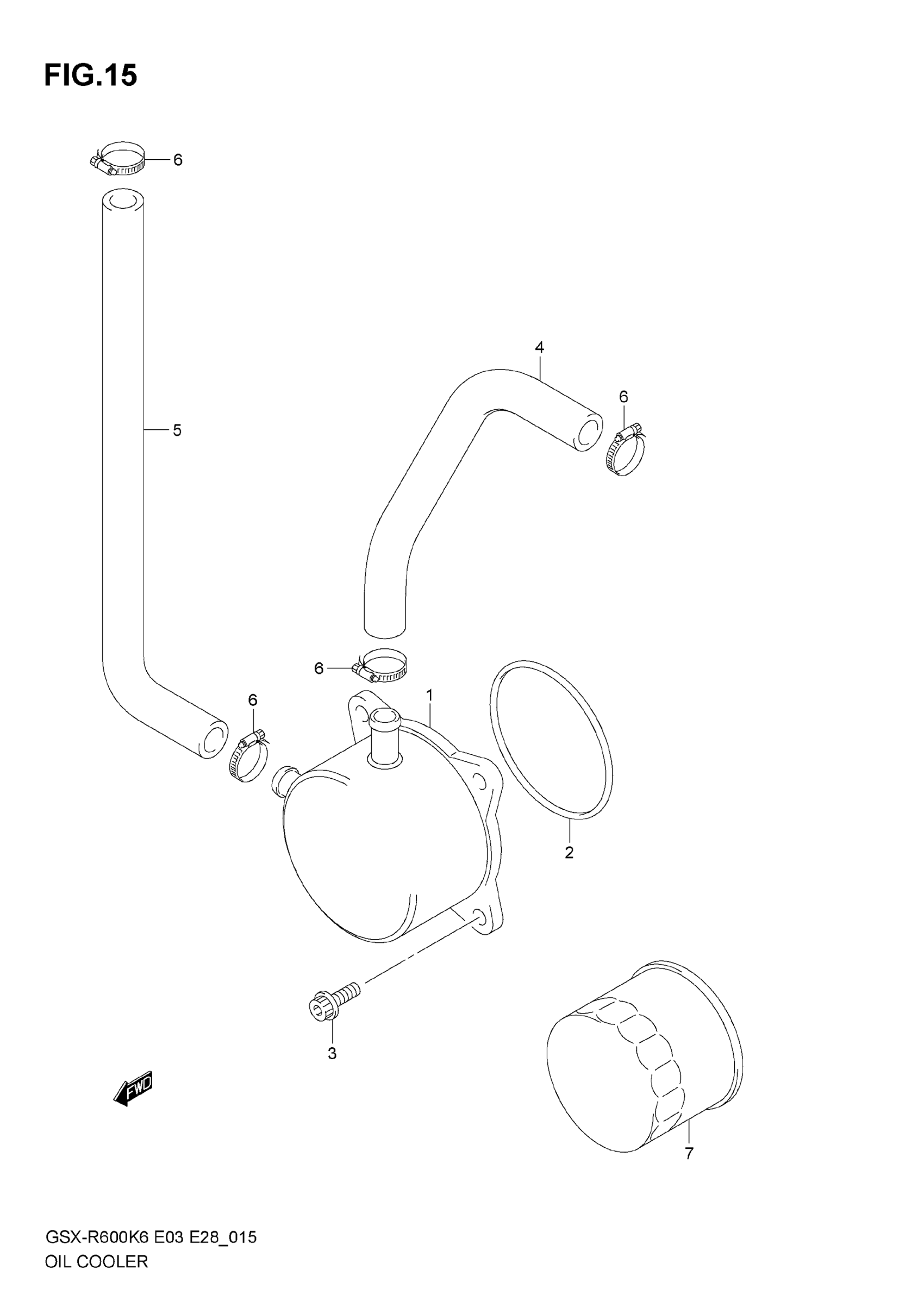

Suzuki GSX-R600 (2007) OIL COOLER Diagram

#

Description

Price

1

COOLER ASSY,OIL

16600-01H00

$662.42

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

3

BOLT (6X16) This part replaces 09106-06099-A05.

09106-06099

$2.82

4

HOSE,OIL COOLER WATER INLET

16461-01H00

$19.78

5

HOSE, OUTLET

16471-01H00

$24.42

6

CLAMP This part replaces 09402-22511-A05.

09402-22512

$8.62

7

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10
