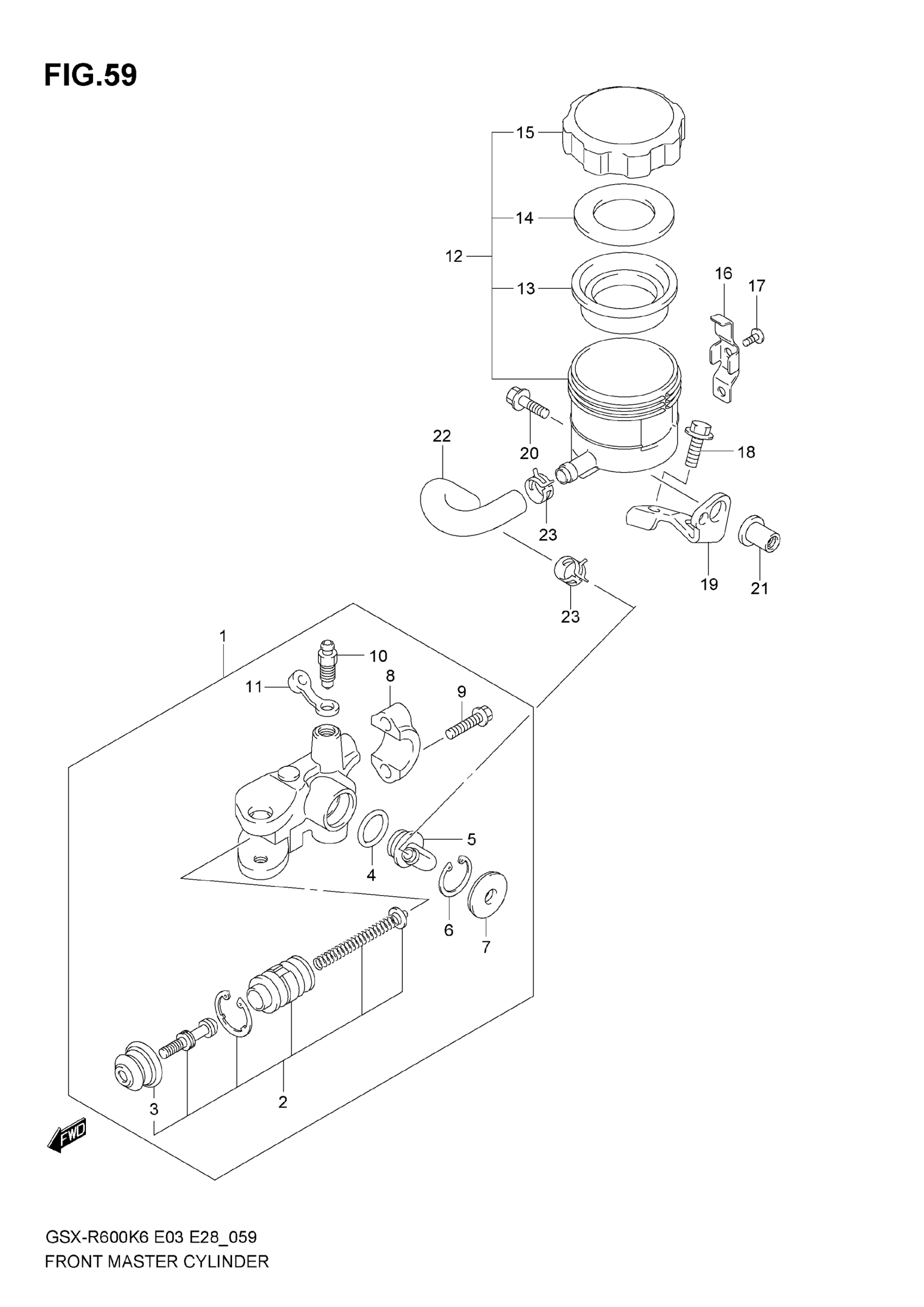

Suzuki GSX-R600 (2007) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,F | Includes Item(s) 2 - 11 This part replaces 59600-01H00.

59600-47H10

$271.85

2

.PISTON/CUP SET This part replaces 59600-29810.

59600-29821

$71.72

3

BOOT

59666-29G00

$12.35

4

O RING

69686-34200

$2.93

5

CONNECTOR

59672-17C00

$9.31

6

CIRCLIP

69674-00B20

$3.97

7

COVER, DUST

59673-17C00

$8.65

8

.HOLDER

59671-36500

$12.21

9

BOLT

59675-02FA0

$3.82

10

BLEEDER

59121-01A00

$8.73

11

CAP, BLEEDER

59122-01A00

$4.34

12

TANK ASSY, RESERVOIR | Includes Item(s) 13 - 15

59740-07D00

$60.40

13

DIAPHRAGM

59667-18441

$10.28

14

PLATE

59668-18441

$4.52

15

CAP

59669-07D00

$31.72

16

PLATE, TANK CAP

59743-17C00

$9.31

17

SCREW

02142-0410A

$1.49

18

BOLT

09111-05004-A05

Unavailable

19

BRACKET, RESERVOIR TANK

59751-01H00

Unavailable

20

BOLT

01547-0612A

$2.03

21

NUT

09159-05048

$7.22

22

HOSE,FRONT RESERVOIR TANK This part replaces 59731-01H00.

59731-47H00

$16.52

23

CLAMP, HOSE

59735-17C00

$4.93
