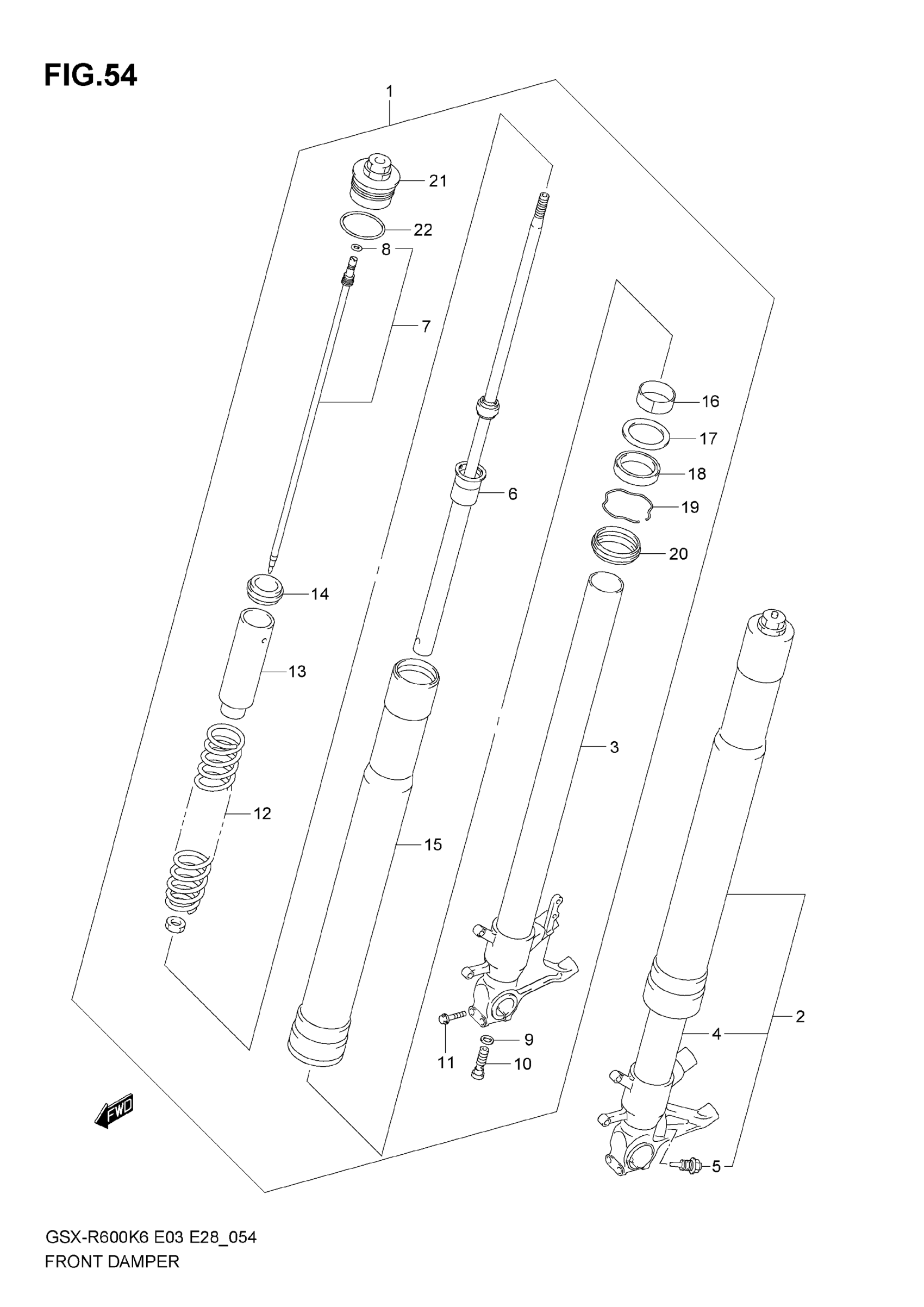

Suzuki GSX-R600 (2007) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-01H00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-01H00

Unavailable

3

TUBE, INNER RH

51110-01H00

$794.73

4

TUBE, INNER LH

51120-01H00

$794.73

5

PIECE, ADJUSTER LOWER

51830-01H00

Unavailable

6

ROD, DAMPER

52110-01H00

Unavailable

7

PUSH ROD

51821-01H00

$46.60

8

O RING

09280-03002

$1.49

9

WASHER (10X15X1.5)

09161-10009

$1.84

10

BOLT

51147-17C00

$22.65

11

BOLT, AXLE HOLDER

51166-35F00

$7.50

12

SPRING

51171-01H00

Unavailable

13

SPACER, SPRING

51176-29G00

$22.44

14

.GUIDE,SPRING UPR

51175-22D00

$20.33

15

TUBE, OUTER

51131-01H00

Unavailable

16

BUSH, GUIDE

51152-17G00

$14.26

17

SPACER, SEAL

51168-01H00

$6.52

18

SEAL, OIL

51153-01H00

$26.91

19

RING, STOPPER

51556-38B00

$7.22

20

SEAL, DUST

51173-01H00

$11.64

21

BOLT, FORK

51189-01H00

$156.92

22

..O-RING,FORK BOLT

51187-01H00

$6.79
