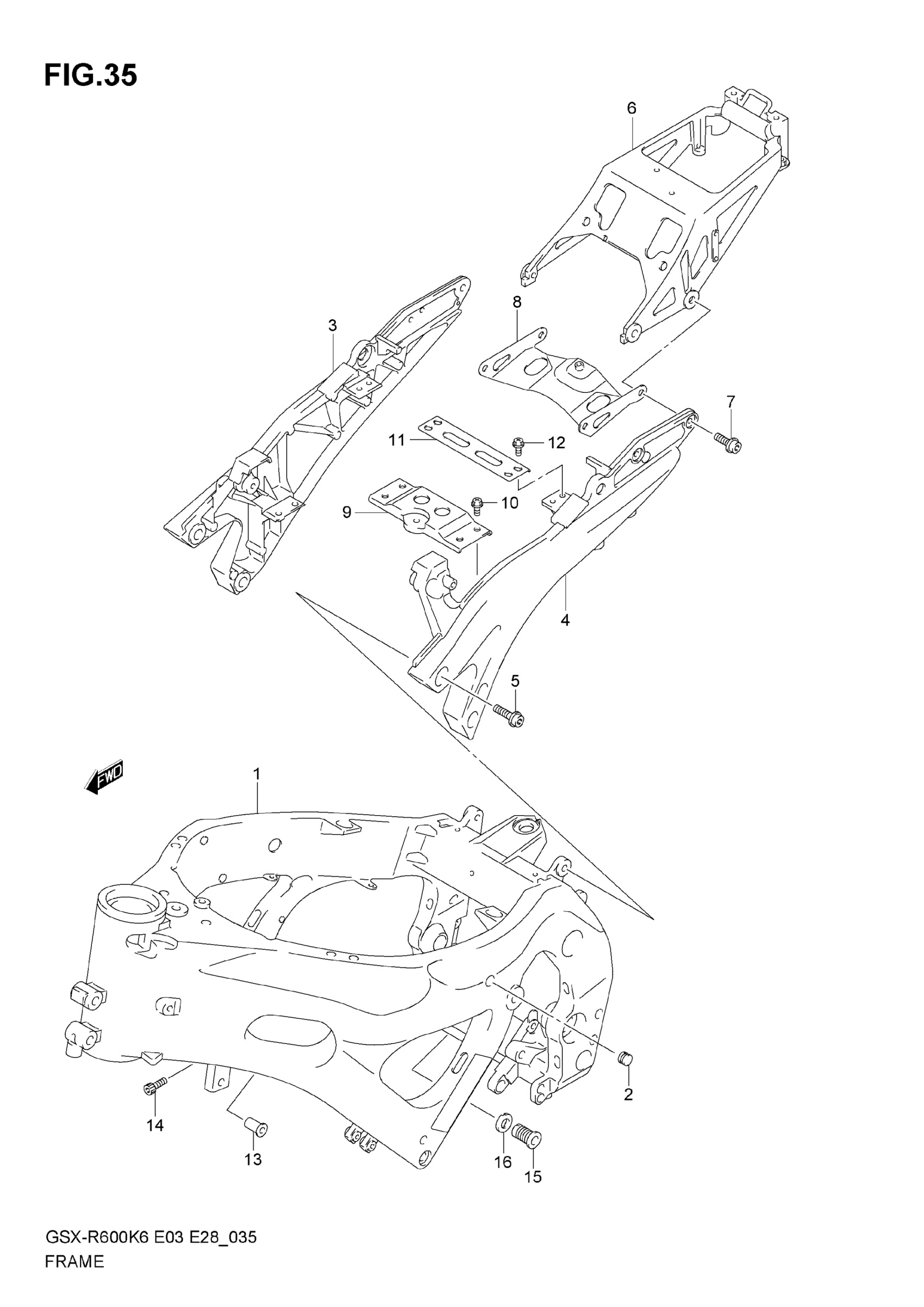

Suzuki GSX-R600 (2007) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) This part replaces 41100-01H00-YAP.

41100-01H10-YAP

Unavailable

2

PLUG, TANK RAIL This part replaces 43585-01H00.

43585-01H01

$4.78

3

RAIL, SEAT RH (BLACK)

41211-01H00-YAP

$477.70

4

RAIL, SEAT LH (BLACK)

41221-01H00-YAP

$477.70

5

BOLT,SEAT RAIL This part replaces 41233-18G00.

41233-18G20

$8.65

6

BRACKET, PILLION SEAT

41231-41G10

$541.77

7

BOLT, STUD This part replaces 07120-08203-A05.

07120-0820B

$3.49

8

BRIDE, SEAT RAIL REAR

41240-01H00

Unavailable

9

BRIDGE,SEAT RAIL FR

41770-01H00

$61.13

10

BOLT (6X12) This part replaces 09103-06083-A05.

09103-06285

$1.97

11

PLATE, SEAT RAIL UPPER

41251-01H00

$24.75

12

BOLT (6X12) This part replaces 09103-06083-A05.

09103-06285

$1.97

13

SPACER

41911-40F01

$22.56

14

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

15

BOLT, CRANKCASE ADJUST

41921-35F00

$54.83

16

NUT

41922-18G00

$36.72
