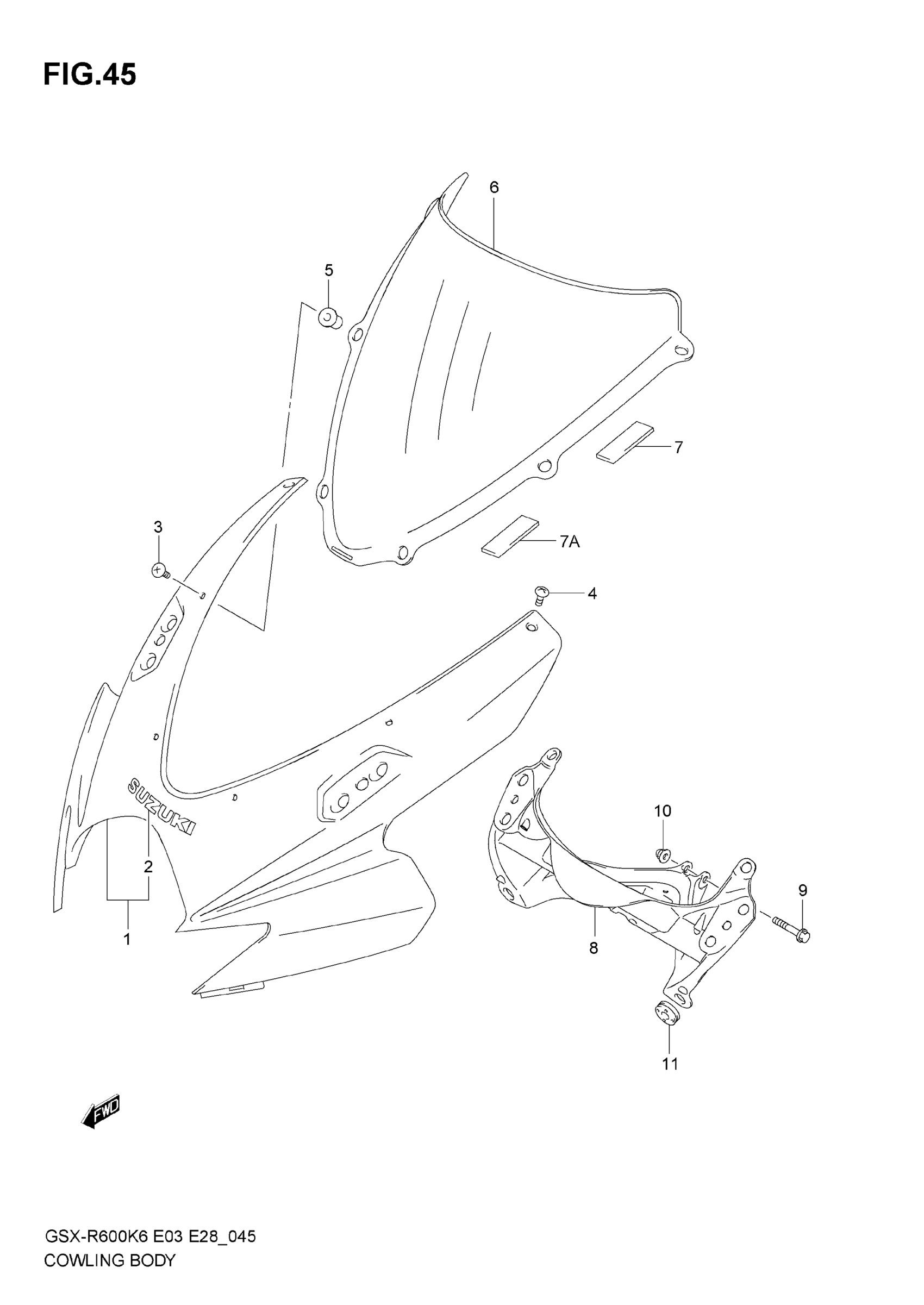

Suzuki GSX-R600 (2007) COWLING BODY Diagram

#

Description
Price

1

BODY ASSY,COWLI | FOR BZG,DYJ This part replaces 94401-01H00-YHH.

94401-01H01-YHH

Unavailable

1

BODY ASSY,COWLI | FOR CAD,CRU This part replaces 94401-01H00-019.

94401-01H01-019

$338.92

1

BODY ASSY,COWLI | FOR CWH,DYH This part replaces 94401-01H00-YKY.

94401-01H01-YKY

$377.63

1

BODY ASSY,COWLI | FOR CWJ; Includes Item(s) 2 - 2 This part replaces 94401-01H00-YD8.

94401-01H01-YD8

$343.33

2

.EMBLEM,"SUZUKI" (BLACK) | FOR YHH,YD8 This part replaces 68641-19F00-019.

68281-24F11-019

$10.89

2

EMBLEM,"SUZUKI" | FOR 019 This part replaces 68641-19F00-YU8.

68641-19F01-YU8

$9.92

2

EMBLEM,"SUZUKI" | FOR YKY This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

3

SCREW, FRONT

09125-05133

$2.19

4

SCREW, REAR

09125-05134

$2.22

5

NUT

09159-05019

$7.14

6

WINDSCREEN | Includes Item(s) 7 - 7A

94610-01H01

$262.75

7

TAPE

94443-06G00

$3.25

7A

CUSHION

94612-01H00

$4.91

8

BRACE, COWLING

94511-01H00

$287.43

9

BOLT

01550-0840A

$3.05

10

NUT

08313-2008A

$2.50

11

CUSHION

09320-08028

$3.04
