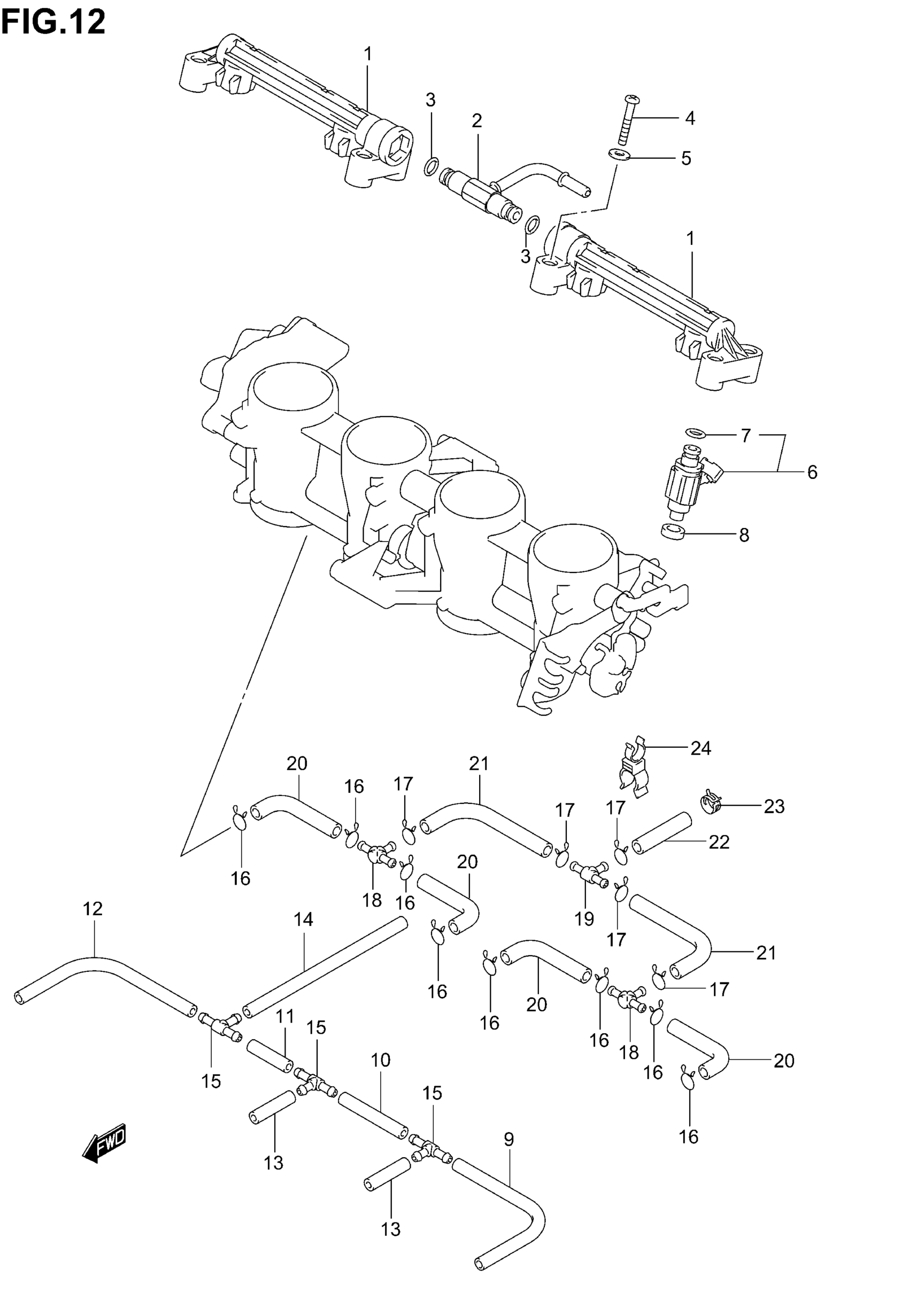

Suzuki GSX-R600 (2005) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DELIVERY PIPE

13471-29G00

Unavailable

2

NIPPLE ASSY

13473-29G00

$96.22

3

O-RING This part replaces 15721-29G00.

15721-08J00

$10.52

4

SCREW

13601-29G00

$3.43

5

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

6

INJECTOR ASSY | Includes Item(s) 7

15710-17G00

$321.43

7

O RING

15717-16G00

$11.70

8

SEAL

15722-29G00

$10.93

9

HOSE(3.2X7.4X22 | L:225!125 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

10

HOSE(3.2X7.4X22 | L:225!45 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

11

HOSE(3.2X7.4X22 | L:225!30 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

12

HOSE(3.2X7.4X22 | L:225!80 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

13

HOSE(3.2X7.4X22 | L:225!25 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

14

HOSE(3.2X7.4X22 | L:225!70 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

15

3WAY,VACUUM HOSE

13685-02FA0

$7.05

16

CLIP | E33

13671-29G00

Unavailable

17

CLIP | E33

13671-06A10

Unavailable

18

NIPPLE | E33

13685-29G00

Unavailable

19

.NIPPLE | E33

13685-48B00

$12.15

20

HOSE | E33

13683-29G10

Unavailable

21

HOSE | E33

13683-29G30

Unavailable

22

HOSE | E33

13683-29G20

Unavailable

23

CLIP | E33

09401-11413

$2.26

24

CLAMP | E33

09408-00174

Unavailable
