Description

Price

1

SPEED & TACHOMETER ASSY (MILE)

34120-29G20

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | E28

34120-29G00

Unavailable

2

CASE, UPPER | Includes Item(s) 3

34150-18G00

$119.18

3

SWITCH, LEVER

34124-24F00

$8.83

4

CASE, LOWER

34111-18G00

$84.43

5

CUSHION, METER

34955-33E00

$3.56

6

SCREW (3X16)

34383-35F00

$3.23

7

SCREW

34149-18G00

$2.53

8

ROTOR,SPEED | MODEL K4 This part replaces 34981-35F00.

34981-38G01

$17.92

8A

ROTOR,SPEED | MODEL K5 This part replaces 34981-38G00.

34981-38G01

$17.92

9

SENSOR, SPEED

34990-35F00

$127.72

10

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

11

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

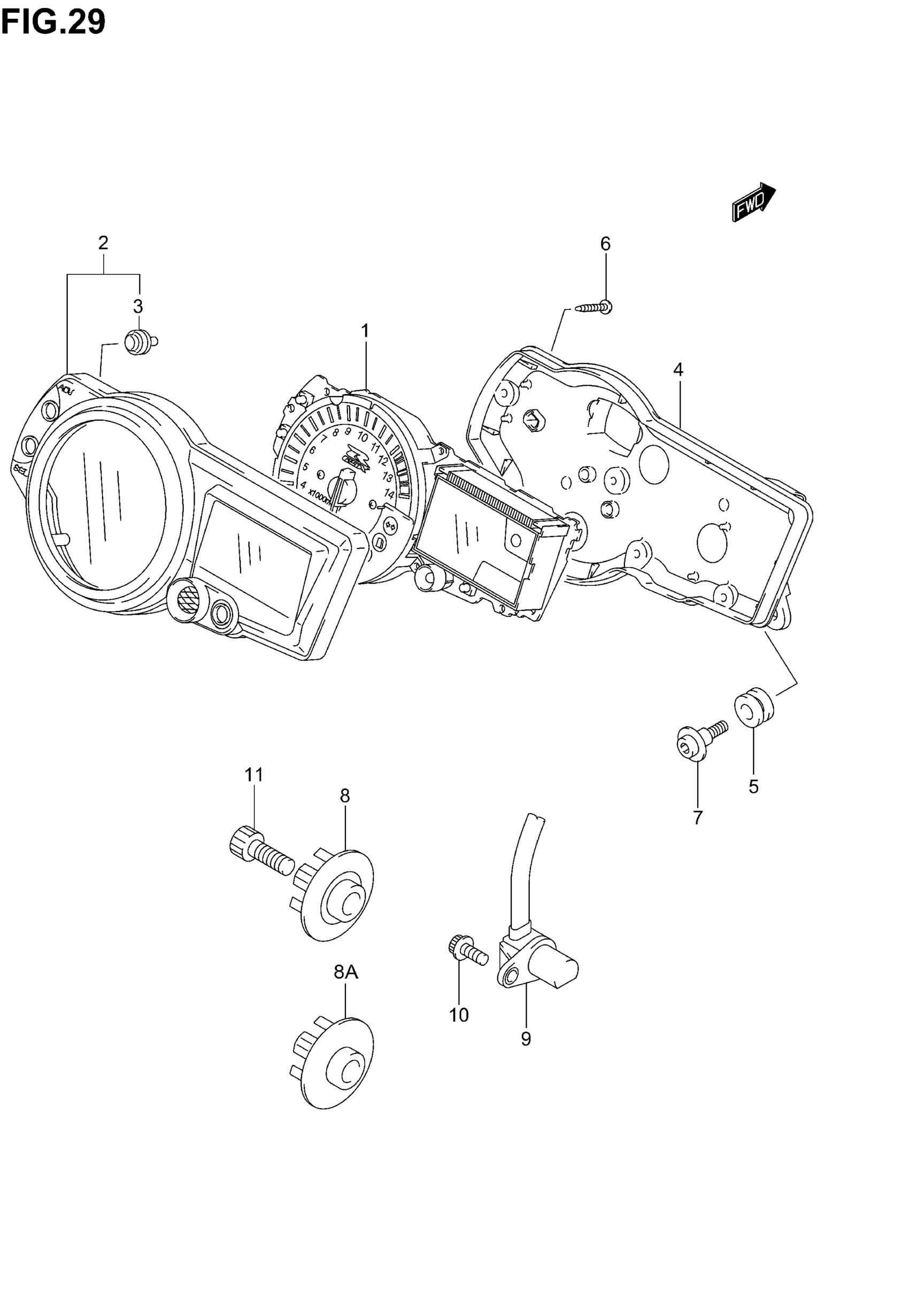

Suzuki GSX-R600 (2005) SPEEDOMETER Diagram
