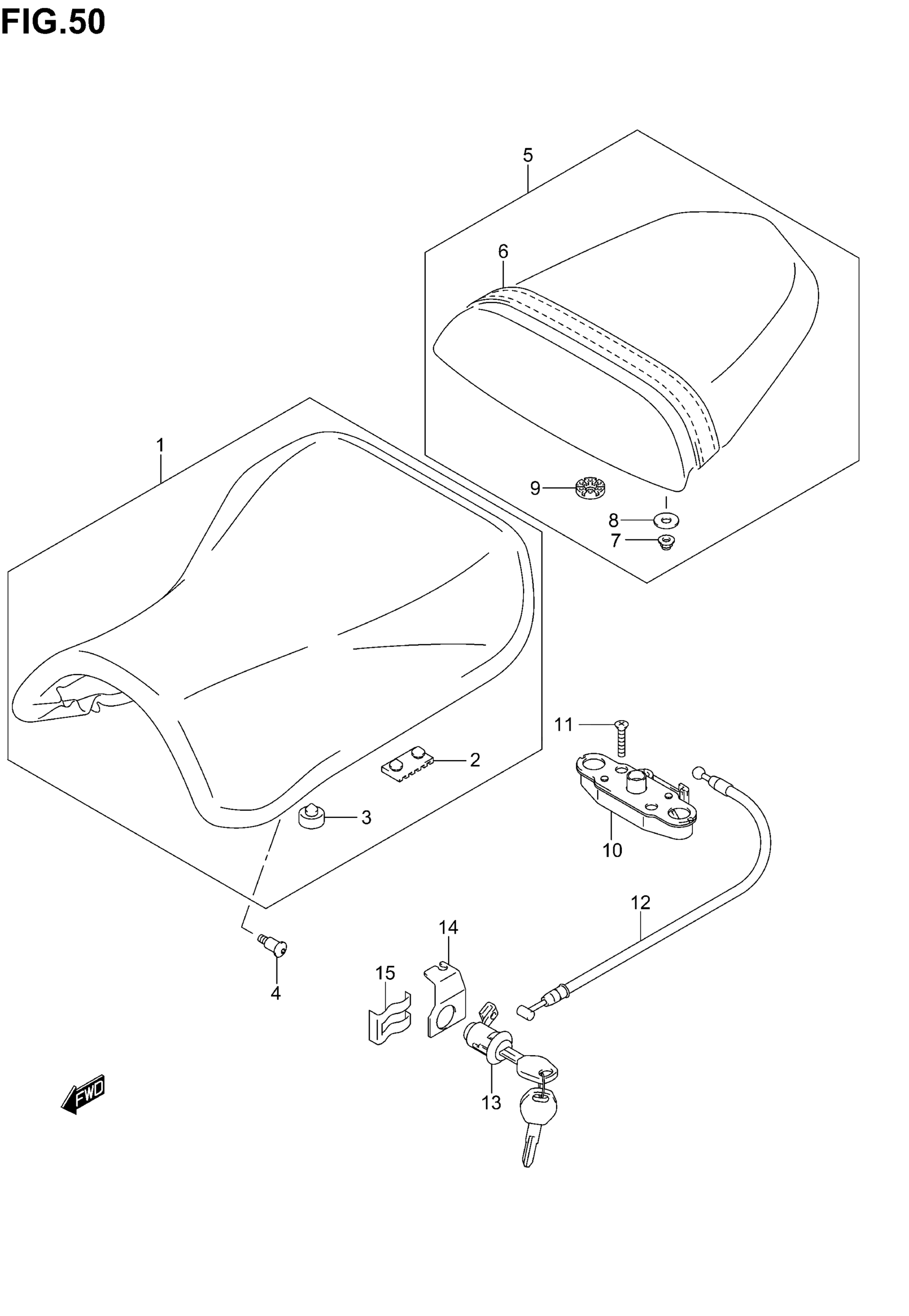

Suzuki GSX-R600 (2005) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-29G00-6BY.

45100-29G01-6BY

Unavailable

2

CUSHION

45149-12C00

$6.63

3

CUSHION

09321-08009

$3.05

4

SCREW, SEAT

09139-06138

$3.25

5

NO DESCRIPTION AVAILABLE | Includes Item(s) 6 - 9 This part replaces 45300-29G00-6BY.

45300-29G01-6BY

Unavailable

6

BAND ASSY, SEAT (BLACK)

45180-29G00-6BY

Unavailable

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

CUSHION

45213-31300

$2.81

10

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

11

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

12

CABLE, SEAT LOCK

45280-13A01

$11.82

13

LOCK ASSY, SEAT

95700-14810

$107.30

14

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

15

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20
