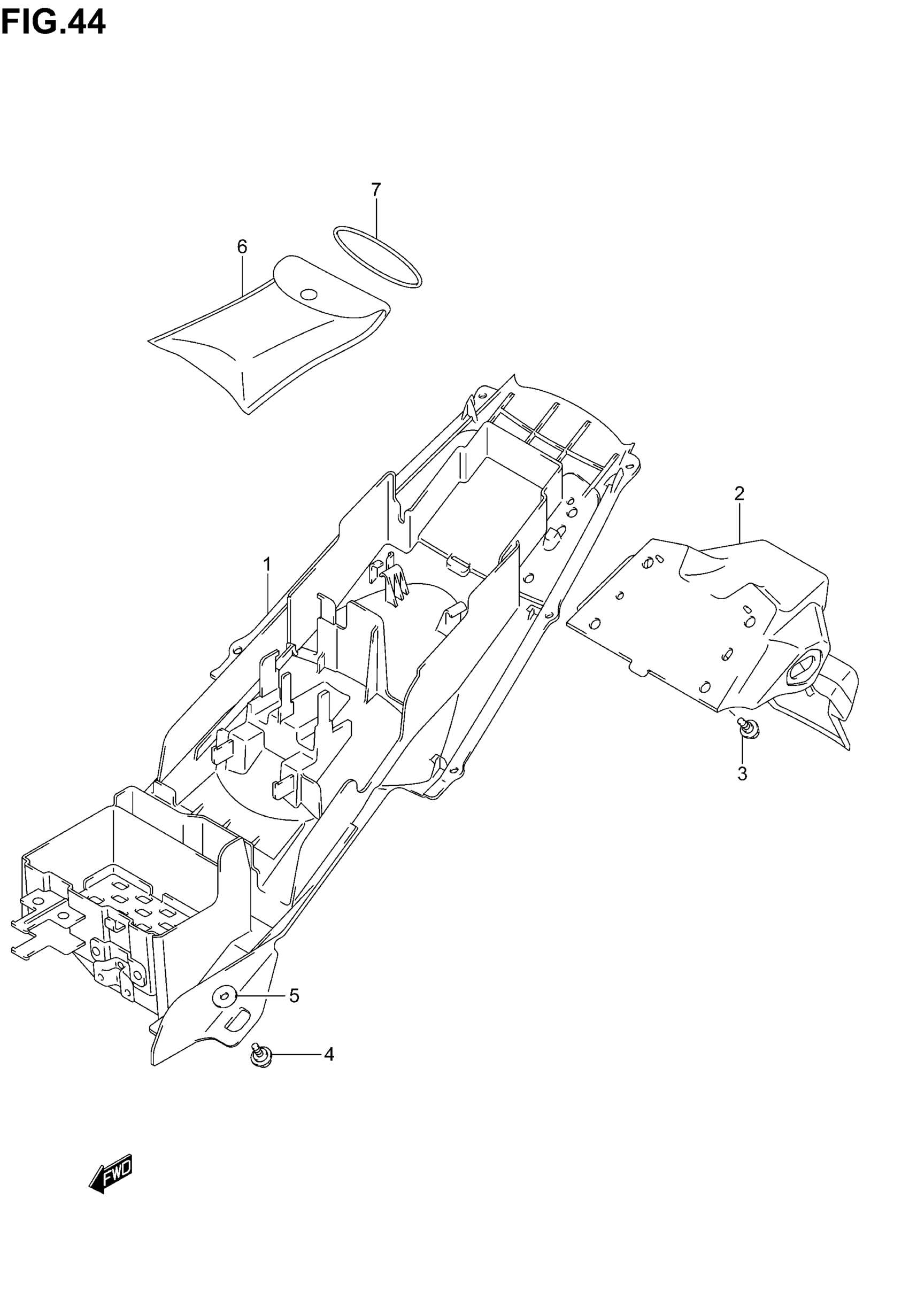

Suzuki GSX-R600 (2005) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR FRONT (BLACK)

63111-29G10-291

$154.83

2

FENDER, REAR (BLACK)

63112-29G10-291

Unavailable

3

BOLT, REAR

09139-06137

$2.61

4

BOLT, FRONT

09111-06081

$4.09

5

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

6

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

7

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60
