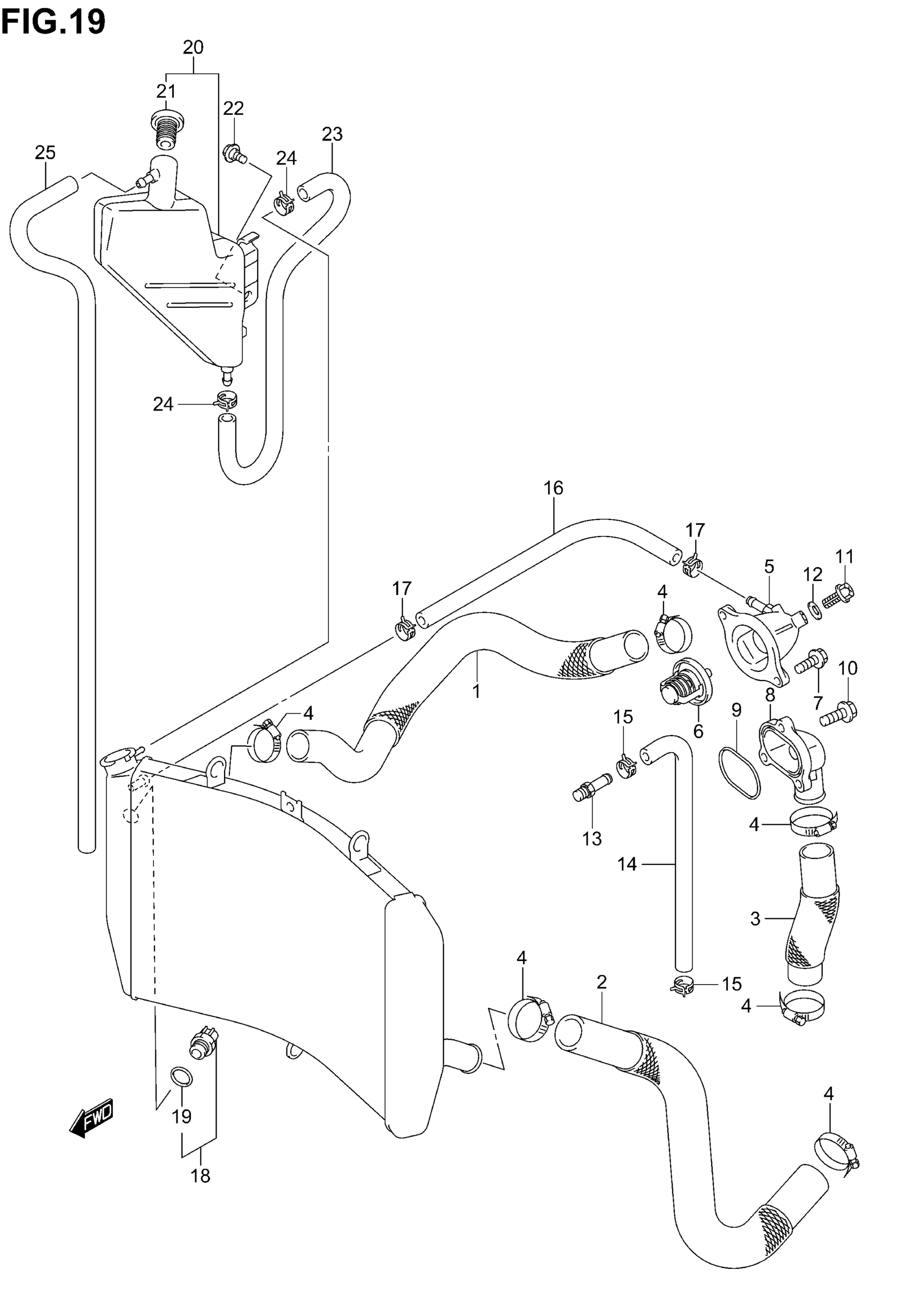

Suzuki GSX-R600 (2005) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-29G00

$55.65

2

HOSE, RADIATOR OUTLET

17852-29G00

$54.07

3

HOSE, CYLINDER INLET

17853-29G00

$32.88

4

CLAMP

09402-38511

$11.67

5

COVER, THERMOSTAT

17661-35F00

$43.10

6

THERMOSTAT,WATE This part replaces 17670-76G10.

17670-65G00

$46.55

7

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

8

CONNECTOR This part replaces 17861-33E10.

17861-33E20

$22.56

9

O RING

17863-33E00

$4.03

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$4.76

12

GASKET, AIR BOLT (6.4X11.5X0.8)

09168-06026

$3.10

13

UNION, BYPASS

09362-09011

$8.28

14

HOSE, WATER BYPASS

17854-35F00

$22.92

15

CLIP This part replaces 09401-12409.

09401-12414

$3.26

16

HOSE, WATER BYPASS NO.2 (5X11X600) | L:600!500

09352-50111-600

$13.78

17

CLIP (ID:10.5,H:8)

09401-10409

$2.26

18

SWITCH,RDTR FAN | Includes Item(s) 19 This part replaces 17680-33E00.

17680-33E01

$48.44

19

O RING

17689-50F00

$2.53

20

TANK ASSY, RESERVOIR | Includes Item(s) 21

17910-29G00

$63.82

21

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

22

SCREW

09111-06085

$4.54

23

HOSE, RESERVOIR TANK INLET

17981-18G00

$13.28

24

CLIP

09401-08411

$1.78

25

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.79
