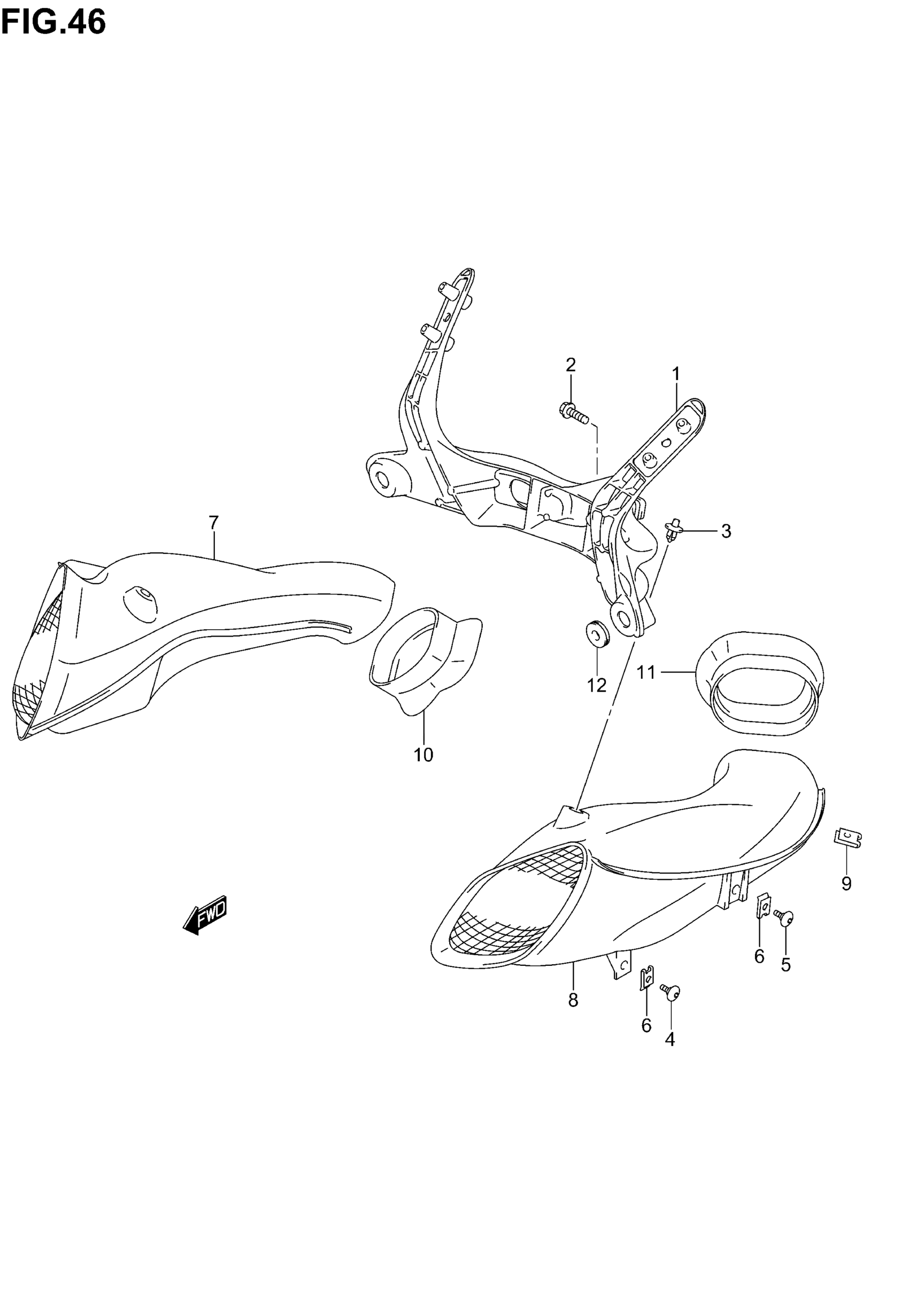

Suzuki GSX-R600 (2005) INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE,COWLING This part replaces 94511-29G01.

94511-29G03

$325.98

2

BOLT This part replaces 01550-08253.

01550-0825A

$2.31

3

CLIP (BLACK)

09409-08308-5ES

$1.97

4

SCREW, FRONT

09139-05064

$2.56

5

SCREW, REAR

09139-05077

$2.97

6

NUT COWL

94484-24F00

$3.63

7

PIPE, AIR INTAKE RH

94402-29G00

$127.13

8

PIPE, AIR INTAKE LH

94403-29G00

$127.13

9

NUT COWL

94484-24F00

$3.63

10

MOLDING, RH

94423-29G00

$26.19

11

MOLDING, LH

94433-29G00

$36.72

12

CUSHION

09320-08028

$2.80
