Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 6

35100-29G30-999

Unavailable

2

COVER, SOCKET

35179-64G00

$12.39

3

ADAPTER ASSY

34175-33E50

$18.50

4

CUSHION This part replaces 09320-07010.

09320-07019

$3.63

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

6

TUBE ASSY

35165-33E00

$20.95

7

BULB (12V60/55W)

09471-12182

$77.08

8

BULB (12V55W H7) | PURCHASE LOCALLY

09471-12188

$22.60

9

SCREW, HEADLAMP

09136-05062

$2.19

10

REFLEX REFLECTOR ASSY, FR

35950-14A00

$16.94

11

BOLT

09119-06104

$14.43

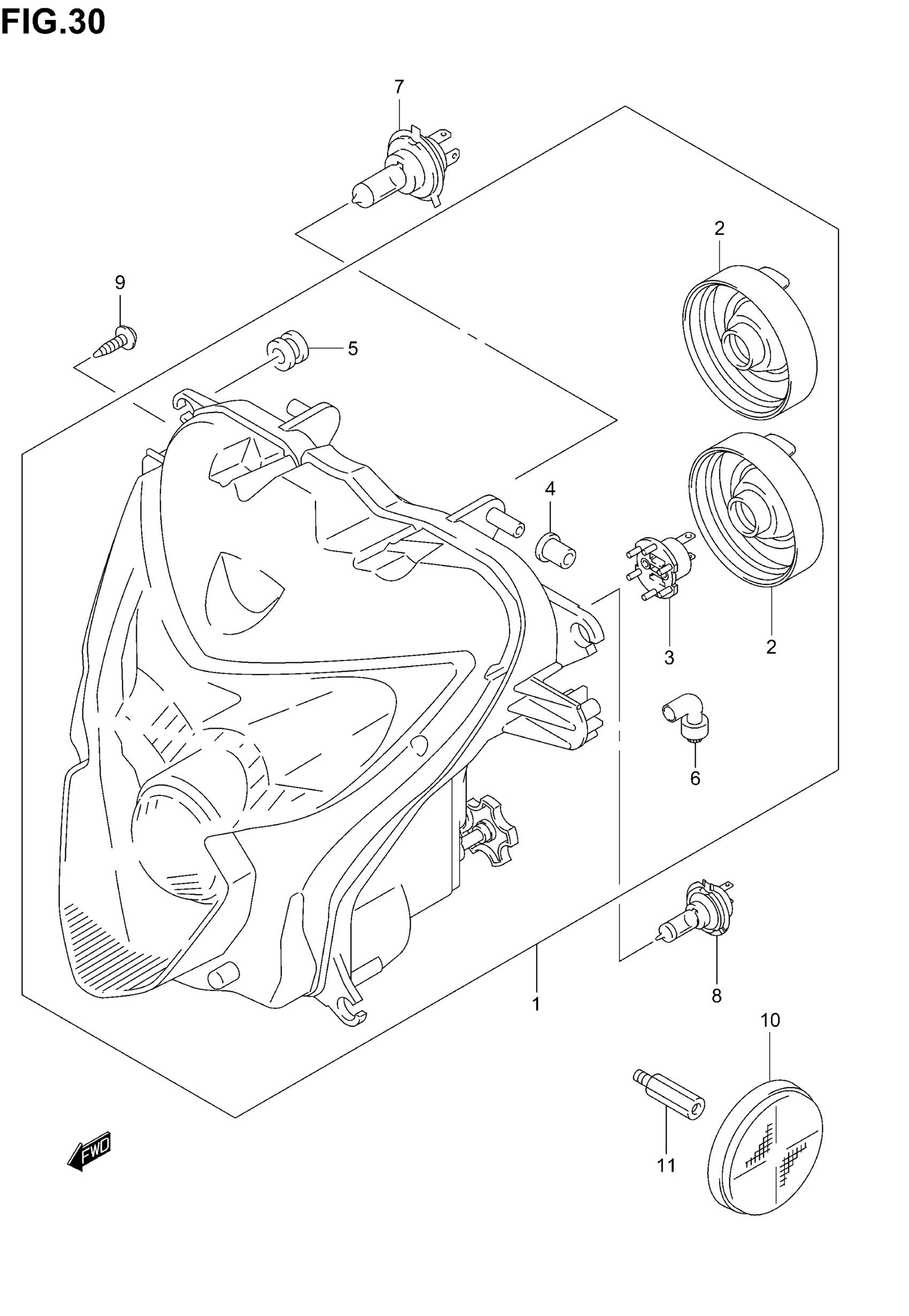

Suzuki GSX-R600 (2005) HEADLAMP Diagram
