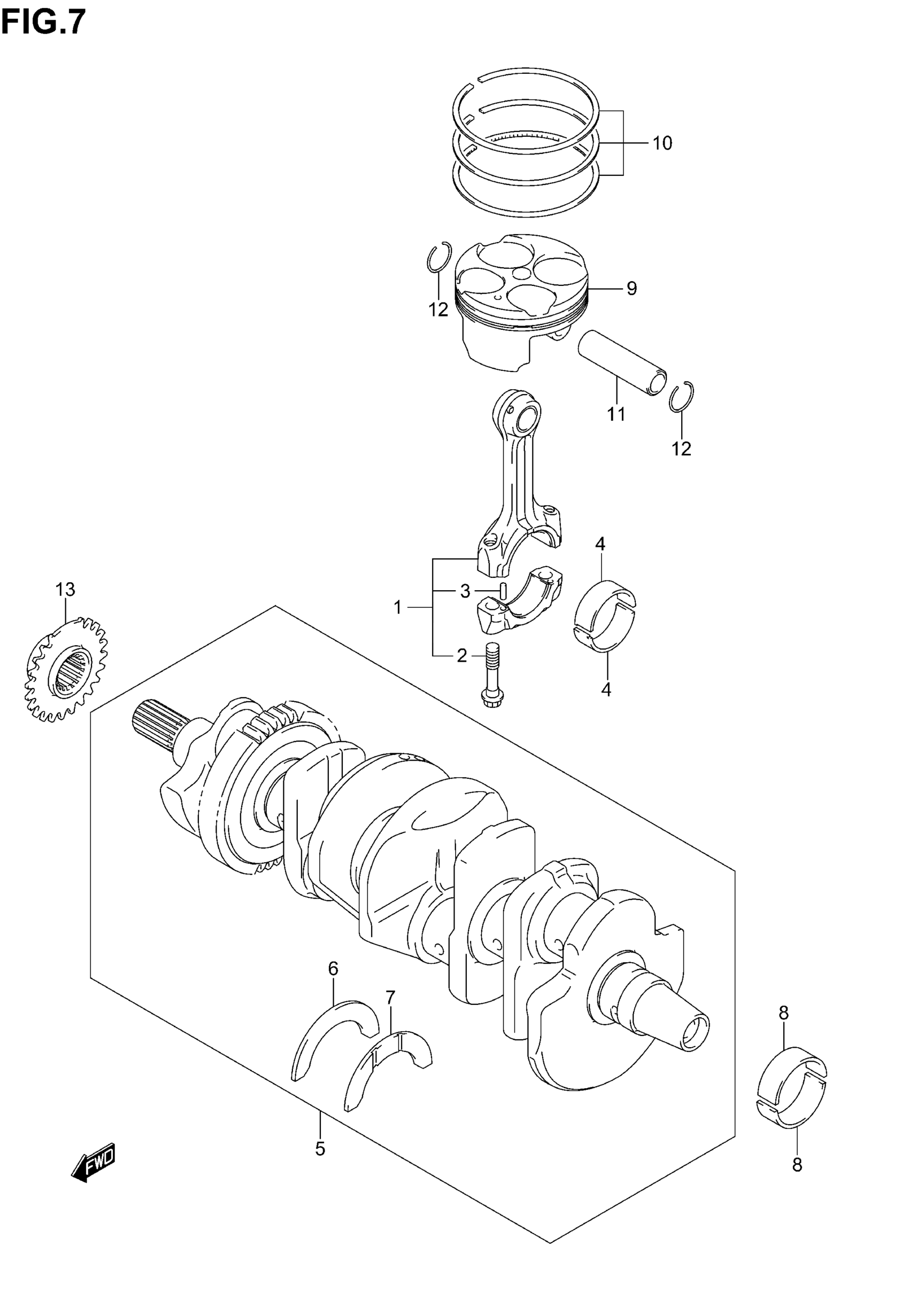

Suzuki GSX-R600 (2005) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-30G00

Unavailable

2

BOLT

12163-35F00

$10.23

3

PIN

12165-27A50

$1.54

4

BEARING,CRANK PIN

12164-30G00-0A0

$17.90

4

BEARING,CRANK PIN

12164-30G00-0B0

$15.23

4

BEARING,CRANK PIN

12164-30G00-0C0

$14.65

4

BEARING,CRANK PIN

12164-30G00-0D0

$18.25

5

CRANKSHAFT SET | Includes Item(s) 6 - 7 This part replaces 12000-30810.

12000-30820

Unavailable

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING, CRANKSHAFT (GREEN)

12229-30G00-0A0

$23.07

8

BEARING, CRANKSHAFT (BLACK)

12229-30G00-0B0

$22.65

8

BEARING, CRANKSHAFT (BROWN)

12229-30G00-0C0

$17.17

8

BEARING, CRANKSHAFT (YELLOW)

12229-30G00-0D0

$23.07

9

PISTON

12111-30G00-0F0

Unavailable

10

RING SET, PISTON

12140-30G00

$69.10

11

PIN, PISTON

12151-35F00

$18.18

12

CIRCLIP

09381-15001

$1.49

13

SPROCKET, CAM CHAIN

12731-29G00

$130.35
