2005 Suzuki GSX-R600 Crankcase Cover Diagram

← All diagrams

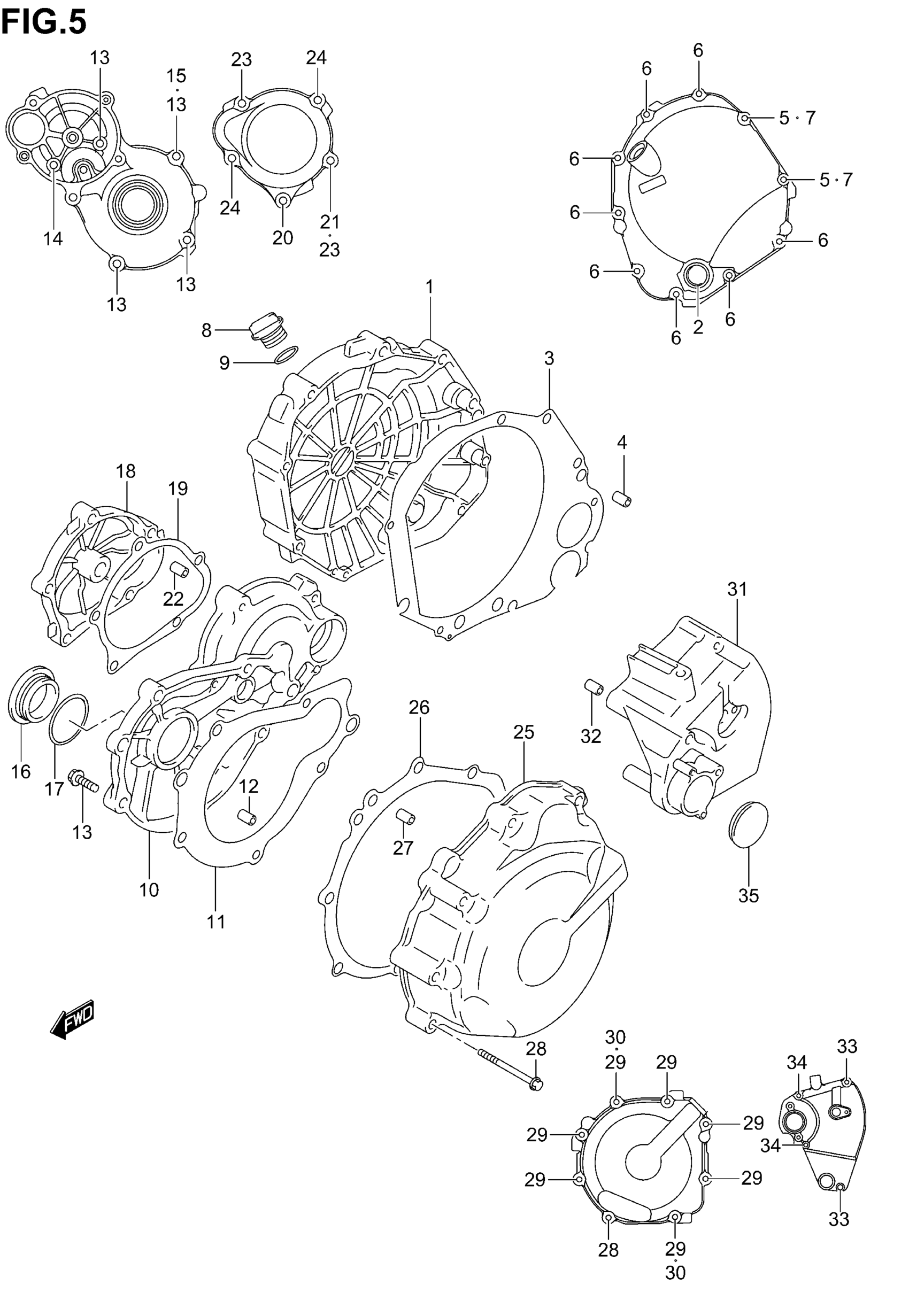

Find the part on the Crankcase Cover diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX-R600 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-35F00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1

$18.15

In stock

4

PIN

04211-09189

2
Out of stock

5

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

6

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

8
Out of stock

7

BOLT This part replaces 01547-06403.

01547-0640B

2
Out of stock

8

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

9

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

10

COVER, STARTER CLUTCH

11381-35F01

1
Out of stock

11

GASKET

11491-33E02

1

$8.70

In stock

12

PIN

04211-09149

2
Out of stock

13

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

4
Out of stock

14

1

$2.92

In stock

15

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

16

PLUG, SHAFT HOLE

09259-36021

1

$13.37

In stock

17

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

18

1

$100.72

In stock

19

GASKET

11492-33E00

1

$7.20

In stock

20

1

$2.92

In stock

21

GASKET, BOLT (5.8X13X1.2)

09168-06023

1
Out of stock

22

PIN

04211-09149

2
Out of stock

23

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

2
Out of stock

24

2

$2.92

In stock

25

COVER, MAGNETO This part replaces 11351-18G01.

11351-18G10

1
Out of stock

26

GASKET

11483-18G00

1

$11.04

In stock

27

PIN

04211-09149

2
Out of stock

28

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

3
Out of stock

29

5

$2.92

In stock

30

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

31

1

$328.28

In stock

32

PIN

04211-09129

2
Out of stock

33

BOLT This part replaces 01547-06653.

01547-0665B

2
Out of stock

34

.BOLT This part replaces 01547-06953.

01547-0695B

2
Out of stock

35

1

$3.79

In stock
