2005 Suzuki GSX-R600 CAM Chain Diagram

← All diagrams

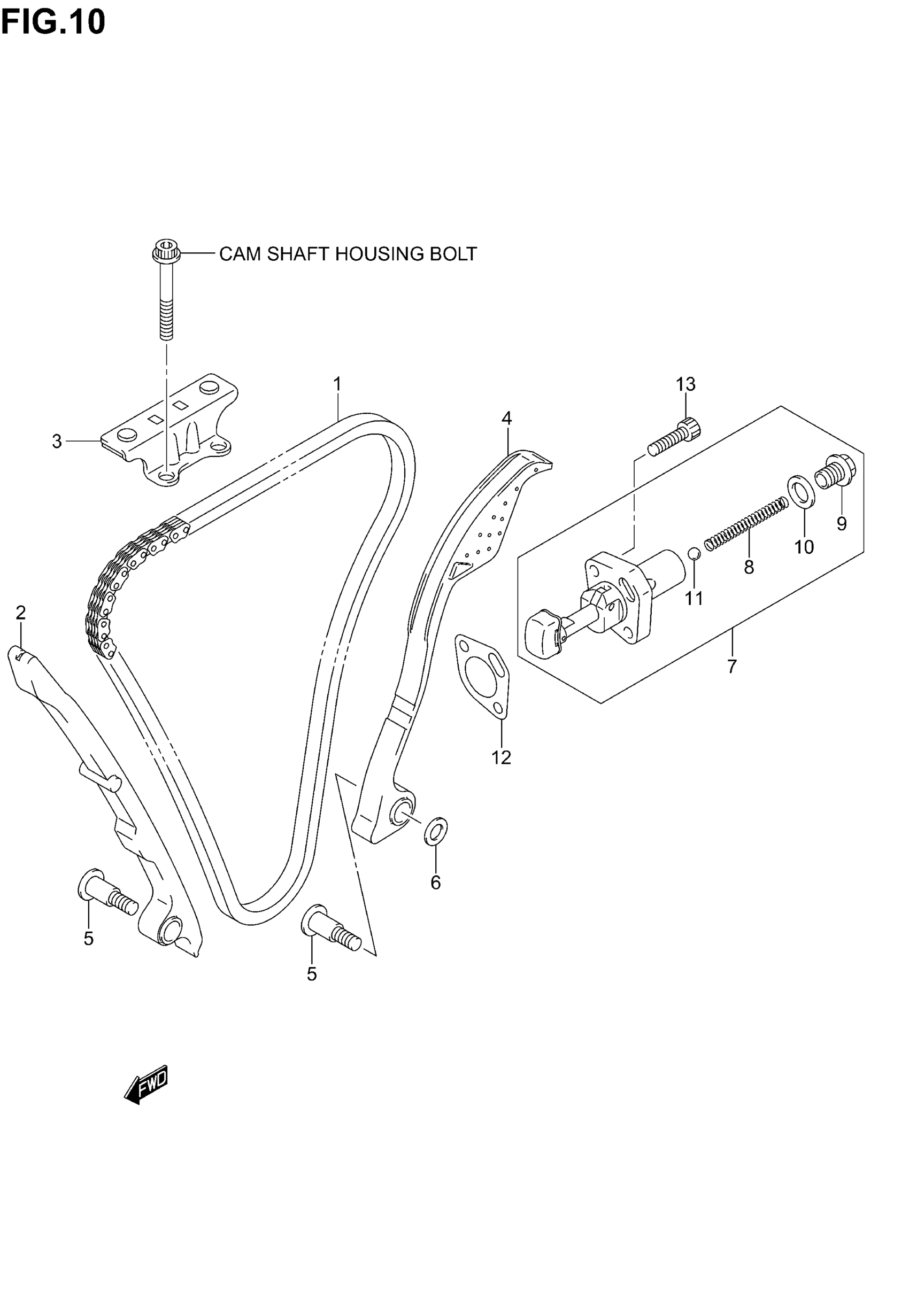

Find the part on the CAM Chain diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX-R600 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-39F00

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-29G00.

12771-29G01

1
Out of stock

3

GUIDE,CAM CHAIN NO.2

12782-29G00

1
Out of stock

4

TENSIONER,CAM C This part replaces 12811-29G00.

12811-29G01

1
Out of stock

5

BOLT

12812-26B02

2
Out of stock

6

WASHER

12813-30G00

1
Out of stock

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 11 This part replaces 12830-29G00.

12830-29G01

1
Out of stock

8

SPRING

12831-35F00

1
Out of stock

9

PLUG

12833-05A00

1
Out of stock

10

GASKET

12837-24F10

1
Out of stock

11

BALL

12839-35F00

1
Out of stock

12

GASKET, ADJUSTER

12837-18G00

1
Out of stock

13

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock
