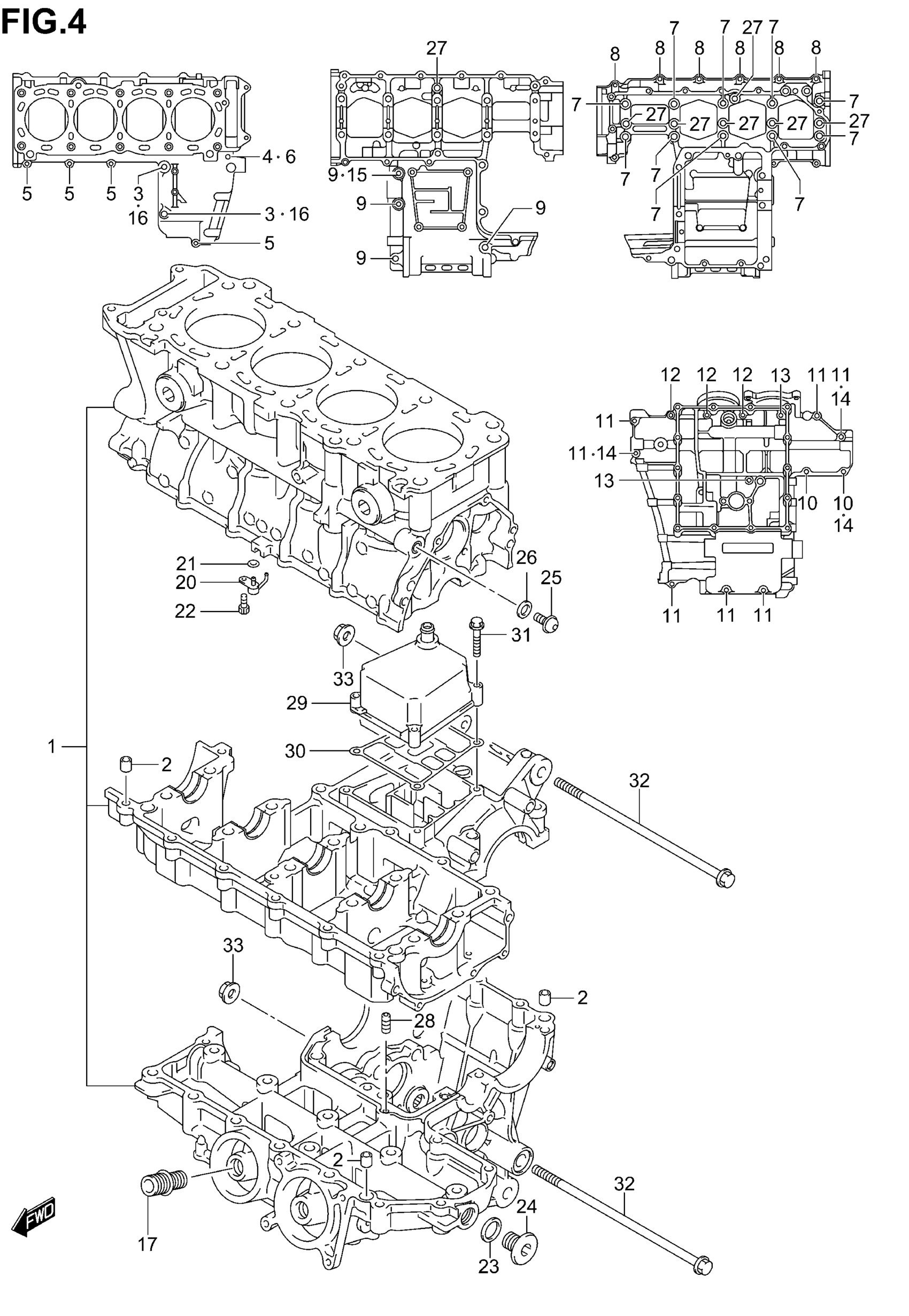

Suzuki GSX-R600 (2005) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K4 This part replaces 11301-29860.

11301-29861

Unavailable

1

CRANKCASE SET | MODEL K5; Includes Item(s) 2 - 19

11301-29861

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT (8X120)

09106-08139

$13.45

4

GASKET (5.8X13X1.2)

09168-06023

$2.35

5

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

6

BOLT This part replaces 01547-06803.

01547-0680B

$3.18

7

BOLT (9X95)

09103-09012

$8.76

8

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

9

BOLT This part replaces 07120-08653.

07120-0865B

$4.68

10

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

11

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

12

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

13

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

GASKET (8.2X14X1)

09168-08016

$1.65

17

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

18

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0D0

$9.50

19

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0A0

$11.38

19

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

19

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

19

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

19

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

19

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

20

JET,PISTON COOLING

11390-35F00

$24.30

21

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

22

BOLT, PISTON COOLING

09106-06075

$2.48

23

GASKET

09168-16002

$1.91

24

PLUG, OIL GALLERY

09248-16013

$4.82

25

PLUG, OIL GALLERY UPPER LH

09248-10010

$4.17

26

GASKET, OIL GALLERY

09168-10002

$2.13

27

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

28

JET

09493-28012

$16.87

29

COVER, BREATHER

11370-35F00

Unavailable

30

GASKET, BREATHER COVER

11484-35F00

$4.94

31

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

32

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

33

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
