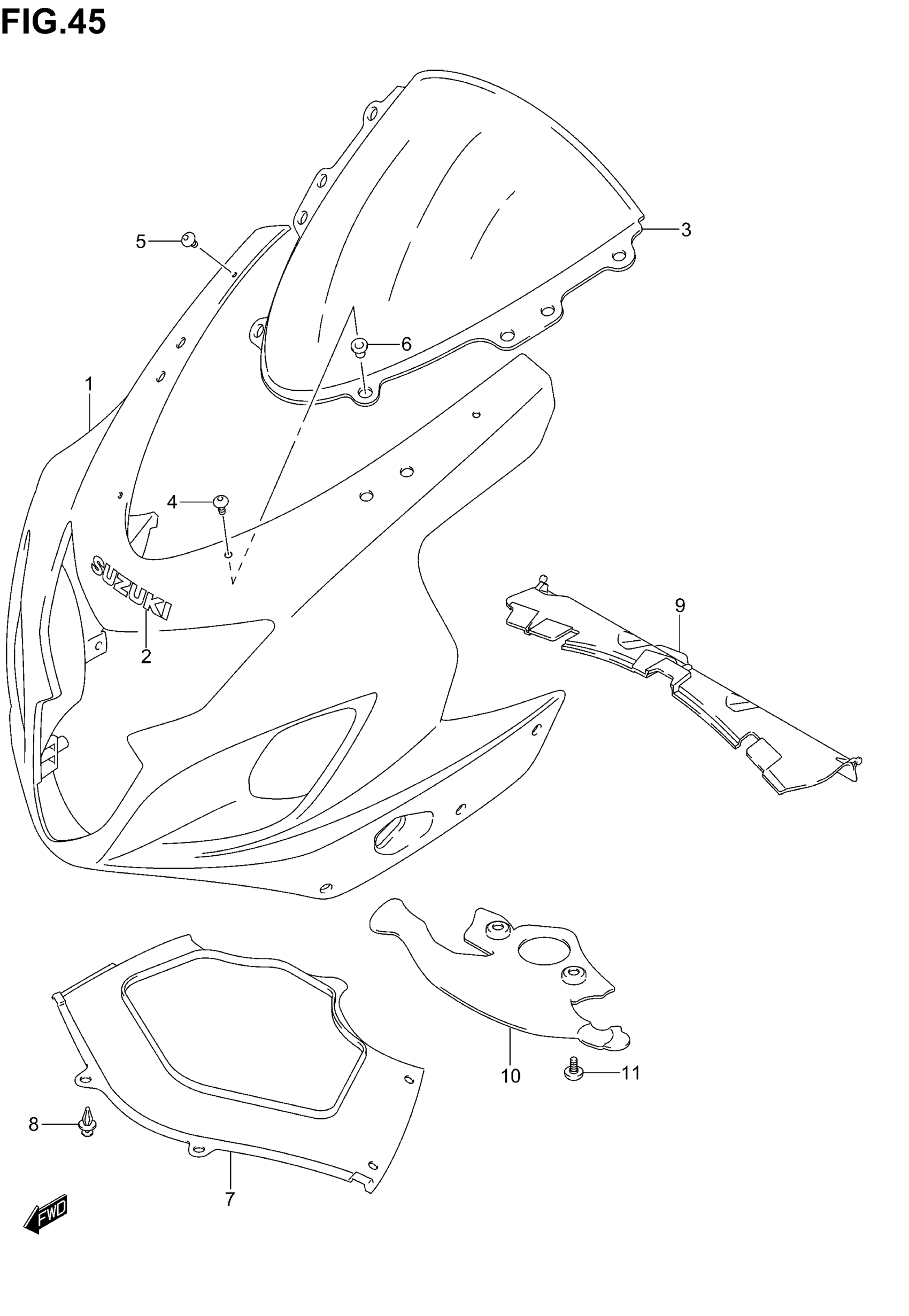

Suzuki GSX-R600 (2005) COWLING BODY Diagram

#

Description
Price

1

COWLING ASSY,BO This part replaces 94401-29G00-YBA.

94401-29G01-YBA

Unavailable

1

COWLING ASSY,BO This part replaces 94401-29G00-YEC.

94401-29G01-YEC

Unavailable

1

COWLING ASSY,BO This part replaces 94401-29G00-019.

94401-29G01-019

Unavailable

1

COWLING, BODY (RED) | MODEL K5; Includes Item(s) 2 - 2

94401-29G00-YU7

Unavailable

2

EMBLEM (BLACK) | FOR YEC,YU7

68281-29G00-019

Unavailable

2

EMBLEM,"SUZUKI" | FOR 019,YBA This part replaces 68281-29G00-YD8.

68281-29G01-YD8

Unavailable

3

WINDSCREEN

94611-29G00

Unavailable

4

SCREW, FRONT

09125-05133

$2.19

5

SCREW, REAR

09125-05134

$2.22

6

NUT

09159-05019

$7.14

7

COVER, BODY COWL This part replaces 94419-29G00.

94419-29G01

$63.47

8

CLIP (BLACK)

09409-06314-5PK

$2.78

9

COVER, COWL FRONT LOWER

94457-29G00

Unavailable

10

COVER, LOWER BRACKET

94458-29G00

Unavailable

11

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60
