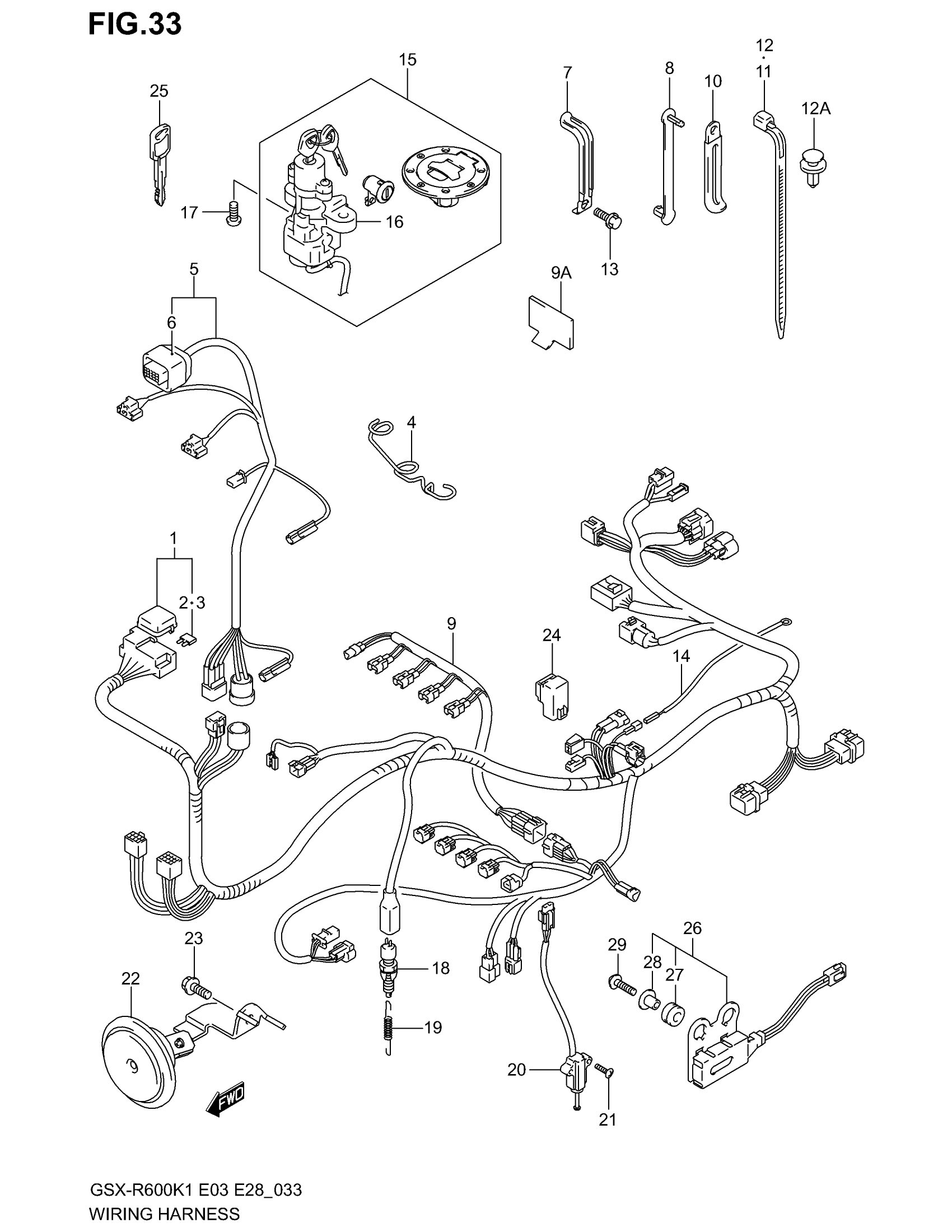

Suzuki GSX-R600 (2003) WIRING HARNESS (MODEL K1) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | %F.NO.12104975

36610-39F10

Unavailable

1

HARNESS, WIRING NO.1 | F.NO.12104976%; Includes Item(s) 2 - 3

36610-39F20

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

GUIDE, WIRING HARNESS

36619-35F00

Unavailable

5

HARNESS, WIRING NO.2 | %F.NO.12104975

36620-35F20

Unavailable

5

HARNESS, WIRING NO.2 | F.NO.12104976%; Includes Item(s) 6

36620-35F30

Unavailable

6

COVER, SPEEDOMETER

36618-35F00

$10.07

7

CLAMP This part replaces 36651-35F00.

36651-35F02

Unavailable

8

CLAMP, WIRING HARNESS

36651-48E00

$3.25

9

WIRE, INJECTOR LEAD

36859-39F00

Unavailable

9A

PROTECTOR, WIRING HARNESS

36920-35F00

Unavailable

10

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

10

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

10

CLAMP This part replaces 09404-08207.

09404-08212

$1.50

11

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19

11

CLAMP (L:235)

09407-25401

$4.66

12

CLAMP (L:90)

09407-11402

$1.80

12

CLAMP This part replaces 09407-17401.

09407-17402

$3.93

12A

CLIP

09409-08327

$2.32

13

BOLT This part replaces 01550-05123.

01550-0512B

$2.87

14

WIRE, OIL PRESSURE LEAD

36851-35F00

$16.07

15

LOCK SET This part replaces 37000-35840.

37000-35842

$421.50

15

LOCK SET | E33; Includes Item(s) 16

37000-35850

Unavailable

16

LOCK ASSY,STEER This part replaces 37100-35F20.

37100-35F21

$197.88

17

SCREW

09139-08016

$3.37

18

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

19

SPRING

09443-06042

$3.77

20

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

21

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

22

HORN ASSY

38500-35F10

Unavailable

23

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

24

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

25

KEY, BLANK | OPT

37146-33E00

$21.21

26

RESISTOR ASSY | Includes Item(s) 27 - 28 This part replaces 36510-39F00.

36510-39F01

$72.30

27

CUSHION

09320-10015

$2.54

28

SPACER (6.5X10X11.6)

09180-06319

$3.85

29

SCREW

09136-06126

$3.15
