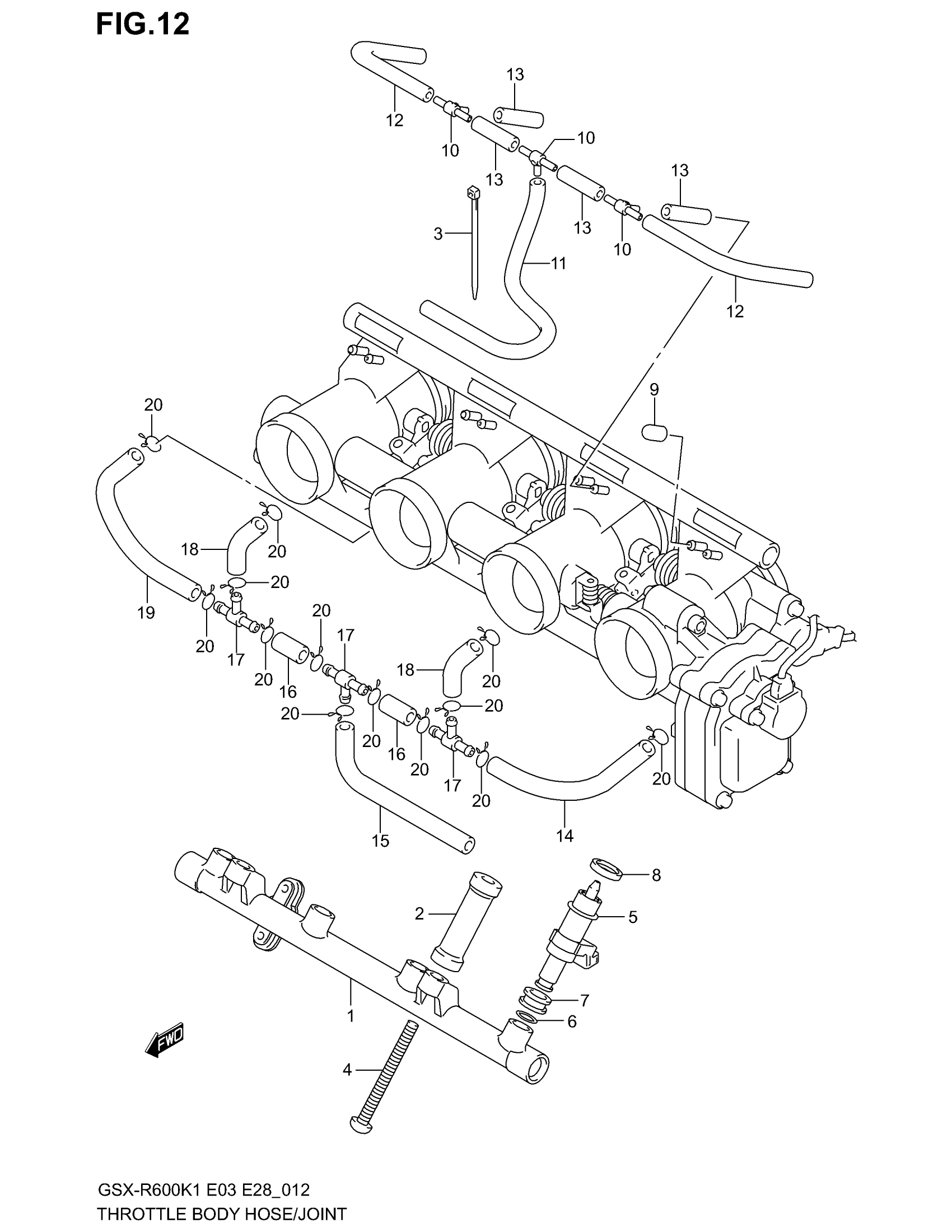

Suzuki GSX-R600 (2003) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DERIVELY PIPE ASSY

15731-39F00

Unavailable

2

PIPE

13582-39F00

Unavailable

3

CLIP

13692-05A20

Unavailable

4

SCREW

13602-39F00

Unavailable

5

INJECTOR ASSY

15710-24F00

$271.91

6

.O-RING

15721-24F00

$9.09

7

RING, CUSHION

15722-24F00

$11.82

8

SEAL RING

13672-24F00

$13.75

9

CAP

13274-84000

$3.82

10

3WAY,VACUUM HOSE

13685-02FA0

$7.05

11

HOSE(3.2X7.4X22 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

12

HOSE(3.2X7.4X22 | L:225!100 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

13

HOSE(3.2X7.4X22 | L:225!35 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

14

HOSE ASSY | E33

13683-39F40

Unavailable

15

HOSE | E33

13683-39F30

Unavailable

16

HOSE | E33 This part replaces 13683-10200.

13683-10201

Unavailable

17

.NIPPLE | E33

13685-48B00

$12.15

18

HOSE | E33

13683-02FC0

Unavailable

19

HOSE ASSY | E33

13683-39F20

Unavailable

20

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49
