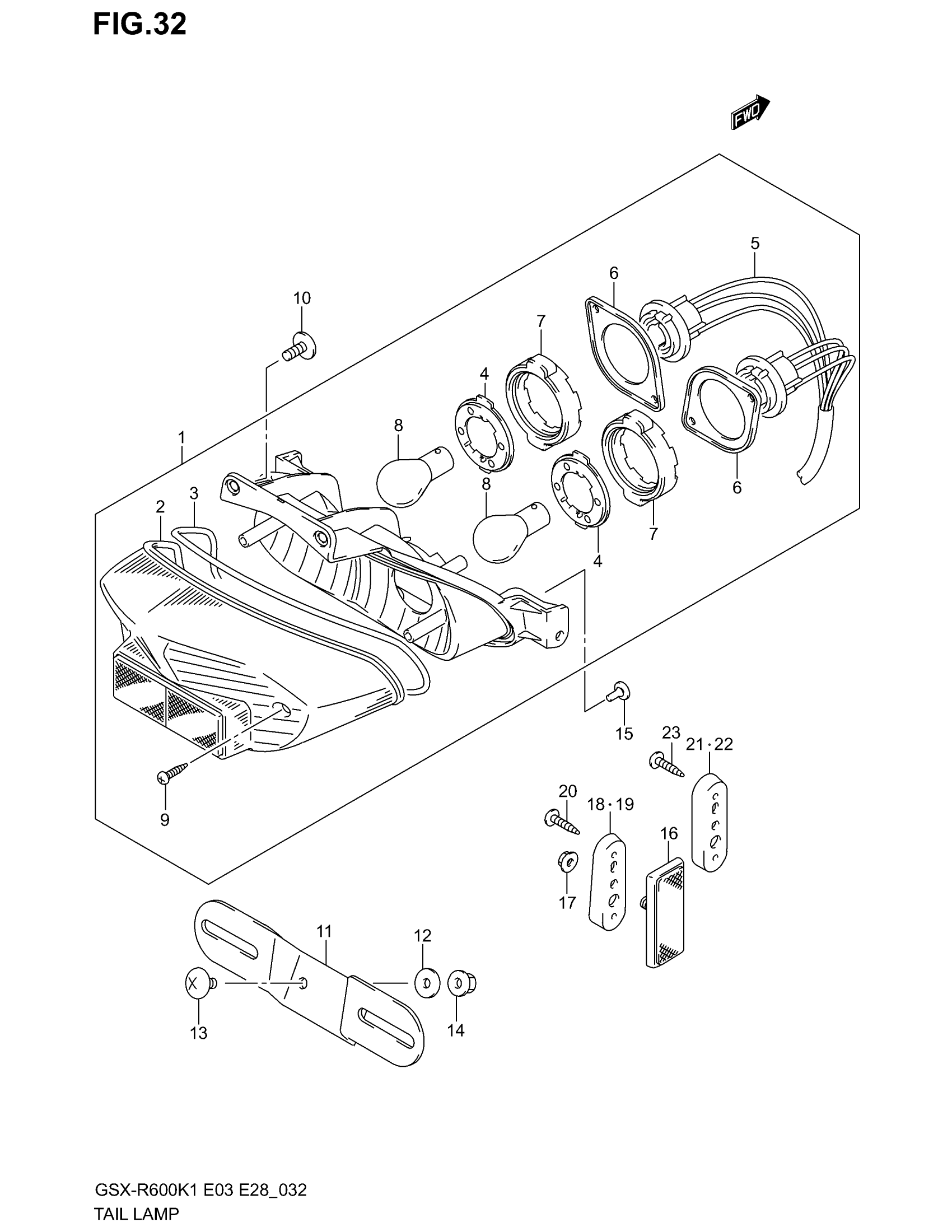

Suzuki GSX-R600 (2003) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-35F31

Unavailable

2

LENS

35712-35F30

$53.73

3

GASKET

35713-35F00

Unavailable

4

PLATE, NO.1

35716-48B21

$20.22

5

SOCKET & CORD

35718-35F00

$64.28

6

PLATE, NO.2

35736-48B21

$21.92

7

CUSHION

35765-48B21

$12.97

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

9

SCREW

03211-04207

$1.49

10

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

11

BRACKET, LICENSE PLATE

35927-35F00

$15.83

12

.WASHER (6.5X20X1.6)

09160-06088

$1.65

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

14

NUT This part replaces 08316-10063.

08316-1006B

$2.50

15

CUSHION

09321-06026

$2.92

16

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

17

NUT This part replaces 08316-10053.

08316-1005A

$2.19

18

BRACKET, REAR SIDE RH | MODEL K1

35978-35F00

Unavailable

19

BRACKET, REAR SIDE LH | MODEL K1

35979-35F00

Unavailable

20

SCREW | MODEL K1 This part replaces 02142-06123.

02142-0612A

$1.49

21

SPACER, REAR SIDE RR RH | MODEL K2/K3

35978-40F00

Unavailable

22

SPACER, REAR SIDE RR LH | MODEL K2/K3

35979-40F00

Unavailable

23

SCREW | MODEL K2/K3 This part replaces 03541-04163.

03541-0416A

$1.49
